19.10.2 Setup method 1 – grind direction from right-to-left
You should select this method of work datum setup if you are grinding a right-hand threaded
workpiece.

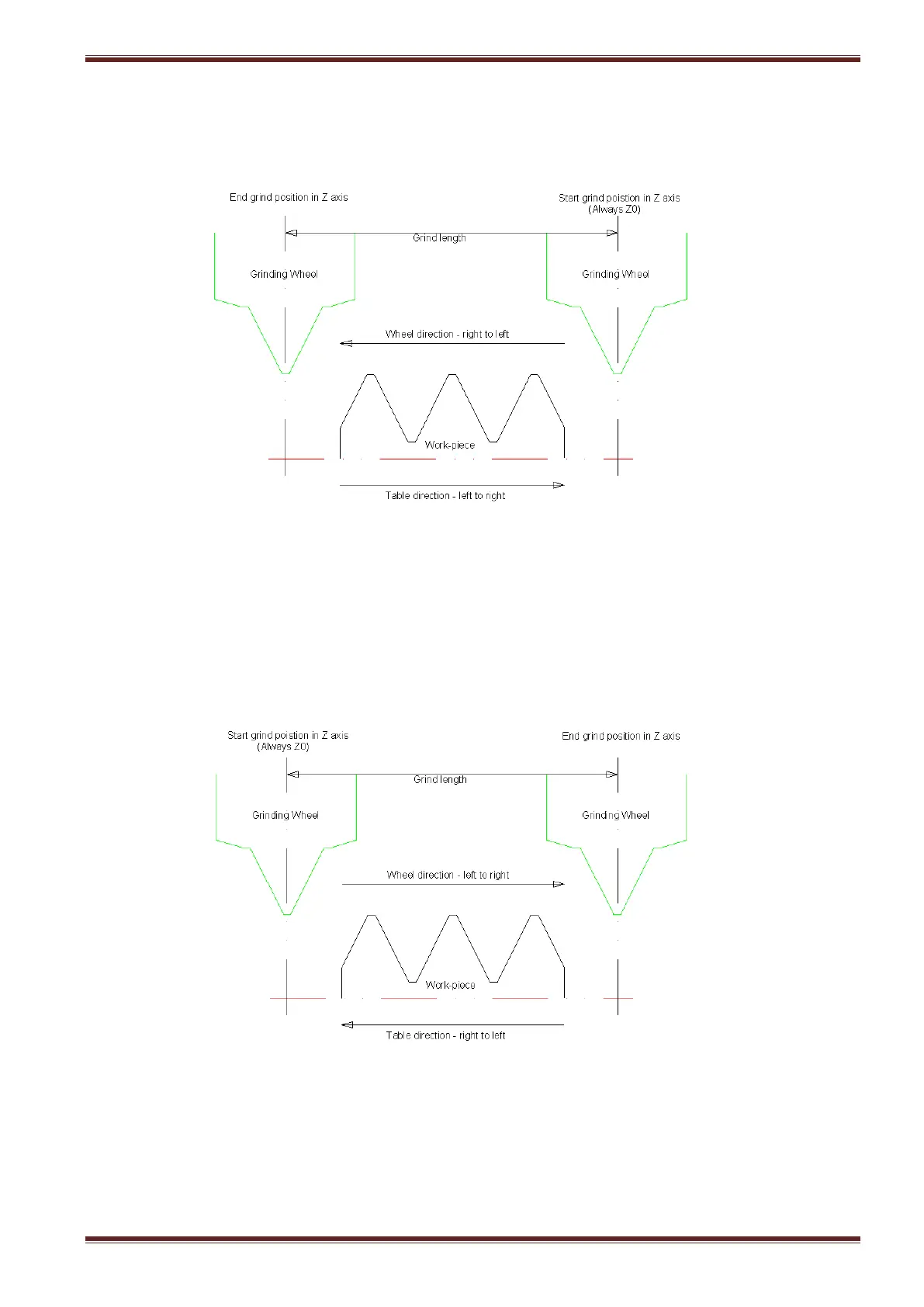

The sketch above illustrates the start and end setting positions of the grinding wheel relative to the
workpiece.
19.10.3 Setup method 2 – grind direction from left-to-right
You should select this method of work datum setup if you are grinding a left-hand threaded
workpiece.
The sketch above illustrates the start and end setting positions of the grinding wheel relative to the
workpiece.
