19.22 Cycle Data - Grind Table
[Menu Select > Matrix > Main Menu > Cycle Data > Grind Data]

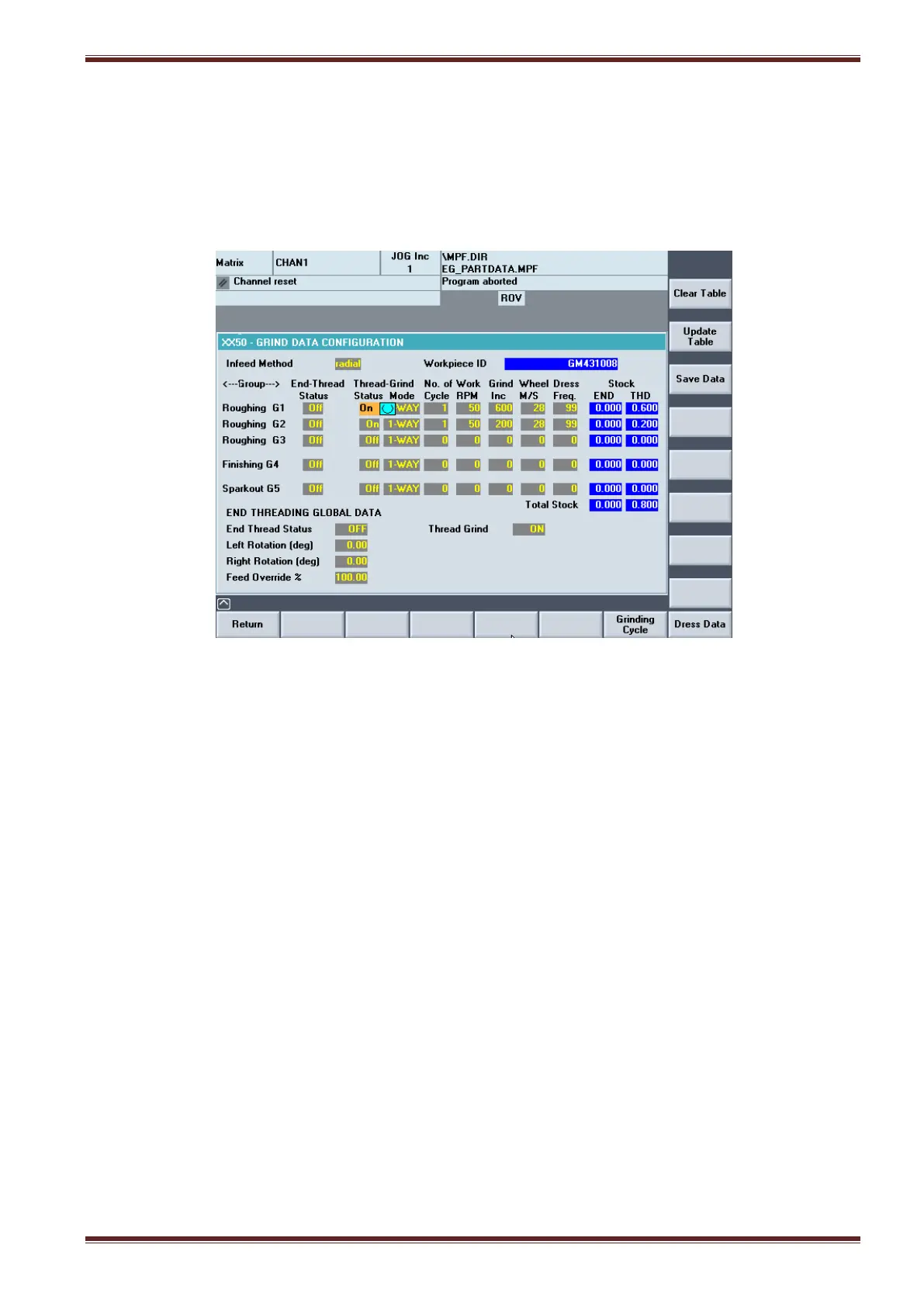

The Grind R variables screen presents you with a data table in which you can enter data to define
how the workpiece is to be ground. The amount of stock to remove per grinding pass and wheel
dressing interval between grinding passes is defined in this screen.
Note: fields with a blue background are READ ONLY
[CLEAR TABLE] Select this softkey to reset all the data table fields to zero.
[UPDATE TABLE] Select this softkey to re-calculate and update the total stock column for each
defined grinding zone
[SAVE DATA] Select this softkey to store the cycle data entries to the active workpiece data
file.
