0850/0850-T1 User Manual
Matrix Machine Tool (Coventry) Limited 130 / 231

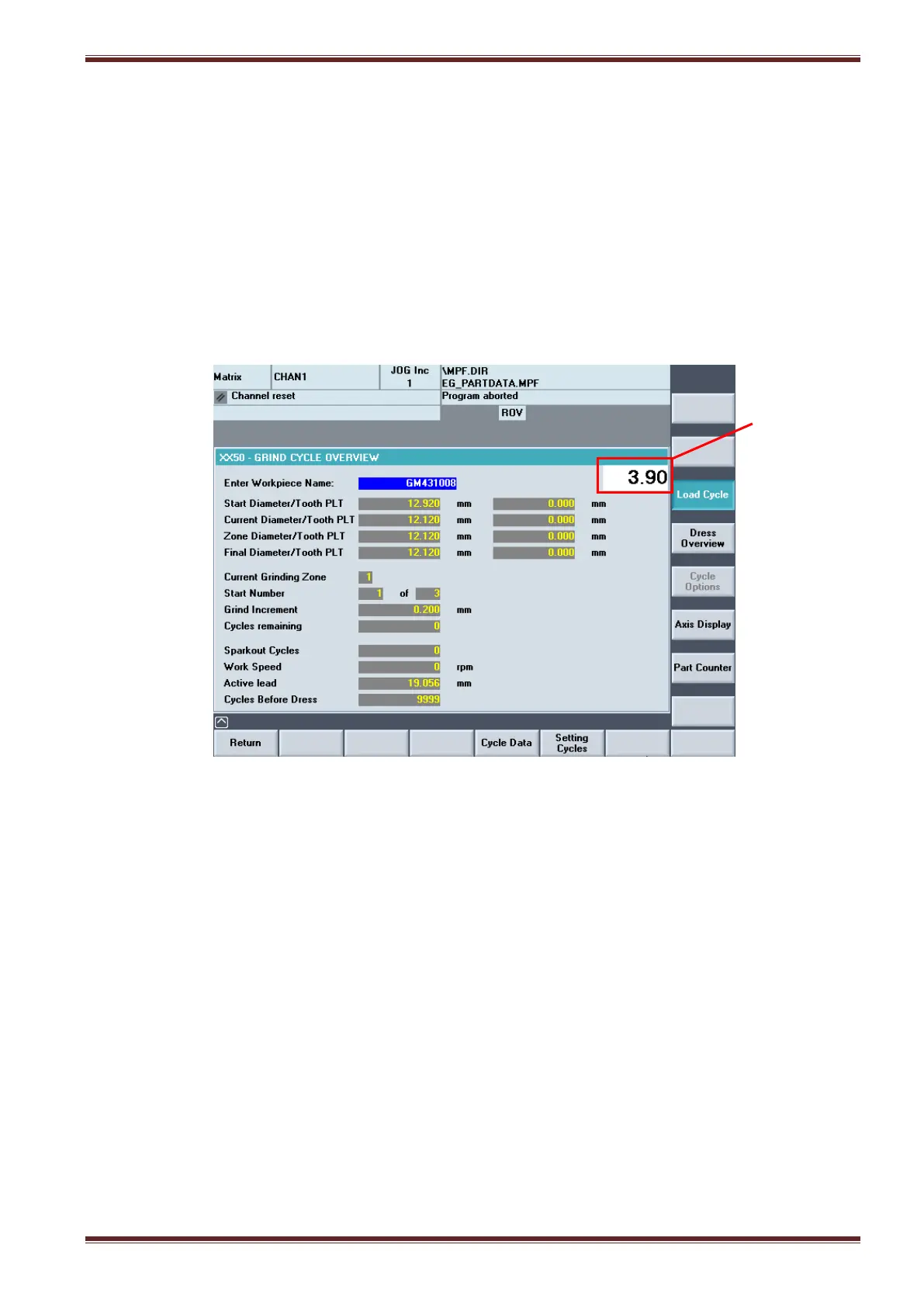

19.6 Grinding Cycle Overview
[Custom > Matrix > Main Menu > Grinding Overview]
This overview screen displays updated information related to the grinding cycle as each grinding
stage (G1 – G5) completes.
With the exception of Cycle Hold and Restart at current diameter, all visible fields are for
information only.
Also, this is the only screen from where you can load the grind cycle by selecting the [Load Cycle]
softkey.
Go to section “Load and Grind” for instructions on what you need to do to run grinding cycle.
Cycle time
display (secs)
