7 Workhead
7.1 Standard Workhead

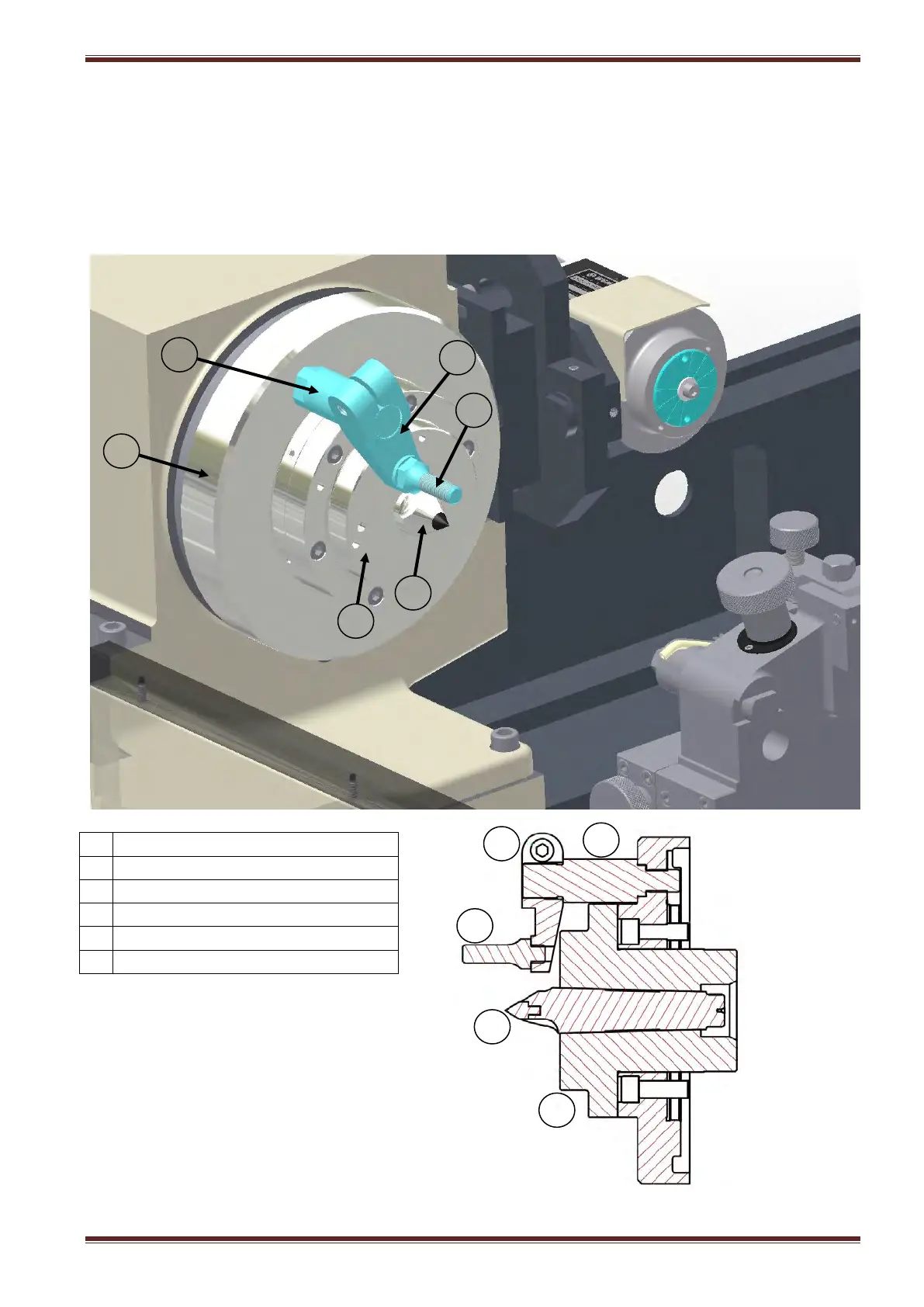

The direct drive 154Nm torque motor driven workhead spindle is supplied with a No.4 MT floating
centre and workpiece driver arm assembly.
1
Splined driving peg
2
Driving arm
3
Driving pin
4
No.4 MT centre with carbide tip
5
Floating centre
6
Floating centre drive plate
1
2
3
4
5
6
3
4
1
2
5
