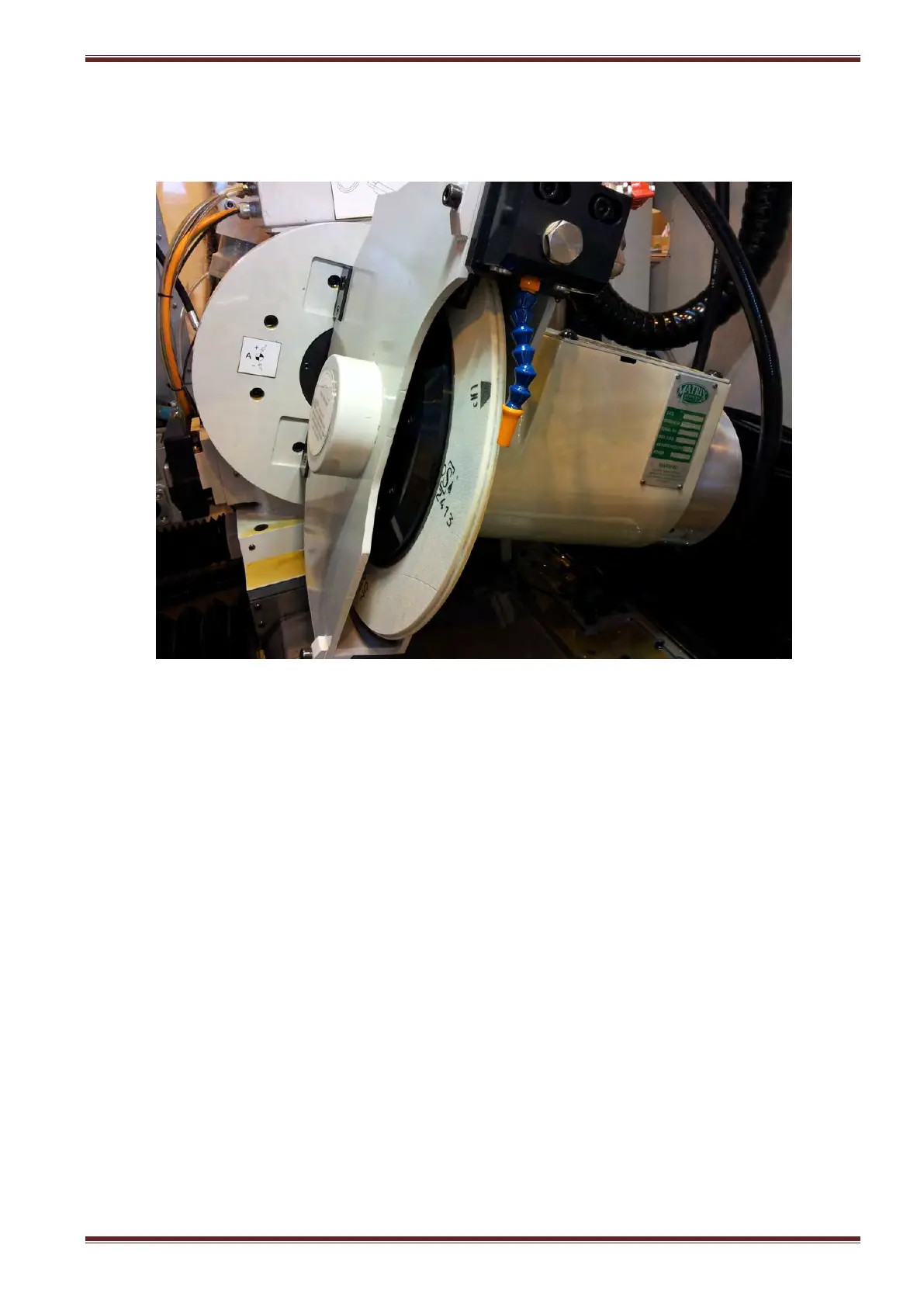

6 Grinding Spindle
The 8.8kW built-in motor and is supplied from a solid state high frequency inverter drive unit housed
in the electrical control cabinet.
The grinding wheel guard has been designed and manufactured in accordance with the safety
requirements for the stationary grinding machinery standard (ref: EN13218).
Mounted directly above the grinding and to the fixed part of the wheel guard is the coolant oil
manifold block into which can accept upto 3 flexible coolant nozzles.
Spindle Chiller System
The machine is supplied with a HF spindle chiller system as standard.
