0850/0850-T1 User Manual
Matrix Machine Tool (Coventry) Limited 36 / 231
Procedure for mounting the single-point diamond holder
1. Remove the expanding collet from the dressing spindle and put it somewhere safe.
2. Locate the single point diamond holder to the backplate and carefully slide it over the
exposed dresser spindle shaft.
3. Secure the holder in place using the 4 x 8mm socket screws provided.
4. Push the single-point diamond into to its location bore ensuring that it also locates to the
machined flat on the holder.
5. Secure the diamond in place by tightening up the grub screw.

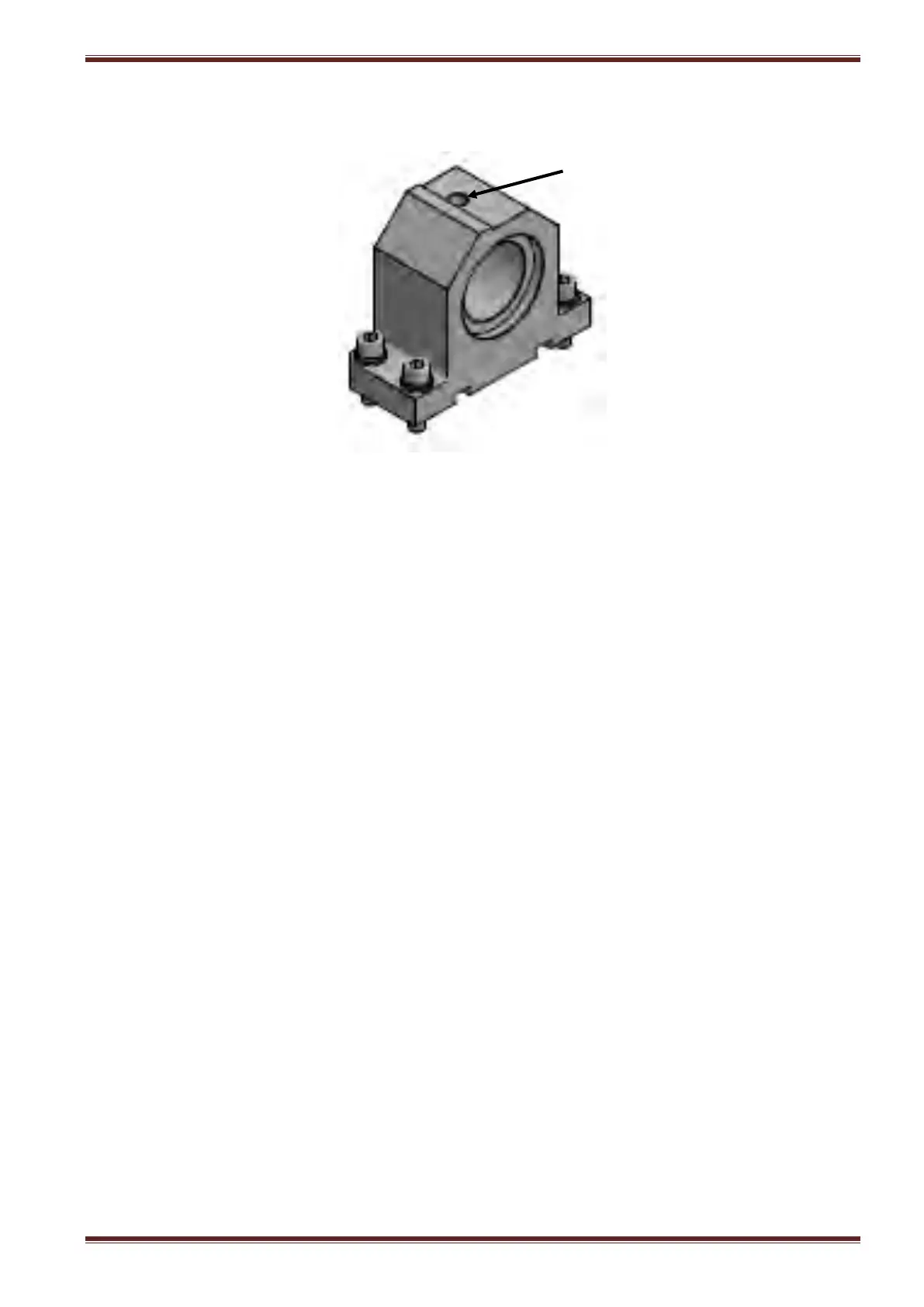

single point diamond location
bore to accept standard size
diamond holder/pen.
