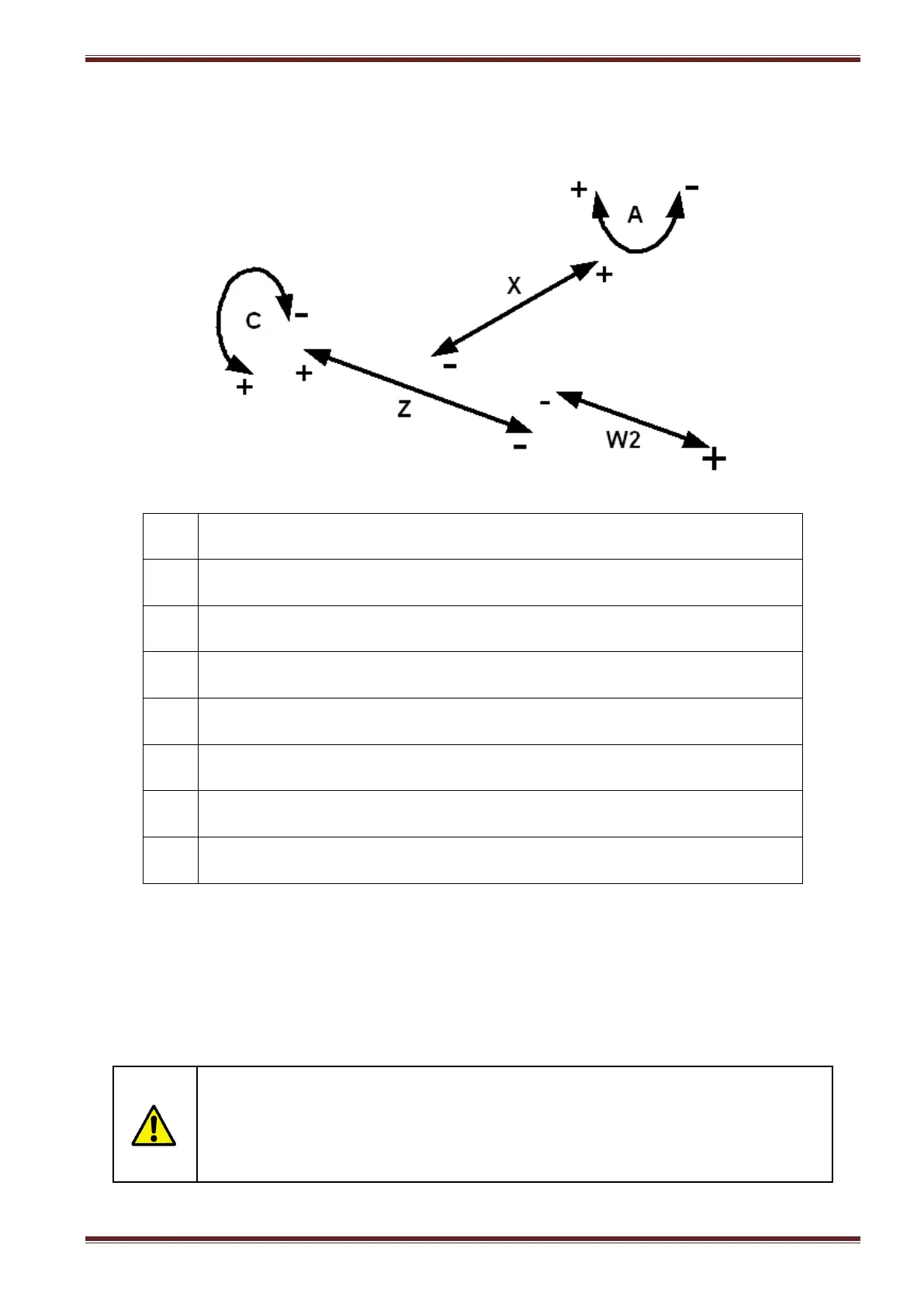

3.2 Axis configuration
Axis
Description
X
Wheelhead linear infeed slide
Z
Wheelhead linear transverse slide
C
Workhead spindle (rotary)
A
Spindle helix (rotary)
W2
Tailstock linear sub-slide (option)
S1
High Frequency grinding spindle
S2
Dressing spindle (mounted to the side of the workhead)
Absolute encoders are fitted as standard to the X, Z, C, A and W2 (option) axes, so there is no need to
reference the machine after power on.
Note:
If the power chuck option is fitted to the machine then it will be necessary to reference the C axis
because it is fitted with and incremental rotary position encoder.
WARNING
Machine axis zero positions and software travel software limits are factory set
and must NOT be altered otherwise the machine could get damaged and this is
NOT covered by your machine warranty.
