8.2 Fine Adjustment Screws

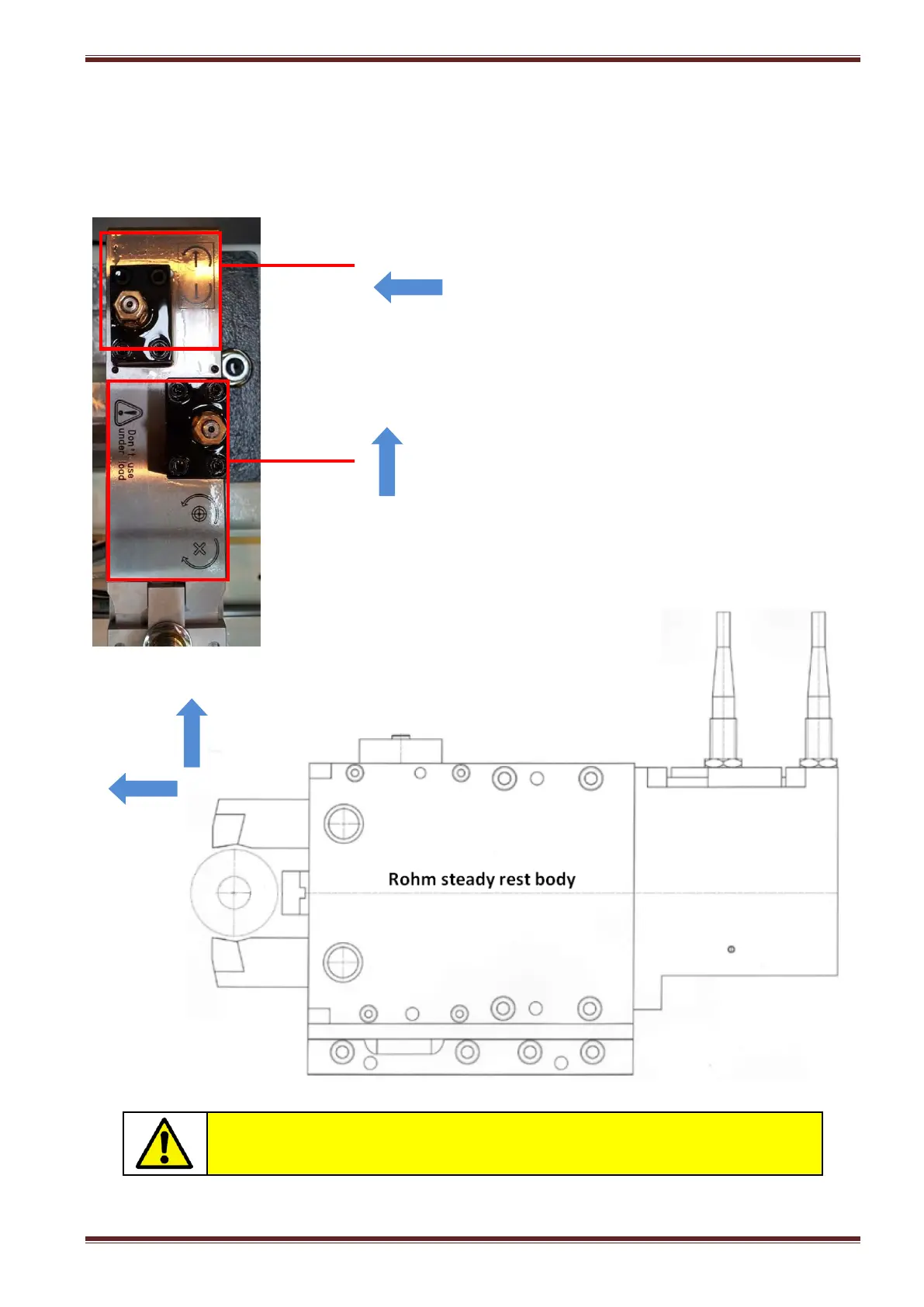

Two screws located at the top of the steady rest body allow you to make a fine micro-adjustment
setting of the centreline of the steady rest arms in relation to the workpiece centreline.
Turn the screw counter-clockwise (CCW) to move steady arms towards the
workpiece. Turn the screw clockwise (CW) to move steady arms away from
the workpiece.
Turn the screw counter-clockwise (CCW) to move the steady arms up. Turn
the screw clockwise (CW) to move steady arms down.
Warning
Never turn the fine adjuster screws when the steady is under load.
Y axis Y axis
X axis
X axis
Y axis
