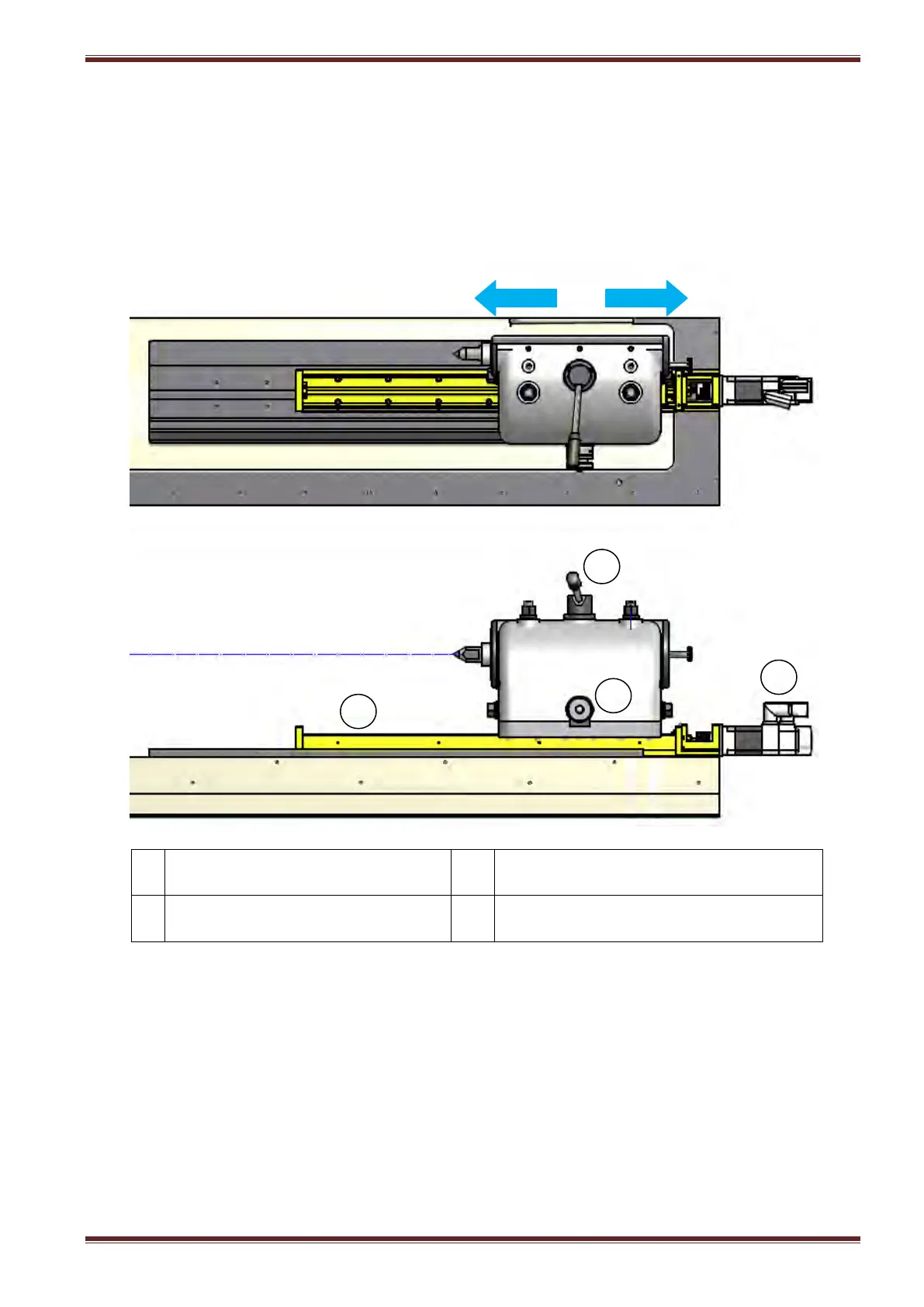

9.3 Travelling Tailstock (option)
The travelling tailstock is a servo controlled version of the standard manual tailstock design. It
features a linear ballscrew actuator sub-slide assembly driven by a servo motor with absolute
position feedback.
The tailstock has traversing of 360mm.
1
Linear sub-slide (W2)
3
Taper adjust wheel
2
Servo motor with absolute
position encoder
4
Tailstock barrel centre
advance/retract lever
4
1
2
3
