Matrix 0850 - Pitch-In to Workpiece with a Pre-Cut Thread; Pitch-In to a Blank or Non-Threaded Workpiece

0850/0850-T1 User Manual
Matrix Machine Tool (Coventry) Limited 152 / 231
Edition: 08/2013

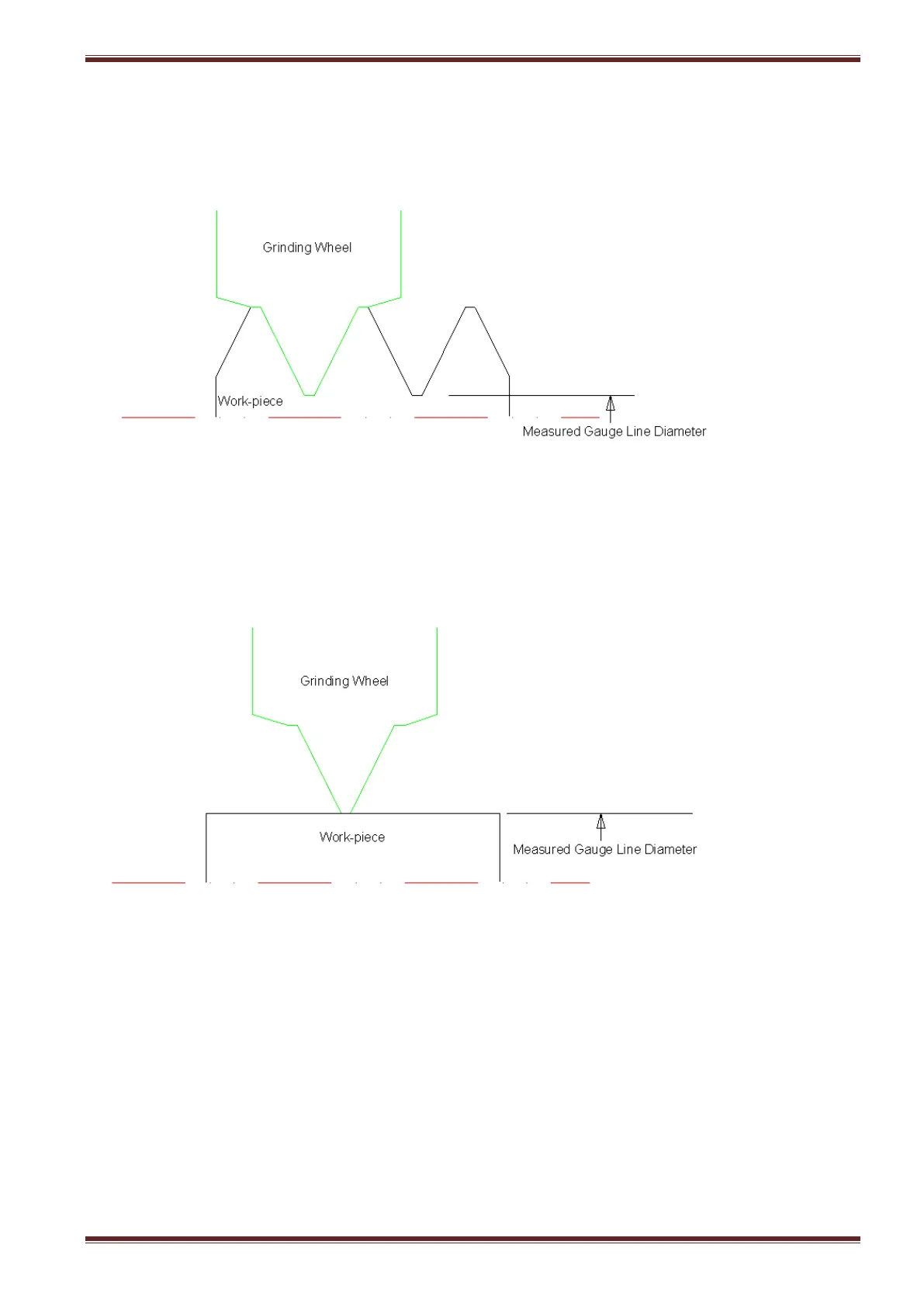

19.13.2 Pitch-in to workpiece with a pre-cut thread
Using the handwheel in X,Z and C, align the formed grinding wheel to the pre-cut component.
19.13.3 Pitch-in to a blank or non-threaded workpiece
Using the handwheel in X,Z and C, align the tip of grinding wheel to OD of the workpiece.
