Matrix 0850 - 14 Standard Coolant System (800 L, Upto 5 Bar Working Pressure)

0850/0850-T1 User Manual
Matrix Machine Tool (Coventry) Limited 75 / 231
Edition: 08/2013
14 Standard coolant system (800L, upto 5bar working pressure)
This type of coolant system is generally suitable for use with conventional types of Aluminium Oxide
grinding wheels. The centrifugal coolant clarification system is supplied complete with refrigeration
unit, magnetic separator and oil level monitoring.
The coolant–clarifier unit is a free standing assembly having two separate tanks. The main tank
capacity is 555 litres and is constructed as a steel weldment with partitions and baffle plates to
separate and manage the coolant movement during the cleaning and preparation process.
The second tank known as the chiller tank is positioned on top of the main tank. This allows transfer
of the cooled oil back into the main tank without using a pump. The returned cool oil mixes with the
existing tank contents as it follows a controlled path to the main pump.

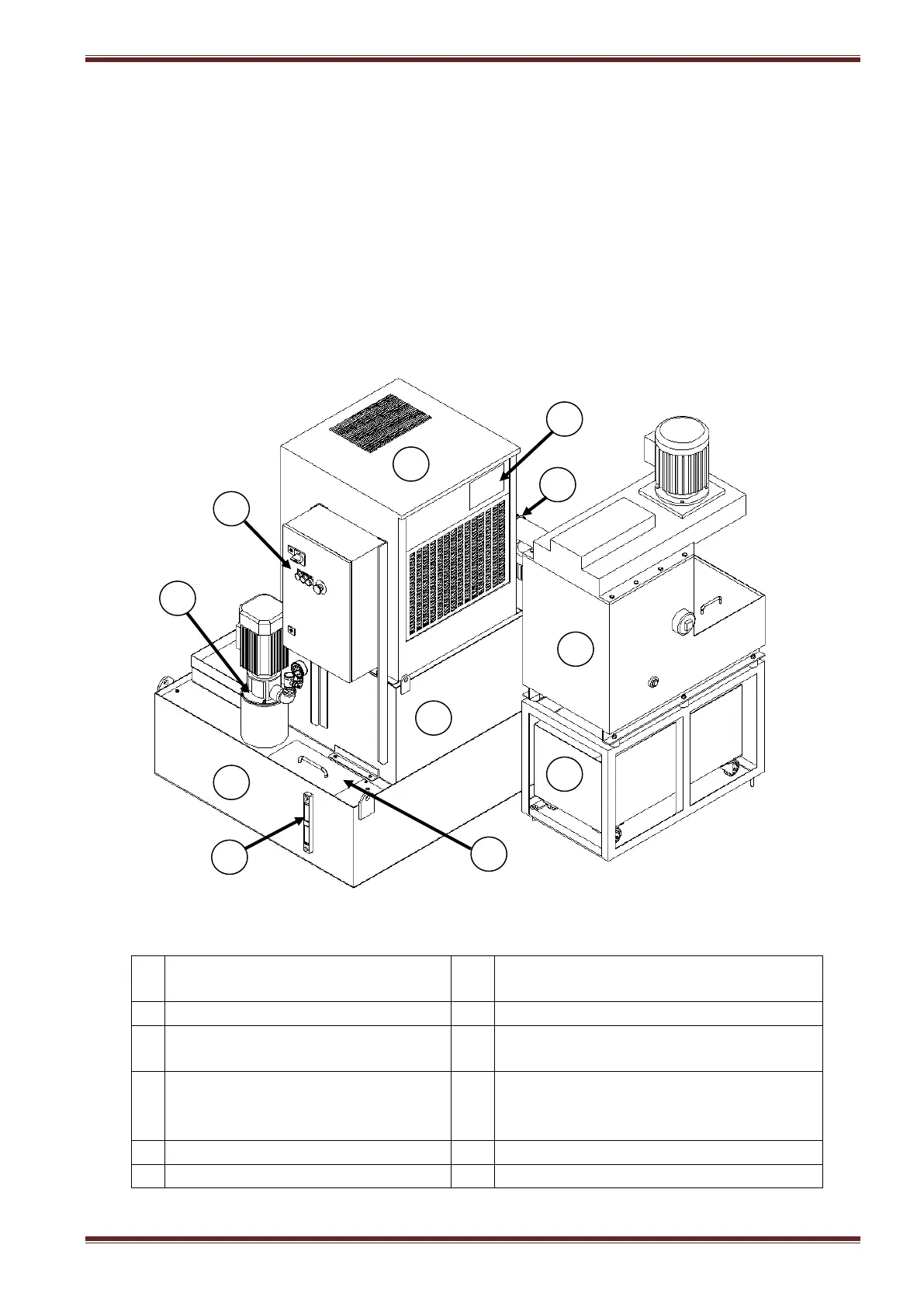

Tank Capacity 800L = Main Tank (555L) + Chiller Tank (245L)
1
Coolant system control panel
7
Centrifuge unit drum debris collection
bin
2
Oil Cooler unit (Habor)
8
Coolant oil filling point
3
Oil cooler control panel
(fixed temp regulation)
4
Main supply pump (max 8bar) to
machine (with pressure gauge +
adjust tap)
9
Main tank, 555L capacity
5
Coolant tank level sight glass
10
Coolant oil chiller tank, 245L capacity
6
Centrifuge unit
11
Magnetic separator
1
3
4
5
6
8
7
9
10
11
2
2
