19.11 Barelling function (option)

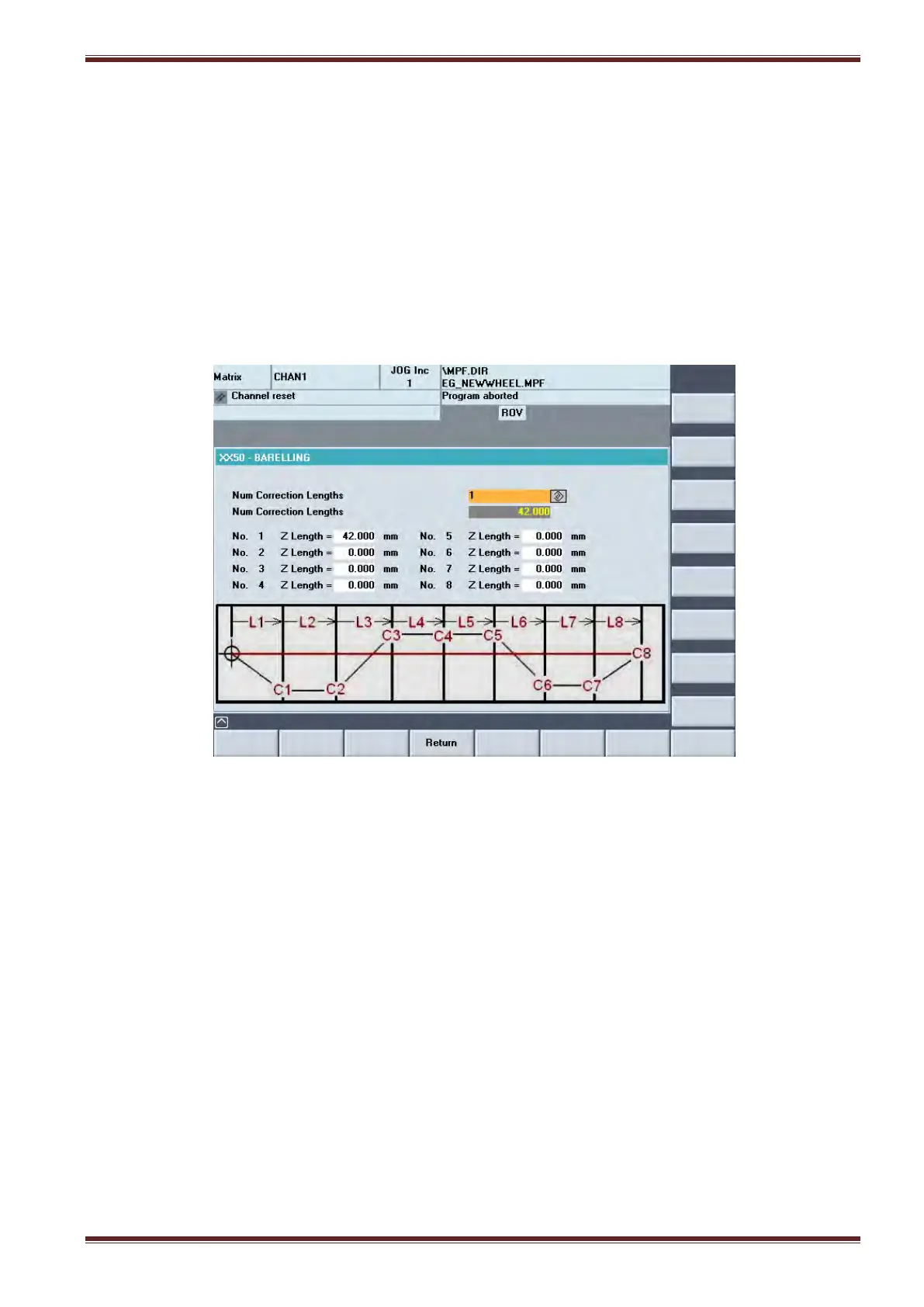

[Custom > Matrix > Main Menu > Setting Cycles > Set Work Datums > Barelling]
With the barrelling function enabled you can apply fine positional adjustments to the grinding wheel
infeed (X) axis at various points along the workpiece length as the grinding wheel moves along it.
This feature can be useful in applications where you may need to compensate for any deviations
within the workpiece geometry along it length or to compensate for deviations at a work support
steady if fitted to the work table.
The barrelling function is accessed from the Work Datum setting cycle screen.
Upto 8 corrections points can be defined C1 to C8 and the compensation datum is always based from
the workhead side because this is a fixed datum point of the machine table.
