19.18.1 Explanation of input parameters

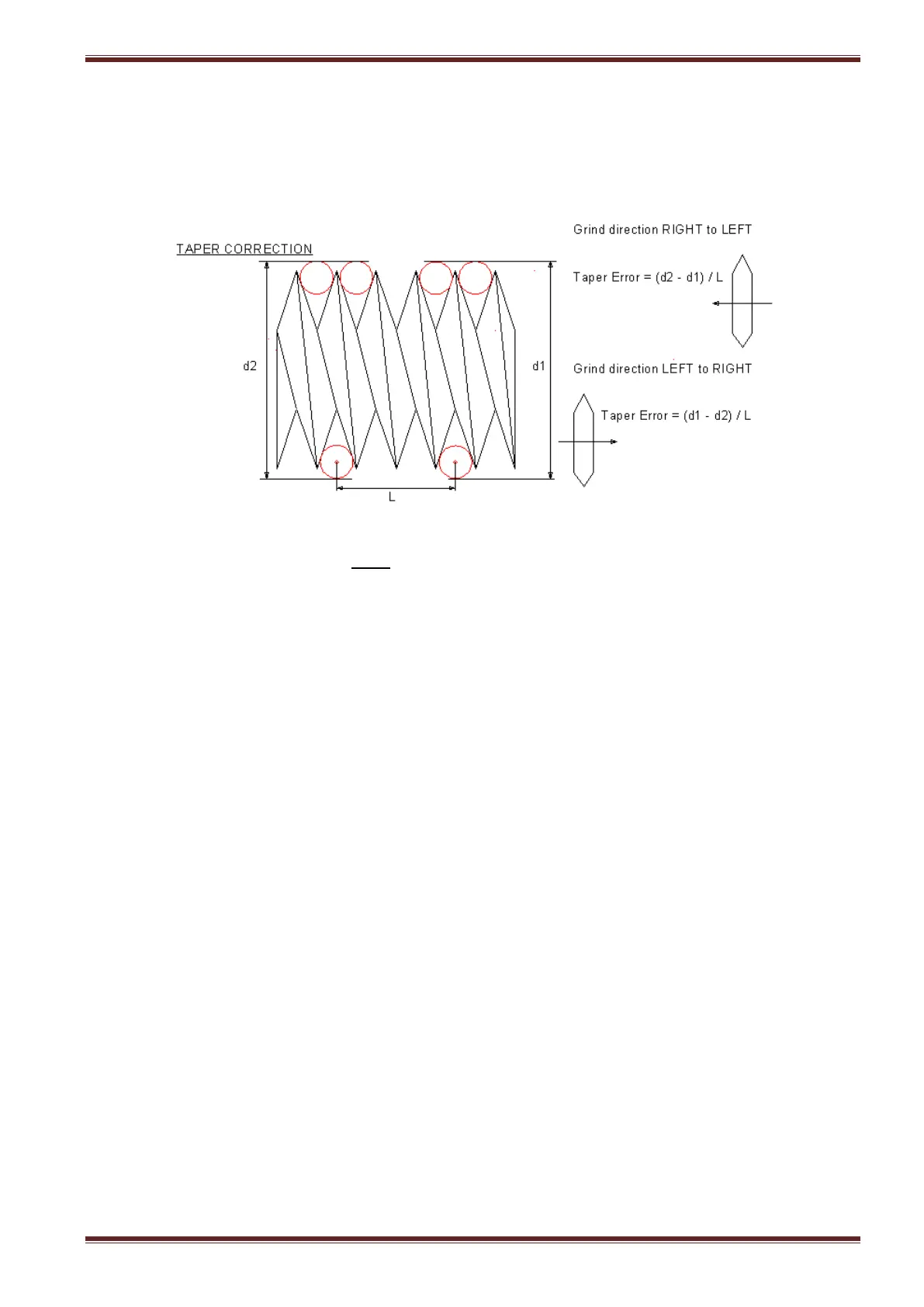

Taper Error
Input Range: 0 - 999 mm/mm
Amount of taper over a given workpiece length
You must remember that it is the error and not the correction required that needs to be entered in
the Taper Error input field.
Active Corr. (radial)
Read only field
Currently active radial taper correction applied to the machine.
Active Taper (radial)
Read only field
Currently active taper value applied to the machine.
