10 Workpiece probing (option)
This option permits the machine to automatically detect and calculate the thread pitch-in position for
the conditioned grinding wheel. The probing sequence is executed at the beginning of the automatic
machine cycle and prior to grinding the workpiece.

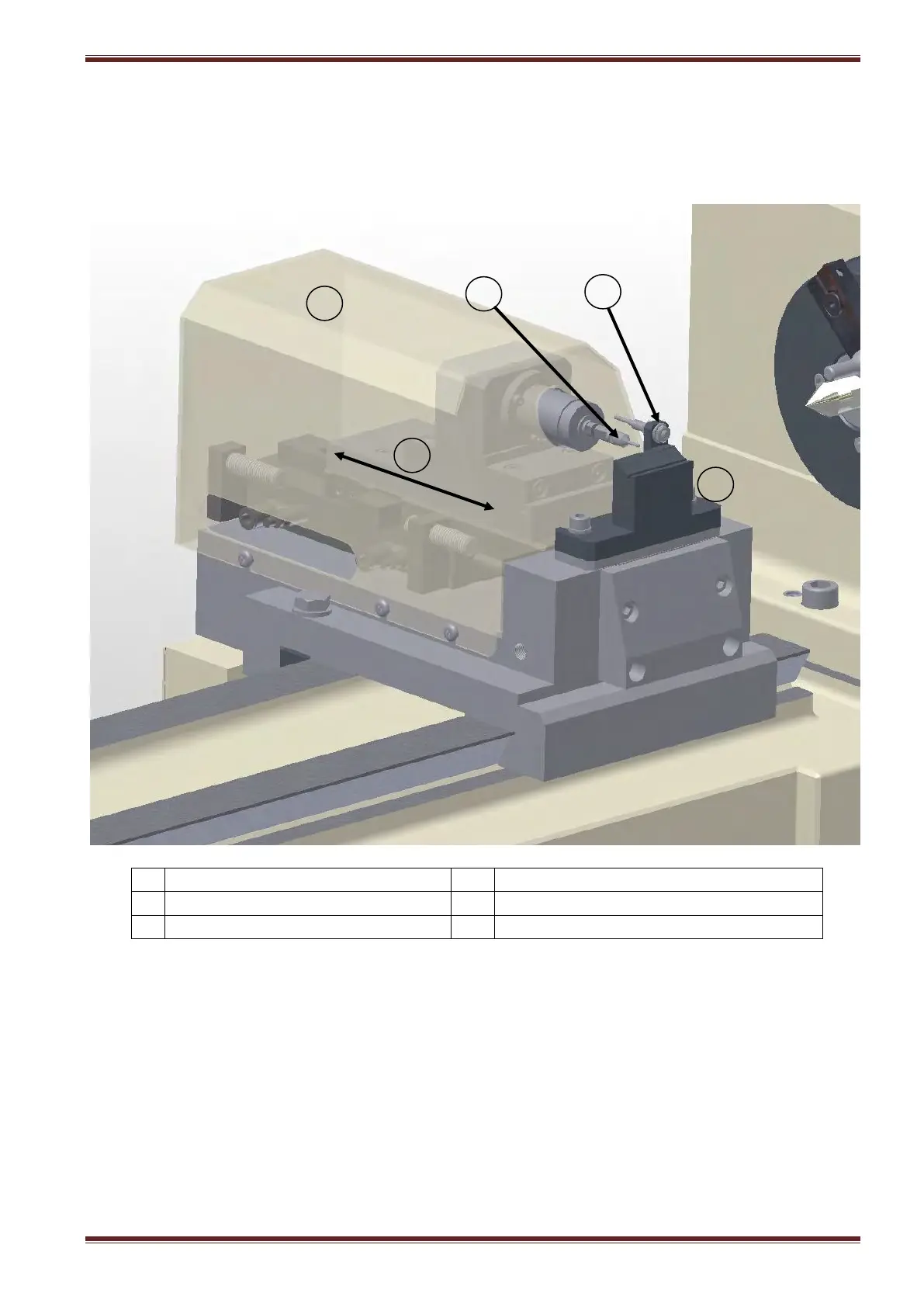

1
Measuring stylus
4
Cover
2
Part orientation proximity sensor
5
Pneumatic sub-slide
3
Workpiece support block
The measuring probe head is mounted onto a pneumatically operated sub-slide, which advances
during the automatic probing cycle once the component has been orientated to the correct start
position.
1
2
3
4
5
