0850/0850-T1 User Manual
Matrix Machine Tool (Coventry) Limited 135 / 231

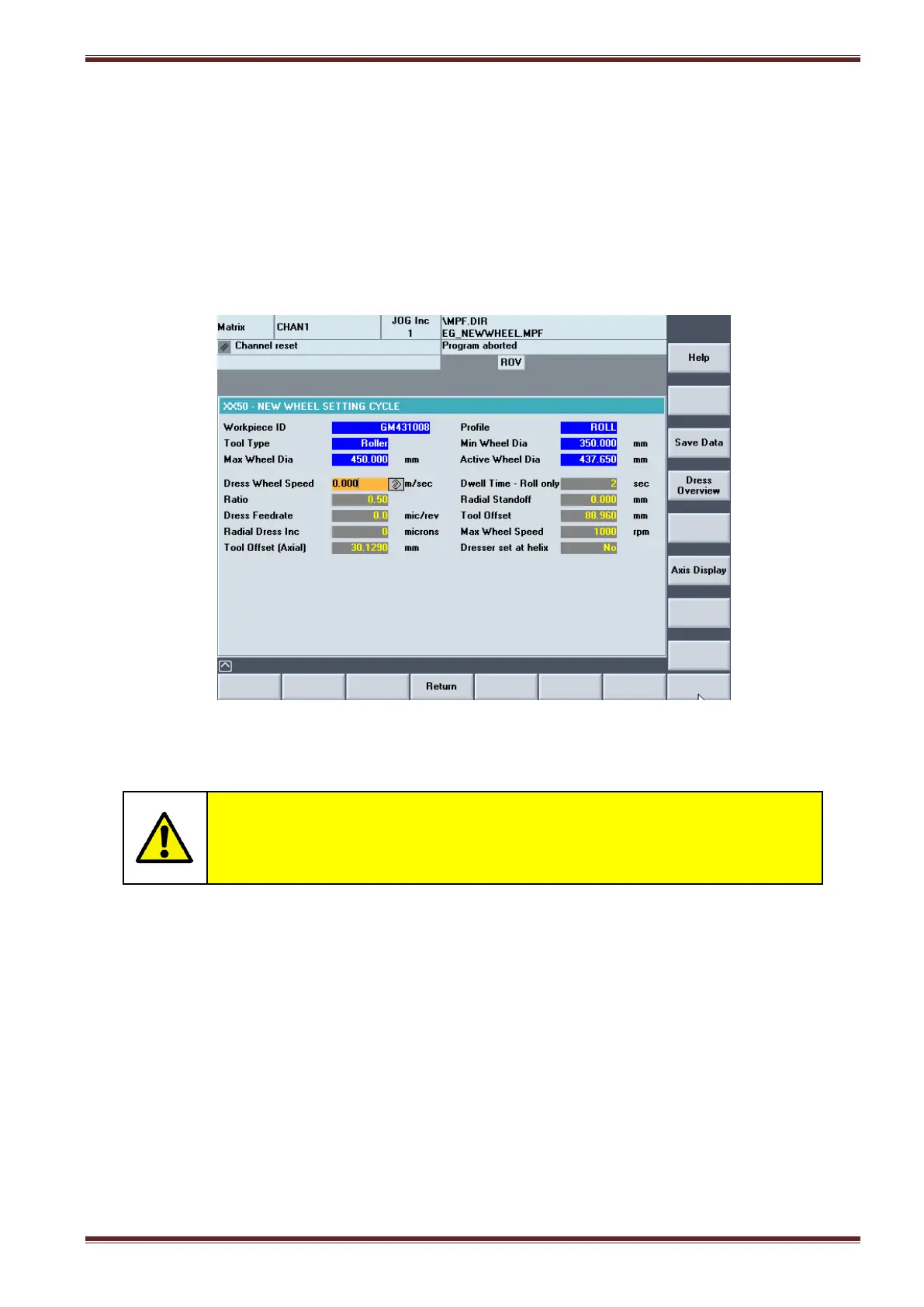

19.9 New Wheel Cycle
[Custom > Matrix > Main Menu > Setting Cycles > New Wheel]
This cycle is used establish the relationship between the grinding wheel and the dressing tool
ie to teach the machine the relative position of the grinding wheel to the dressing disc or roll.
Once you have completed the New Wheel setting cycle the machine can then keep track of the active
wheel diameter as grinding and dressing operations are performed.
A new grinding wheel may be a pre-formed wheel i.e. already dressed OR a brand new wheel i.e.
Green wheel that has no profile.
Caution
DO NOT execute the AUTO DRESS setting cycle before you have executed NEW
WHEEL.
The NEW WHEEL setting cycle should be executed when the:
1. workpiece thread profile is changed
2. grinding wheel is changed
3. dressing tool is changed
4. workpiece is changed
Therefore, it is important first step to execute this setting cycle before any other setting cycle when
preparing the machine for grinding a workpiece thread.
