8.4 Steady Clamping Pressure

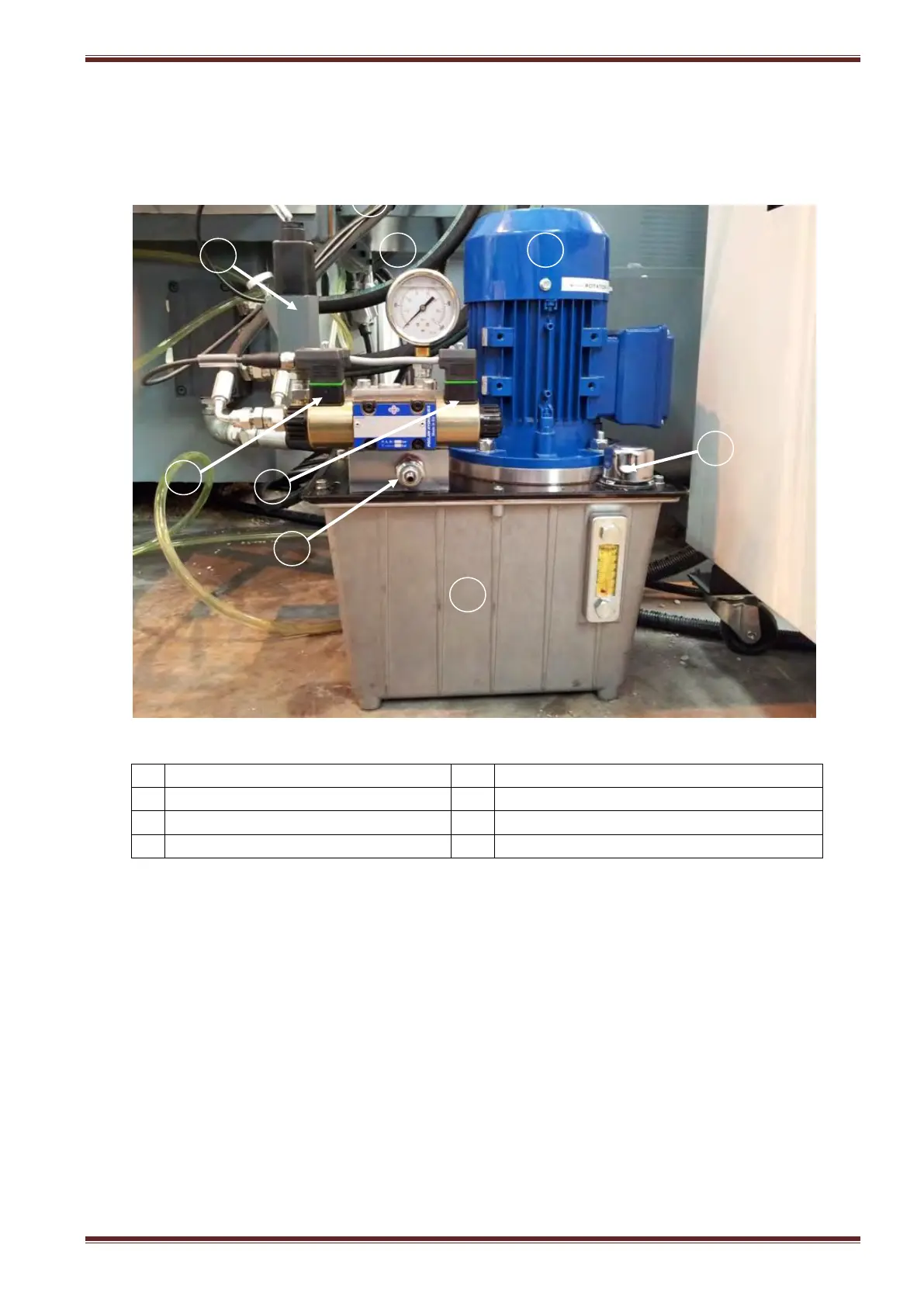

The hydraulic steady system has a working pressure range of 10 to 30bar. Adjustment of the
clamping pressure can be set at the hydraulics power pack unit which is located at the rear of the
machine.
1
0.75kW Pump motor 50/60Hz
5
Oil pressure gauge
2
Steady advance solenoid valve
6
Oil pressure adjuster screw
3
Steady retract solenoid valve
7
In-line oil pressure sensor
4
10L oil tank with level sight glass
8
Hydraulic oil filler cap
Fill up the tank with 10 litres of DTE light Hydraulic oil ISO VG32 (or equivalent) through the filling
point located at the top of the tank.
To increase steady pressure
Turn the adjuster screw (6) counter-clockwise (CCW) to reduce the oil supply pressure to the steady.
To decrease steady pressure
Turn the adjuster screw (6) clockwise (CW) to increase the oil supply pressure to the steady.
