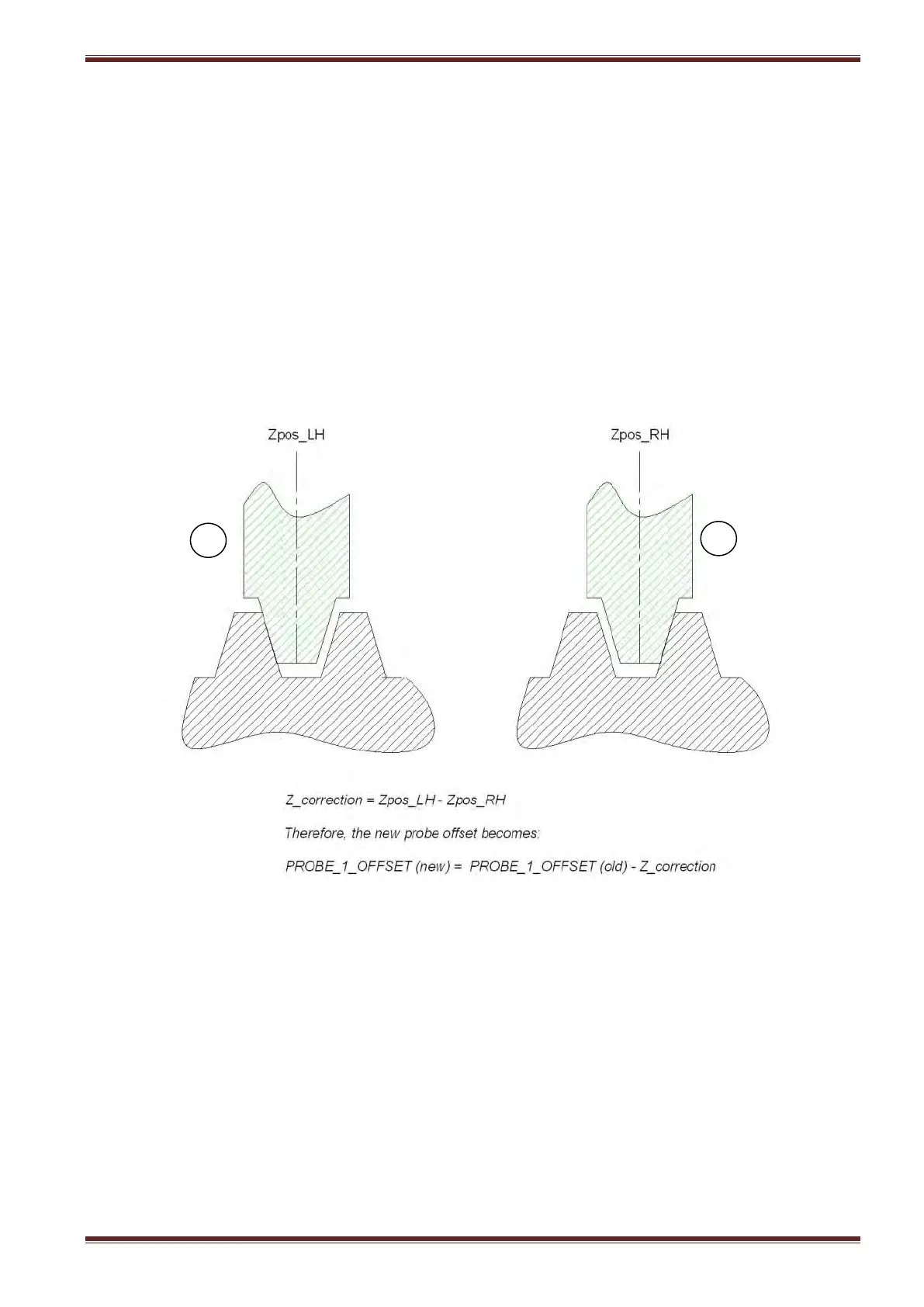

6. Add the amount of Z-shift to the Probe 1 Offset input field.
7. Repeat the test procedure again to check the correction made to the probe offset has been
applied and also to confirm that the grinding wheel is being centrally positioned in the thread
groove.
Remember: You are doing this to verify that the auto-probing (auto-pitch-in) cycle is working
correctly before you start to do production grinding.
Increasing Probe 1 Offset applies offset bias towards the RH side of the groove (1)
Decreasing Probe 1Offset applies offset bias towards the LH side of the groove (2)
