0850/0850-T1 User Manual
Matrix Machine Tool (Coventry) Limited 114 / 231
Select [Upright To Cone] softkey if the thread pitch dimension is specified to the taper of the
workpiece (see fig.2 below) followed by selecting the [Next] softkey to continue.

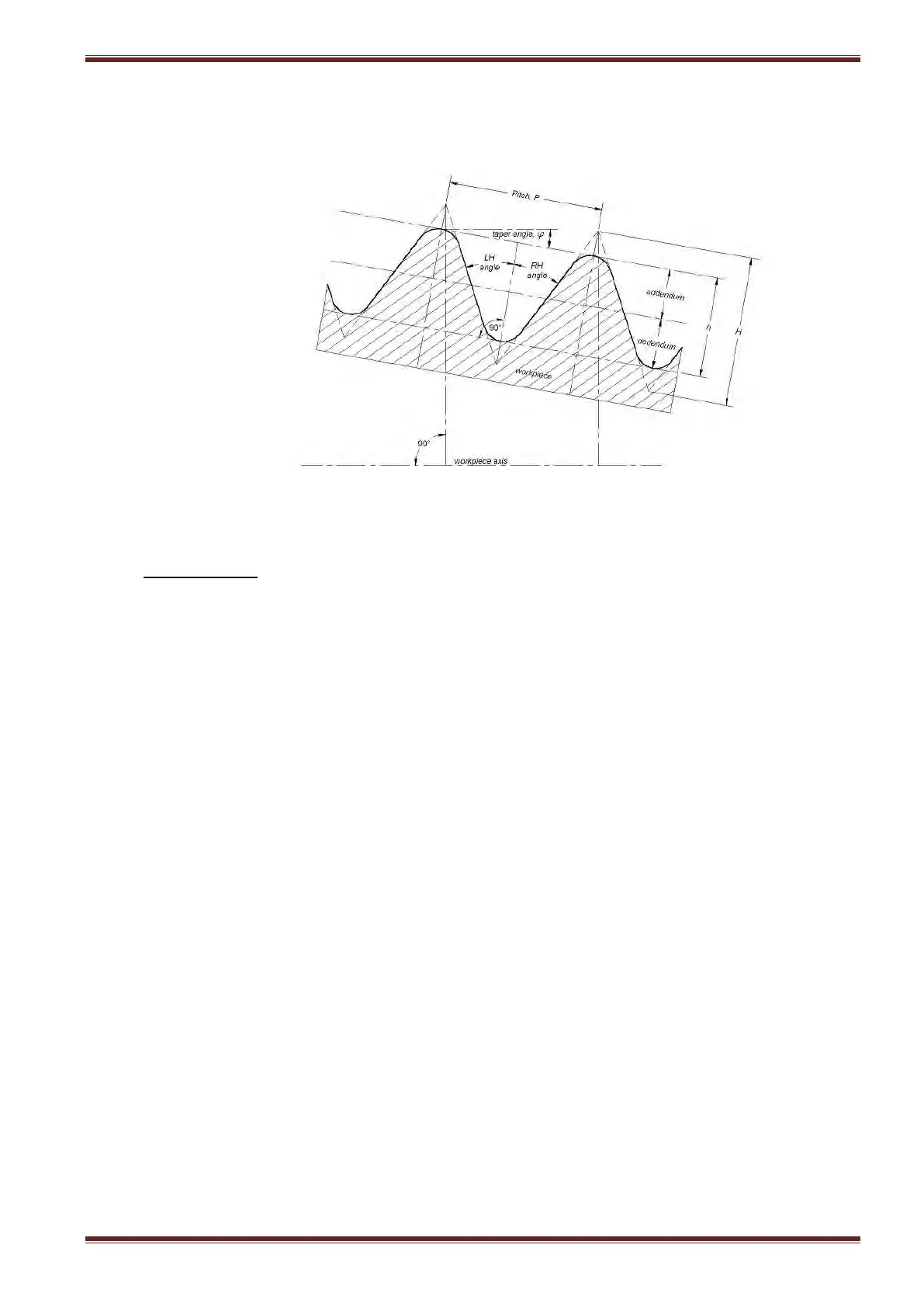

fig.2 thread specified upright to the cone
Parallel Thread
If the workpiece is parallel then you can select either [Upright To Axis] or [Upright To Cone]
softkey followed by selecting the [Next] softkey to continue.
Note: the selection you make is highlighted in green.
