Radial stand-off
Input Range: 0 – 20 mm
The radial distance by which the grinding wheel tip shall move clear of the dressing tool after initial
touch-on (between the wheel and the disc).
When using a diamond roll:
This parameter has no effect.
When using diamond disc or single point diamond:
It is highly recommended to enter a radial stand-off value especially when you fit a new no-profiled
wheel to the machine. As a general guideline it is recommended that you specific the radial stand-off
as two times the profile depth.
However, if a previously profiled wheel has been fitted to the machine then you can reduce the radial
stand-off distance.
In NEW WHEEL the dressing box cycle will continue to run until you have selected the [FIN] key to
terminate the cycle

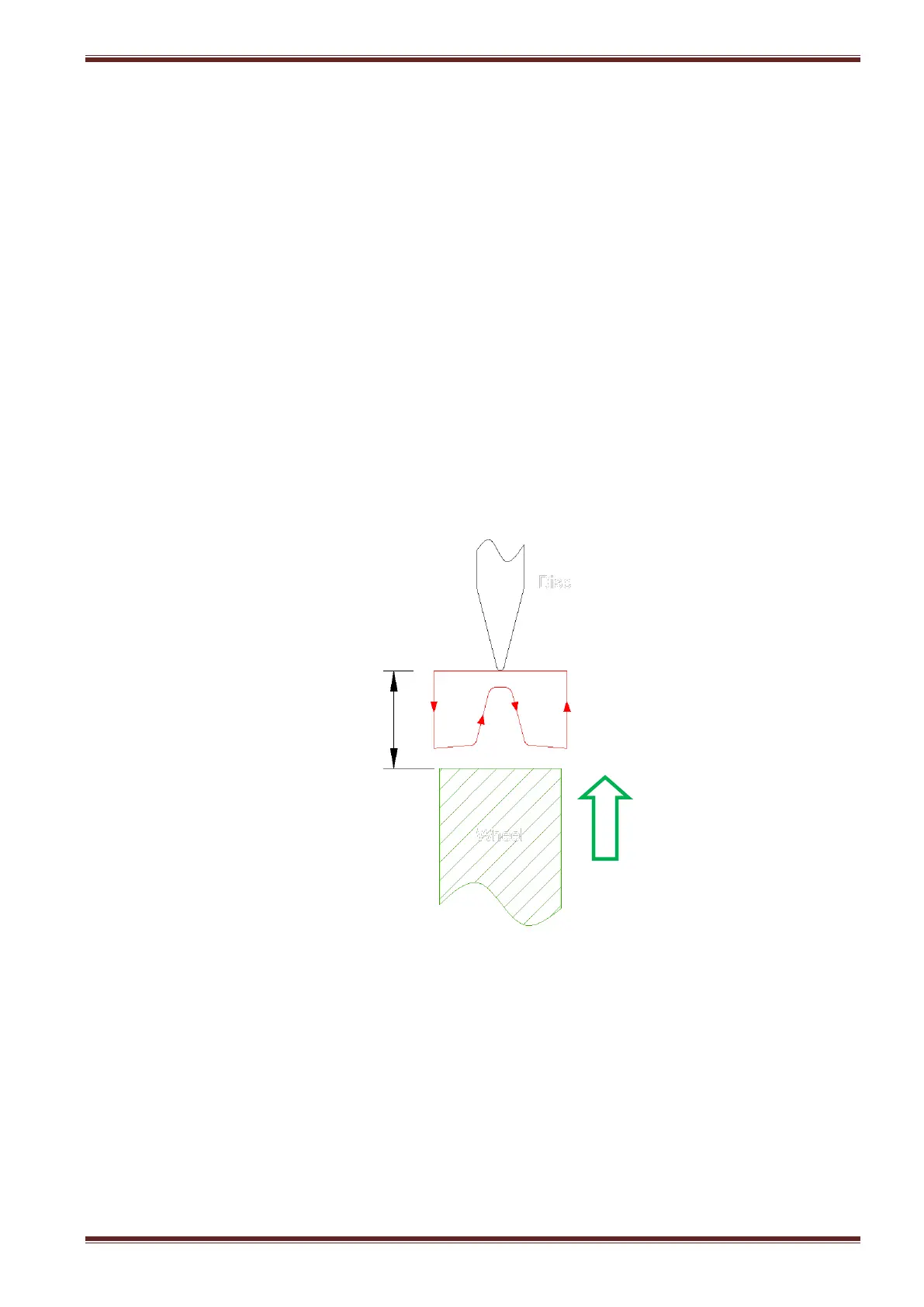

Radial stand-off
distance
Dressing disc
or
single point diamond
Grinding wheel advanced
towards dressing tool
using the handwheel
