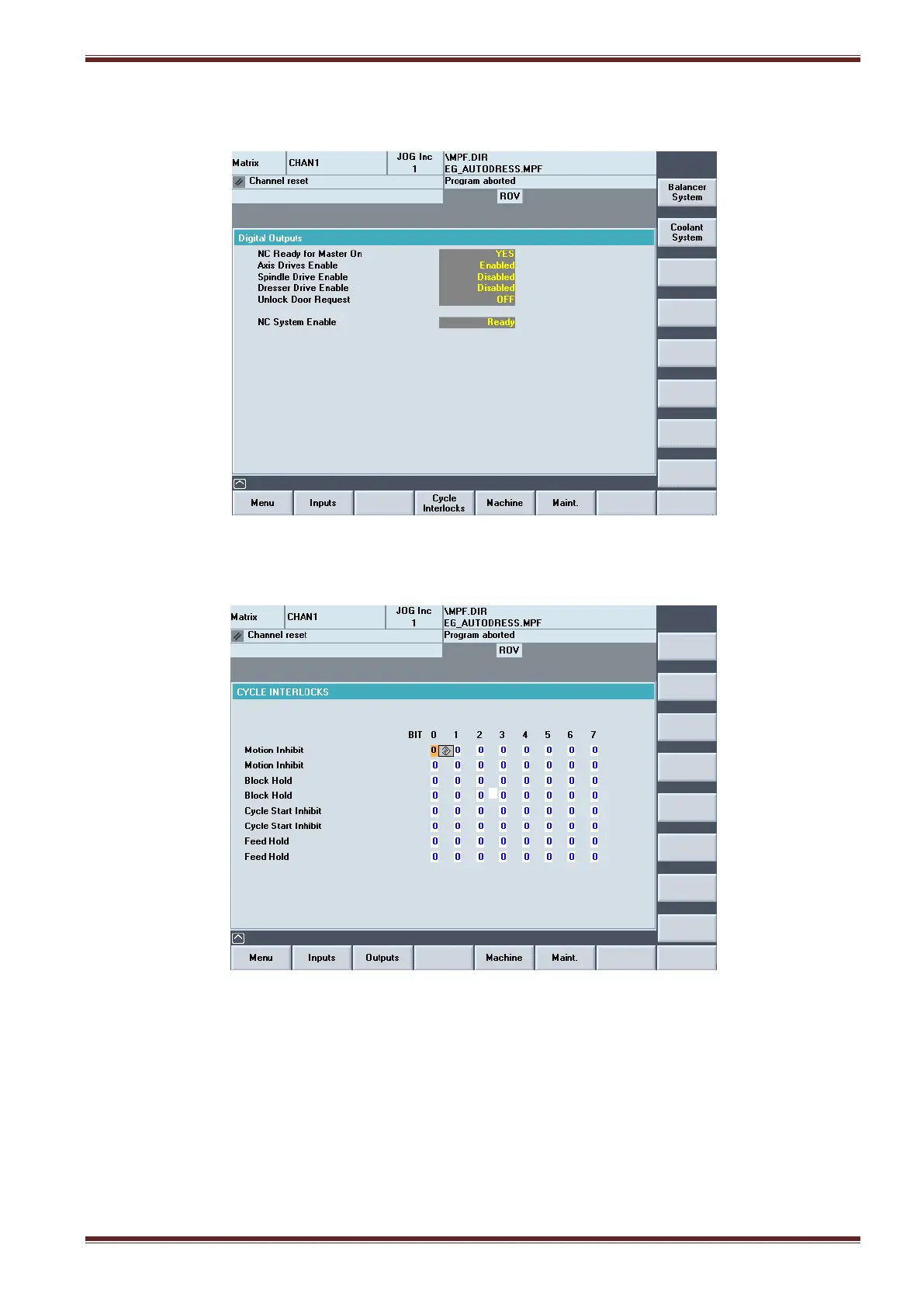

Digital Outputs
Cycle Interlocks
State = 0 interlock not active
State = 1 an interlock condition is active that is currently preventing the cycle from operating
Using the blue arrow keys on the HMI panel cursor onto a bit field. Observe the message text in the
lower status panel to give you specific indication of the area of the problem.
