Use of the incremental jog selection keys described below is permitted in JOG, MDA or TEACH-IN
modes.

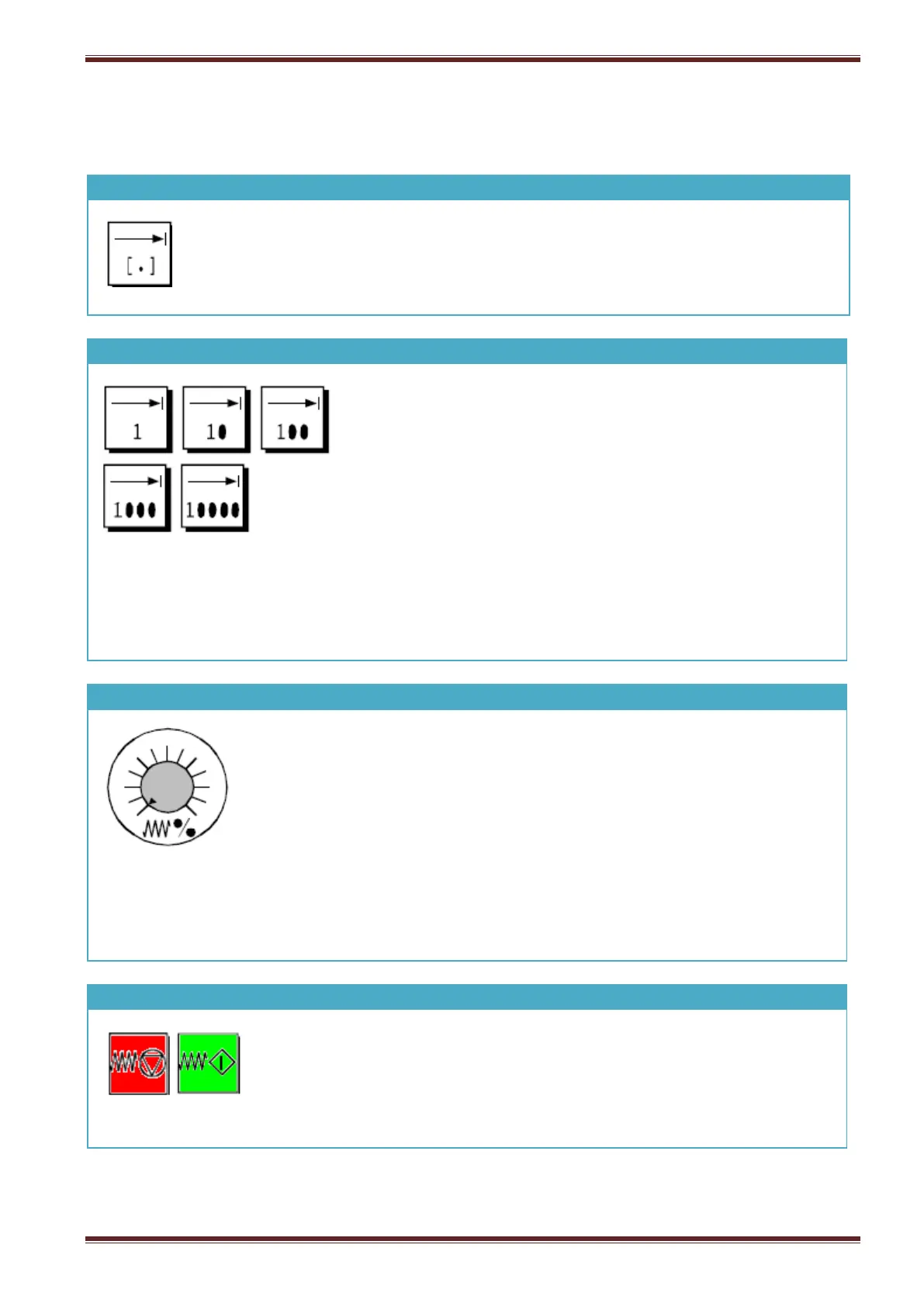

JOG VARIABLE INCREMENT
Press this key if you want to jog the selected axis by an incremental amount as
defined in the Siemens machine area screen (Machine > INC softkey)
JOG INC 1, 10, 100
Select to jog the selected axis by a preset incremental amount
with each press of the jog [+] or [-] key.
1 = 0.001mm (1micron)
10 = 0.01mm (10micron)
100 = 0.1mm (100micron)
(1000 = 1mm increment - selection not available)
(10000 = 10mm increment - selection not available)
When the [HANDWHEEL] function is enabled you must select a
jog increment before the handwheel can be used.
AXIS FEEDRATE OVERRIDE
This rotary switch allows you to proportionally control the programmed
machine axis speed during automatic cycle operation.
The switch is marked 0% to 120%.
All axis motion on the machine stops if the switch is set at 0% in any
operating mode.
Set the switch at 100% (or above) to allow the machine axes to move at
the programmed feedrate.
FEED START/STOP
Feed start/stop functions are not selectable.
The feed stop function is always disabled.
The feed start function is always enabled.
