Mitsubishi GOT1000 Series User Manual

27.1 Direct Connection To CPU
27.1.1 System Configuration
27 - 3
25
BAR CODE READER CONNECTION
26
PRINTER CONNECTION
27
CNC CONNECTION
28
MULTI-CHANNEL FUNCTION
29
FA TRANSPARENT FUNCTION
30
MULTIPLE-GT11 CONNECTION FUNCTION
31
GATEWAY FUNCTION INDEX

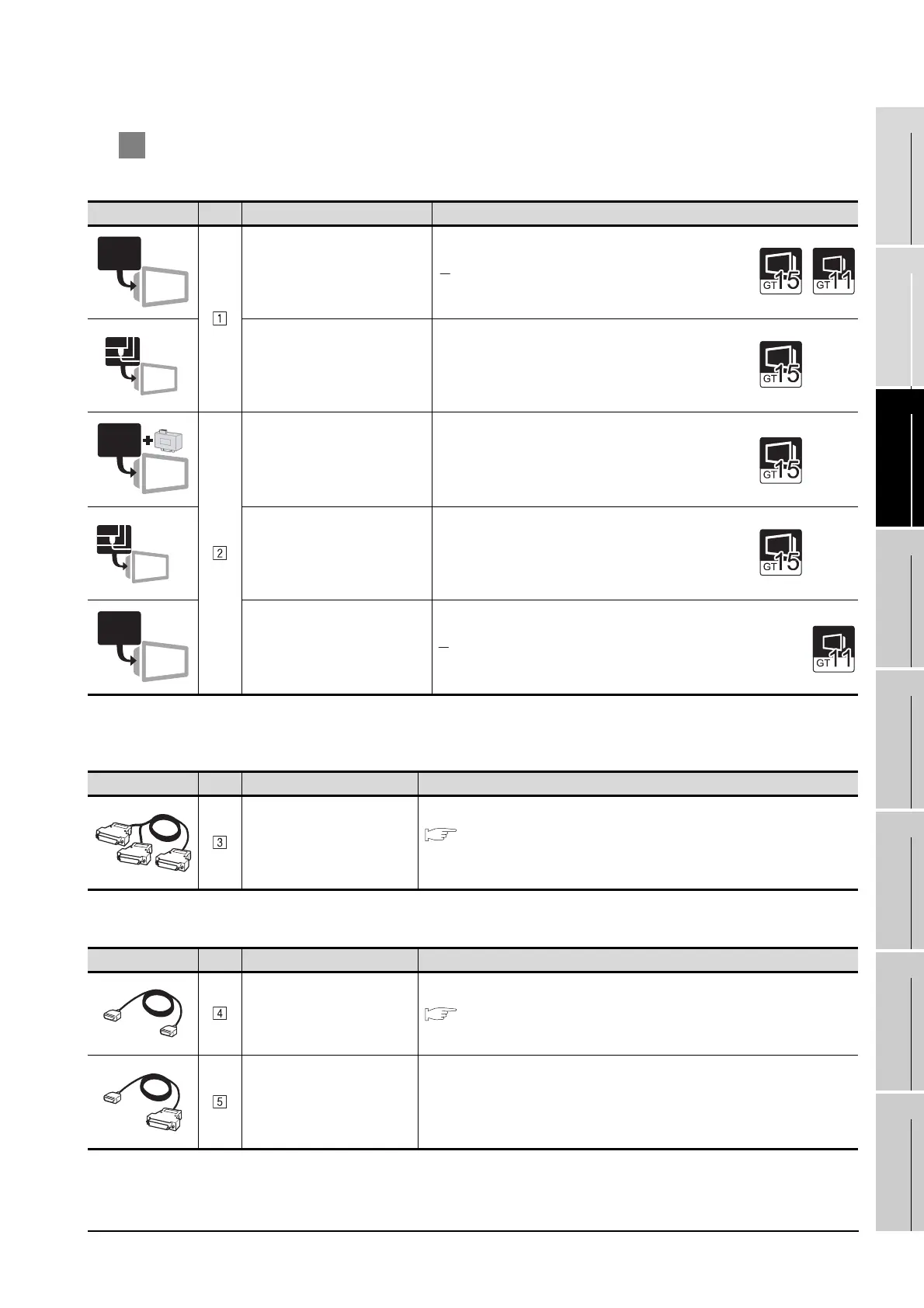

2 System equipment
(1) GOT
*1 Connect it to the RS-232 interface (built into GOT).
(2) CNC
(3) Cable
Image No. Name Model name
RS-232 interface
• For RS-232 communication
(Built into GOT)
RS-232 Communication Unit
• For RS-232 communication
GT15-RS2-9P
RS-422 conversion unit
*1
• For RS-422 communication
GT15-RS2T4-9P
RS-422/485 Communication Unit
• For RS-422 communication
GT15-RS4-9S
RS-422 interface
• For RS-422 communication
(Built into GOT)
Image No. Name Model name
F311 cable
To be prepared by the user, referring the following.
MELDAS C6/C64 CONNECTION AND MAINTENANCE MANUAL
(BNP-B2255)
F311 Cable Production Drawing
Image No. Name Model name
RS-232 cable
• Between CNC and GOT
Section 27.1.2 Connection Cable
RS-422 cable
• Between F311 cable and
GOT
GT01-C30R4-25P(3m), GT01-C100R4-25P(10m),
GT01-C200R4-25P(20m), GT01-C300R4-25P(30m)
RS-232
RS-232
RS-232
RS-232
RS-422/485
RS-422/485
RS-422

Mitsubishi GOT1000 Series Specifications

General

Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Series	GOT1000
Resolution	640 x 480 pixels
Touch Panel Type	Resistive
Interface	RS-232, USB
Storage Temperature	-20 to 60°C
Protection Rating	IP65
Display Type	TFT LCD
Brightness	400 cd/m²
Backlight Life	50, 000 hours
CPU	RISC
Shock Resistance	147 m/s²
Display Size	10.4 inches
