9.4 PLC Side Setting
9.4.2 Connecting CJ1 or CS1
9 - 39
9
CONNECTION TO OMRON PLC
10
CONNECTION TO KEYENCE PLC
11
CONNECTION TO SHARP PLC
12
CONNECTION TO TOSHIBA PLC
13
CONNECTION TO HITACHI PLC
14
CONNECTION TO MATSUSHITA PLC
15
CONNECTION TO YASKAWA PLC
16
CONNECTION TO YOKOGAWA PLC

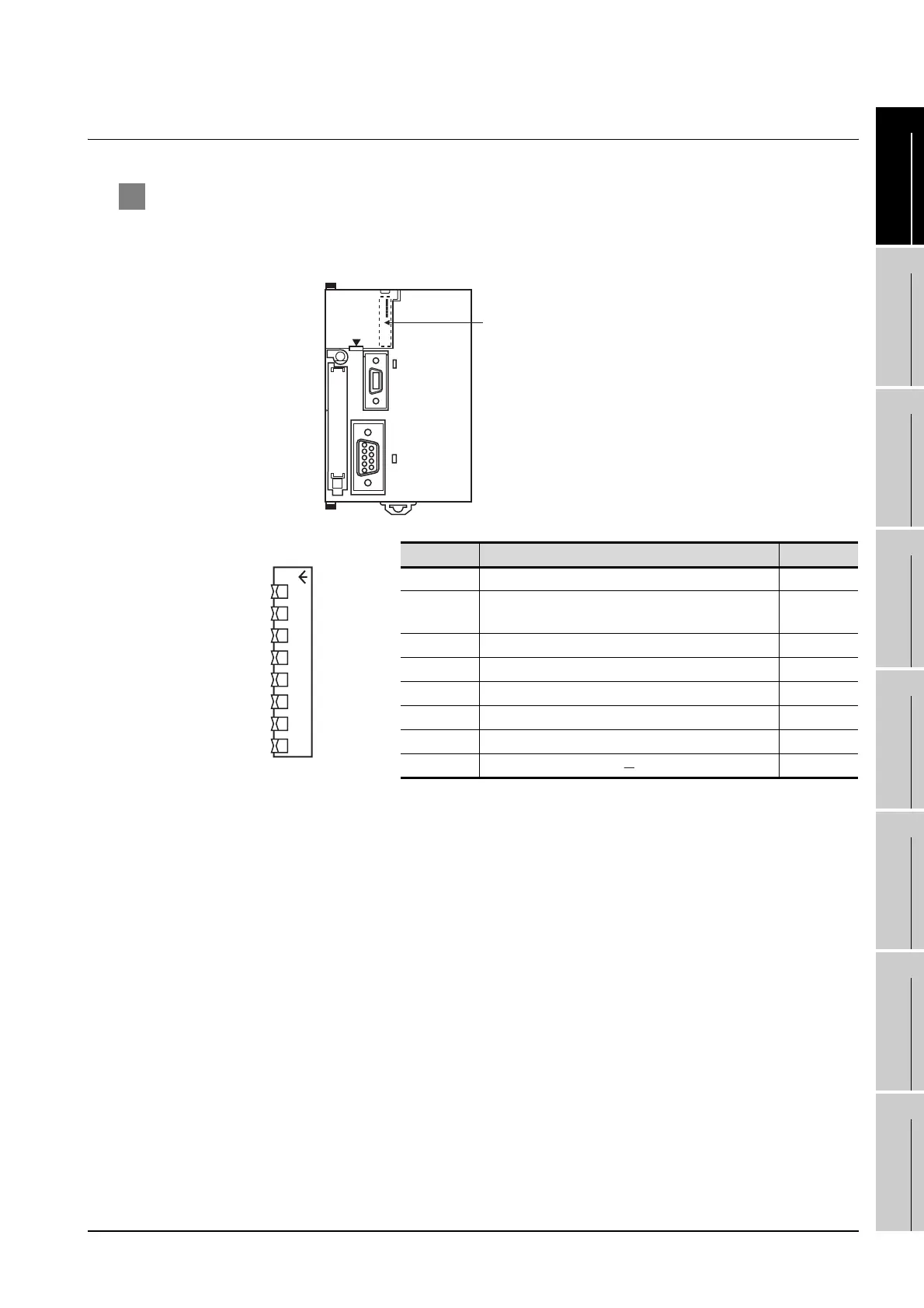

9.4.2 Connecting CJ1 or CS1
1 Setting DIP switches
Set the DIP switches.
(1) Setting on the CJ1
Switch Description Setting
SW1 Enable/disable write to user memory (UM) OFF
SW2
Enable/disable automatic transfer of user program at
power ON
OFF
SW3 Free OFF
SW4 Peripheral port communication condition OFF
SW5 RS-232C communication condition OFF
SW6 User customized DIP switch OFF
SW7 Type specification for simplified backup OFF
SW8 OFF
RUN
ERR/ALM
INH
PRPHL
COMM
OPEN
MCPWR
BUSY
PERIPHERAL
PORT
DIP switch
(inside battery compartment)
ON
1 2 3 4 5 6 7 8
