19.4.6 SM devices
The SM devices are bit devices into which interrupt outputs and clock data that turn ON/OFF at 1-second
cycles.

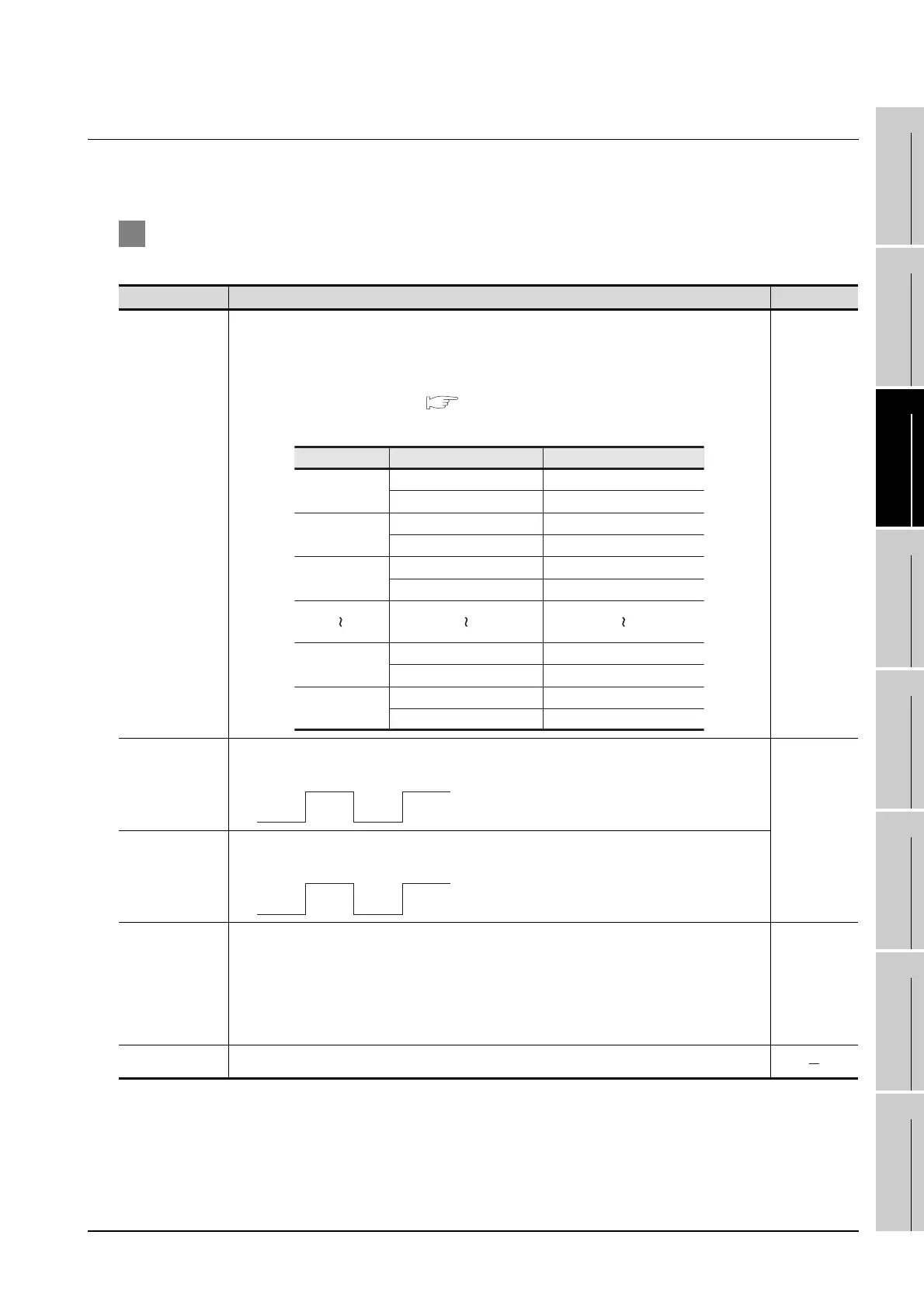

1 List of SM devices
The following shows the SM devices (virtual devices inside the GOT).
*1 After the ON/OFF state is changed, the interrupt data are output within a period of 1 to 10 ms.
*2 When the ON/OFF state of SM0 to 49 is changed from the host side, interrupt output is not performed.
Address Description Set side
SM0 to 49
Interrupt output
When the ON/OFF state of SM0 to 49 is changed by a touch switch on the GOT, for example, the
interrupt codes shown below are transmitted (interrupt output) to the host side.
*1*2
The data amount (number of bytes) to be interrupt-output is set at "Interrupt Data Byte" in
"Communication Detail Settings". ( Section 19.6.3 Setting communication interface
(Communication settings))
User
SM50
1-second cycle clock
Turns ON/OFF at a 1-second cycle.
System
SM51
2-second cycle clock
Turns ON/OFF at a 2-second cycle.
SM52
Interrupt code output disable flag
Enables or disables the output of the interrupt code.
OFF : Interrupt code output enabled
ON : Interrupt code output disabled
When set to disable the interrupt code output, no interrupt data are output to the host.
(Relevant devices: D13, D14, SM0 to 49)
User
SM53 to 63 Unused
Address Event type
SM0
Changed from OFF to ON
Changed from ON to OFF
Changed from OFF to ON
Changed from ON to OFF
Changed from OFF to ON
Changed from ON to OFF
Changed from OFF to ON
Changed from ON to OFF
Changed from OFF to ON
Changed from ON to OFF
Interrupt code
SM1
SM2
50
H
51H
52H
53H
54H
55H
SM48
B0
H
B1H
SM49
B2
H
B3H
0.5 0.5
11
