28.3.3 Setting communication interface (Communication settings)
Make the GOT communication interface settings on [Communication setting] of GT Designer2.
Select the same communication driver as the one installed on the GOT for each communication interface.
For details on [Communication setting] of GT Designer2, refer to the following manual.
GT Designer2 Version Screen Design Manual

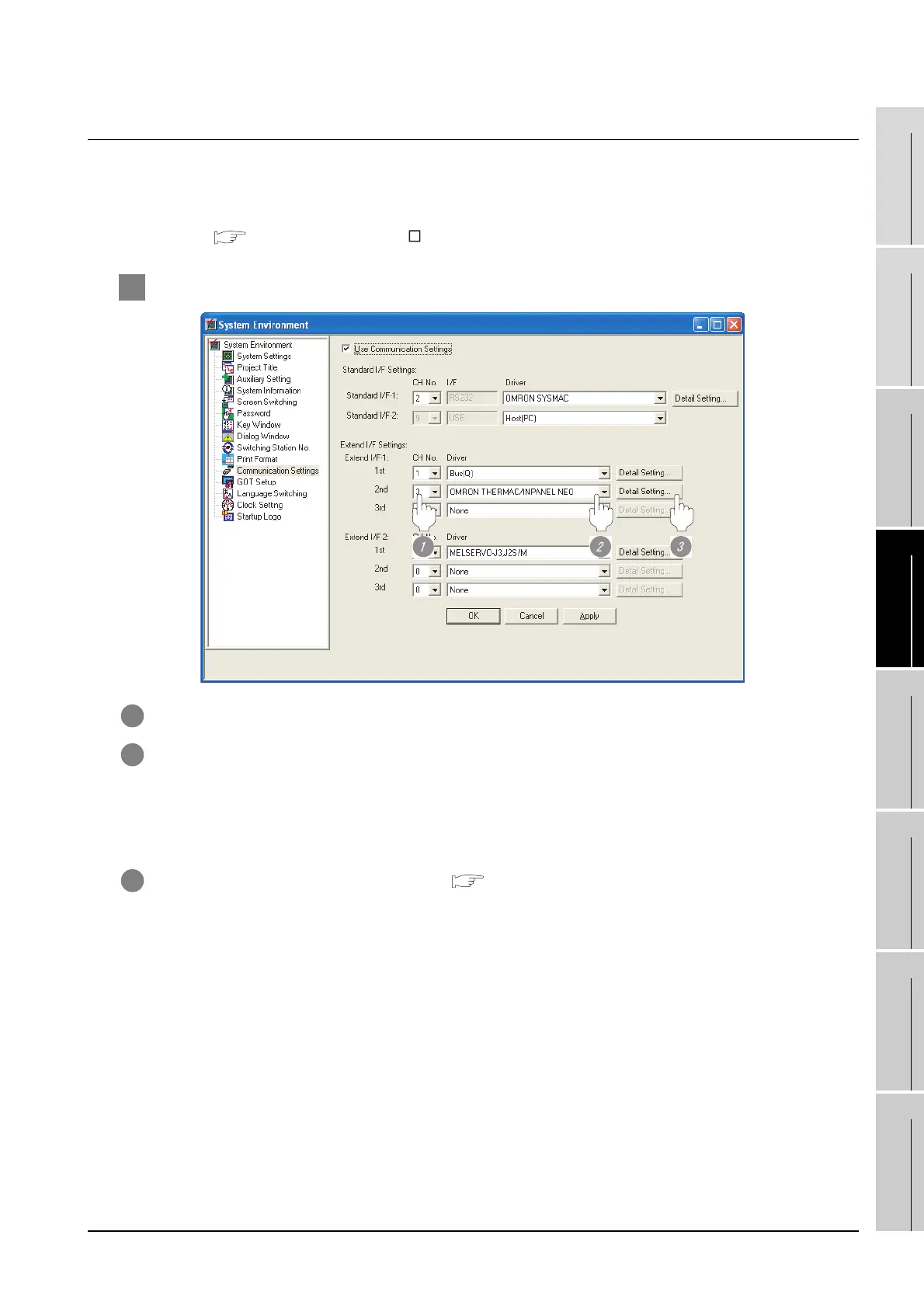

1 Communication settings
1 Set the CH No. according to the position of communication unit to be mounted to the GOT.
2 Set the communication driver to each CH No..
• Channel No.1: Bus(Q)
• Channel No.2: OMRON SYSMAC
• Channel No.3: OMRON THERMAC/INPANEL NEO
• Channel No.4: MELSERVO-J3,J2S/M
3 Perform the detailed settings for the driver. ( Communication detail settings of each chapter.)
