Mitsubishi GOT1000 Series User Manual

9 - 18
9.2 Connection Cable
9.2.1 RS-232 cable
9.2.1 RS-232 cable
The following shows the connection diagrams and connector specifications of the RS-232 cable used for
connecting the GOT to a PLC.

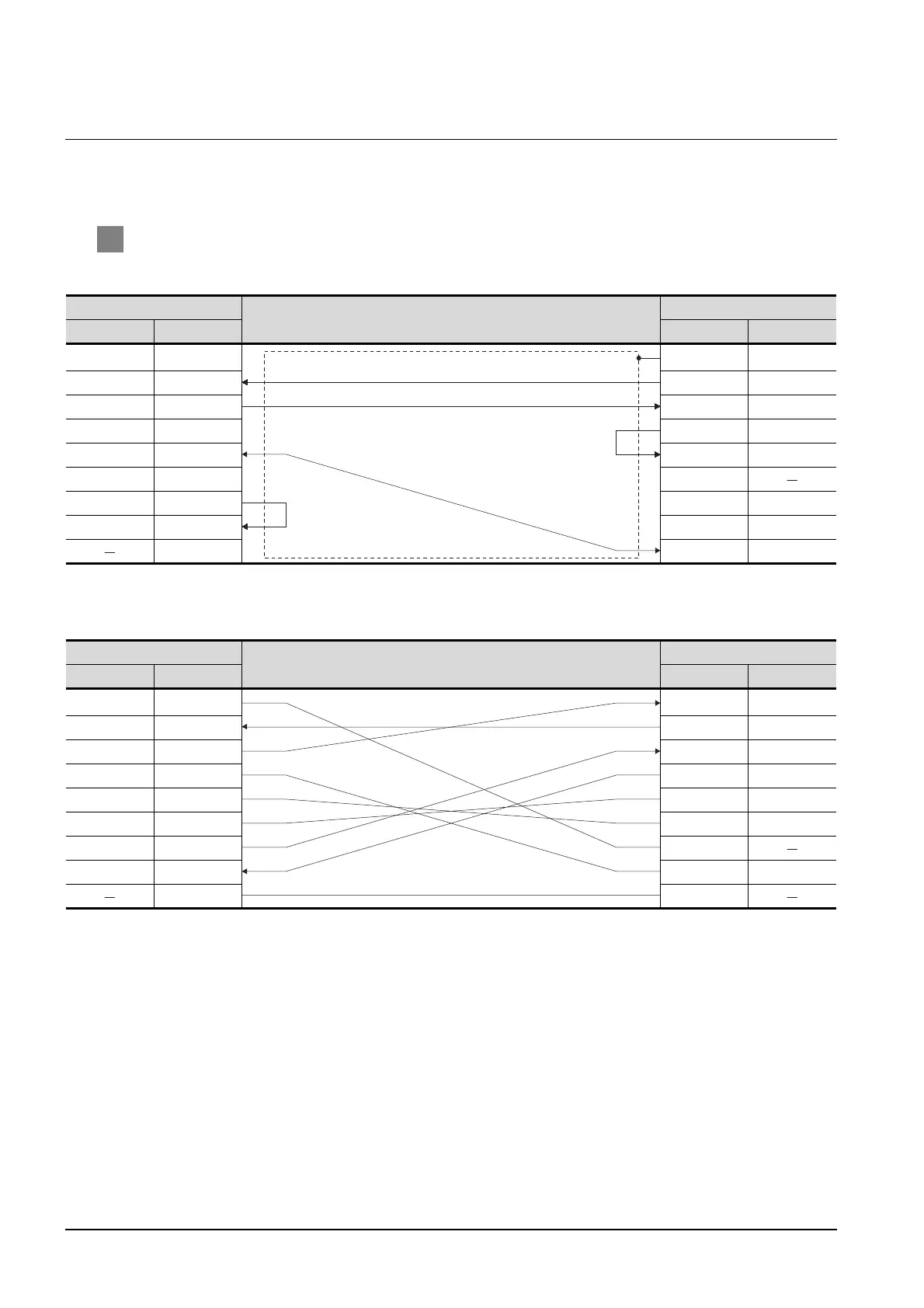

1 Connection diagram
(1) RS-232 cable 1)
*1 GT15: CD, GT11: NC
(2) RS-232 cable 2)
*2 GT15: CD, GT11: NC
GOT side
Cable connection and signal direction
OMRON product side
Signal name Pin No. Pin No. Signal name
CD/NC
*1
1 1FG
RD(RXD) 2 2SD
SD(TXD) 3 3RD
ER(DTR) 4 4RS
SG 5 5CS
DR(DSR) 6 6
RS(RTS) 7 7FR
CS(CTS) 8 8ER
9 9SG
GOT side
Cable connection and signal direction
OMRON product side
Signal name Pin No. Pin No. Signal name
CD/NC
*2
1 2SD
RD(RXD) 2 3RD
SD(TXD) 3 4RS
ER(DTR) 4 5CS
SG 5 6DR
DR(DSR) 6 7SG
RS(RTS) 7 8
CS(CTS) 8 20 ER
9 22

Mitsubishi GOT1000 Series Specifications

General

Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Series	GOT1000
Resolution	640 x 480 pixels
Touch Panel Type	Resistive
Interface	RS-232, USB
Storage Temperature	-20 to 60°C
Protection Rating	IP65
Display Type	TFT LCD
Brightness	400 cd/m²
Backlight Life	50, 000 hours
CPU	RISC
Shock Resistance	147 m/s²
Display Size	10.4 inches
