5 - 36
5.3 PLC Side Setting
5.3.3 Connecting to MELSECNET/10 network module (A Series)
5.3.3 Connecting to MELSECNET/10 network module (A Series)
This section describes the settings of the GOT and MELSECNET/10 network module (A Series) in the case
of system configuration shown as .
In this section, the network parameter (common parameter) of GX Developer is taken as an exmaple to
provide explanations.
MELSECNET/10 network module (A Series)
For details of the MELSECNET/10 network module (A Series), refer to the following
manual.
Type MELSECNET/10 Network system (PLC to PLC network) Reference
Manual

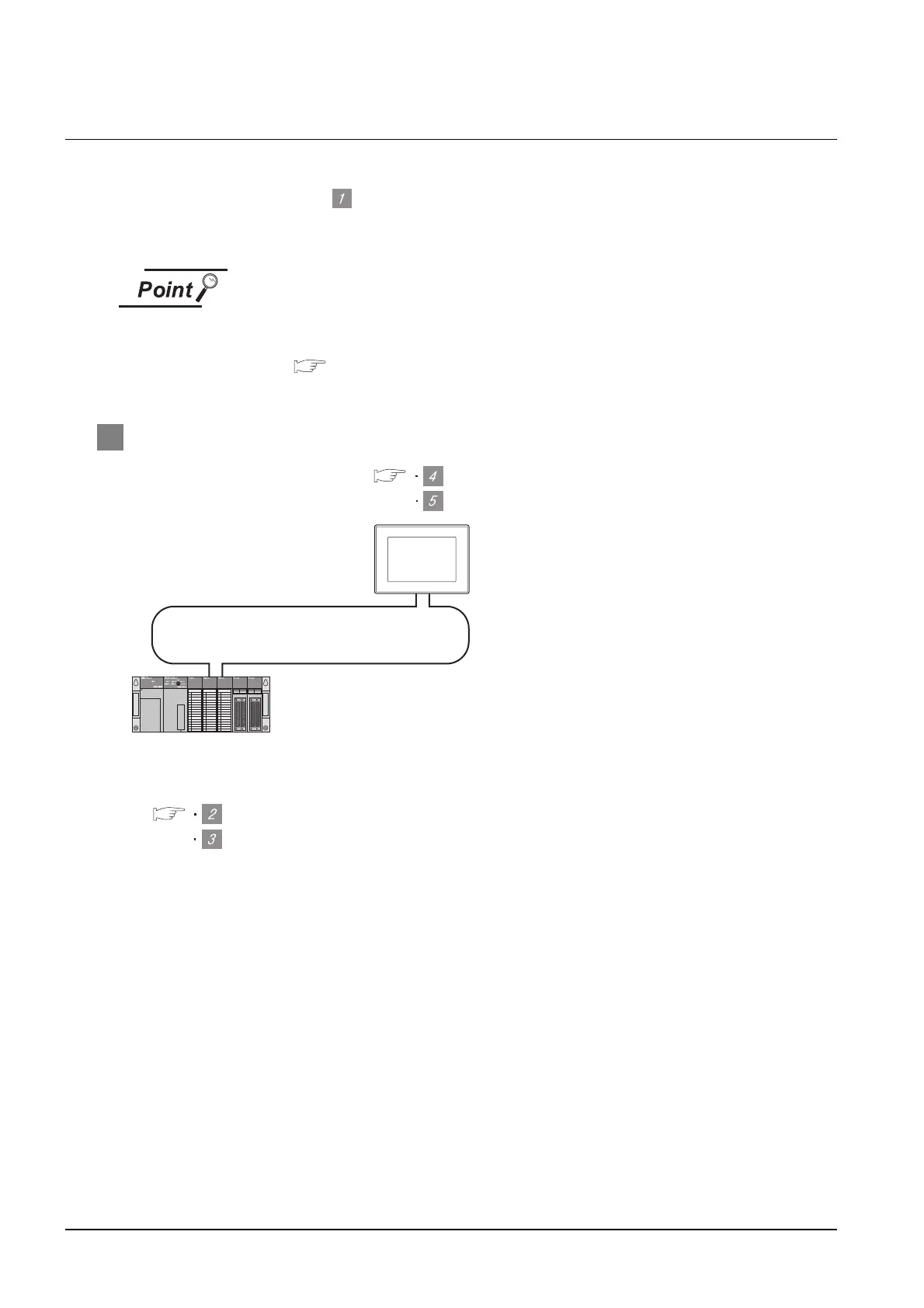

1 System configuration
*1 The MELSECNET/10 network module is mounted at slot 0 of the base unit.
The start I/O No. of the MELSECNET/10 network module is set at "0".
<MELSECNET/10 network module> *1 (Use the default value for settings other
than the following.)
Station No. : 1
Mode : Online
Network type : MNET/10 (Controlling station)
Network No. : 1
Total stations : 2
Network range assignment: LB0000
H to LB00FFH
LW0000H to LW00FFH
Switch setting of MELSECNET/10 network module
[Network parameter] of GX Developer
[Communication settings] of GT Designer2
5
Setting of the MELSECNET/10 communication unit
MELSECNET/10 (PLC to PLC network)
<GOT> (Use the default value for settings other
than the following.)
Station No. : 2
Mode : Online
Network No. : 1
Network range assignment: LB0100
H
to LB01FF
H
LW0100
H
to LW01FF
H
To Next Page
