2.1 System Configuration

2.1.7 Connecting to motion controller CPU (A171SHCPUN, A172SHCPUN, A173UHCPU(-S1))

2.1.7 Connecting to motion controller CPU

(A171SHCPUN, A172SHCPUN, A173UHCPU(-S1))

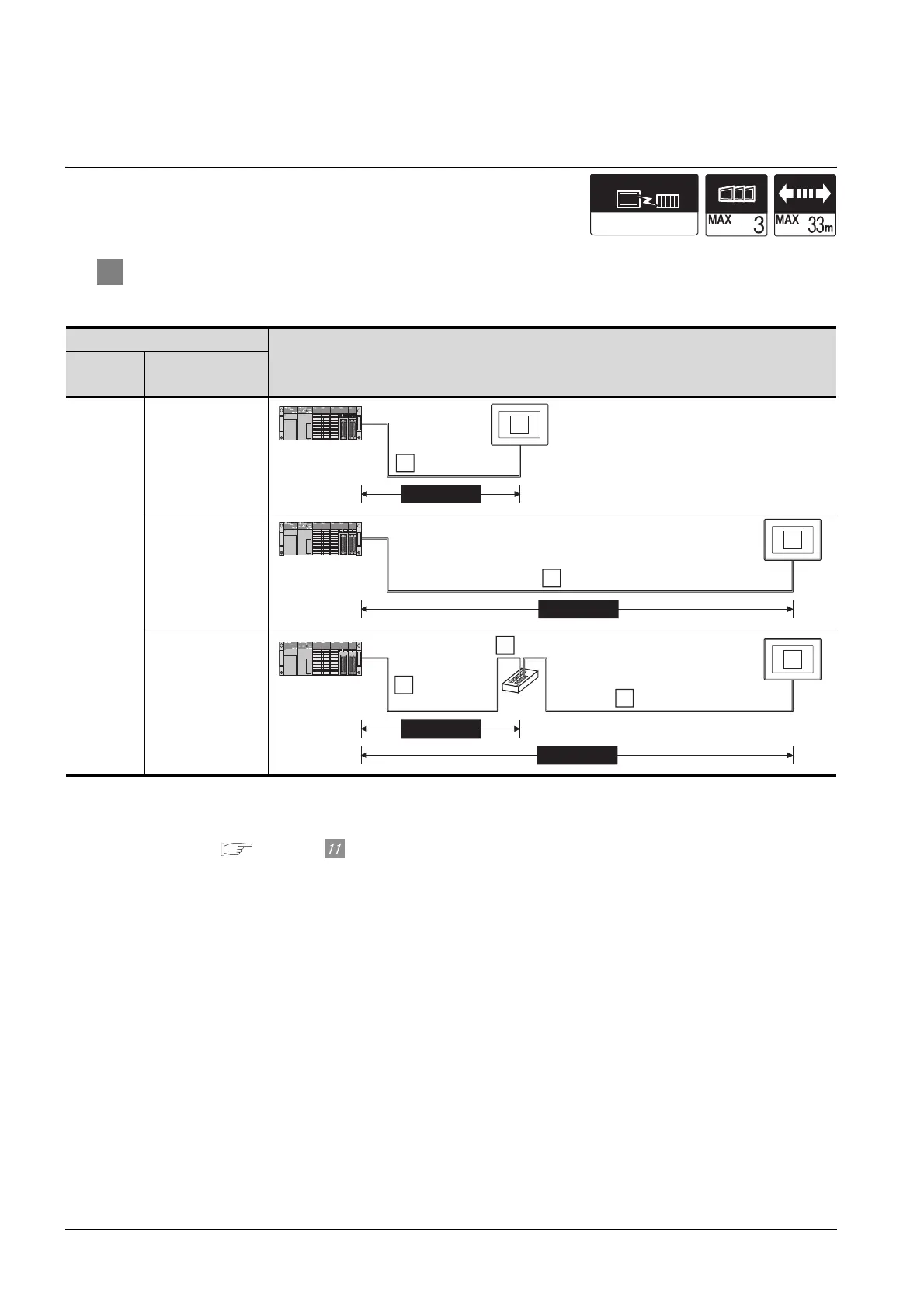

1 System configuration and connection conditions

(1) When using no extension base unit

(Continued to next page)

*1 The number of connectable GOTs is limited by the type of the connected CPU and the number of the intelligent

function modules.

Section 2.3 When connecting multiple GOTs

Connection conditions

System configuration

Number of

GOTs

Distance from main

base unit to 1st GOT

3m or less

More than 3m,

30m or less

More than 3m,

33m or less

Communication driver

Bus(A/QnA)

MAX3m

Connection cable

MAX30m

Connection cable

MAX3m

Connection

cable

Connection cable

Bus connector conversion box

MAX33m
