21.2.1 RS-232 cable
The following shows the connection diagrams and connector specifications of the RS-232 cable used for
connecting the GOT to a temperature controller.

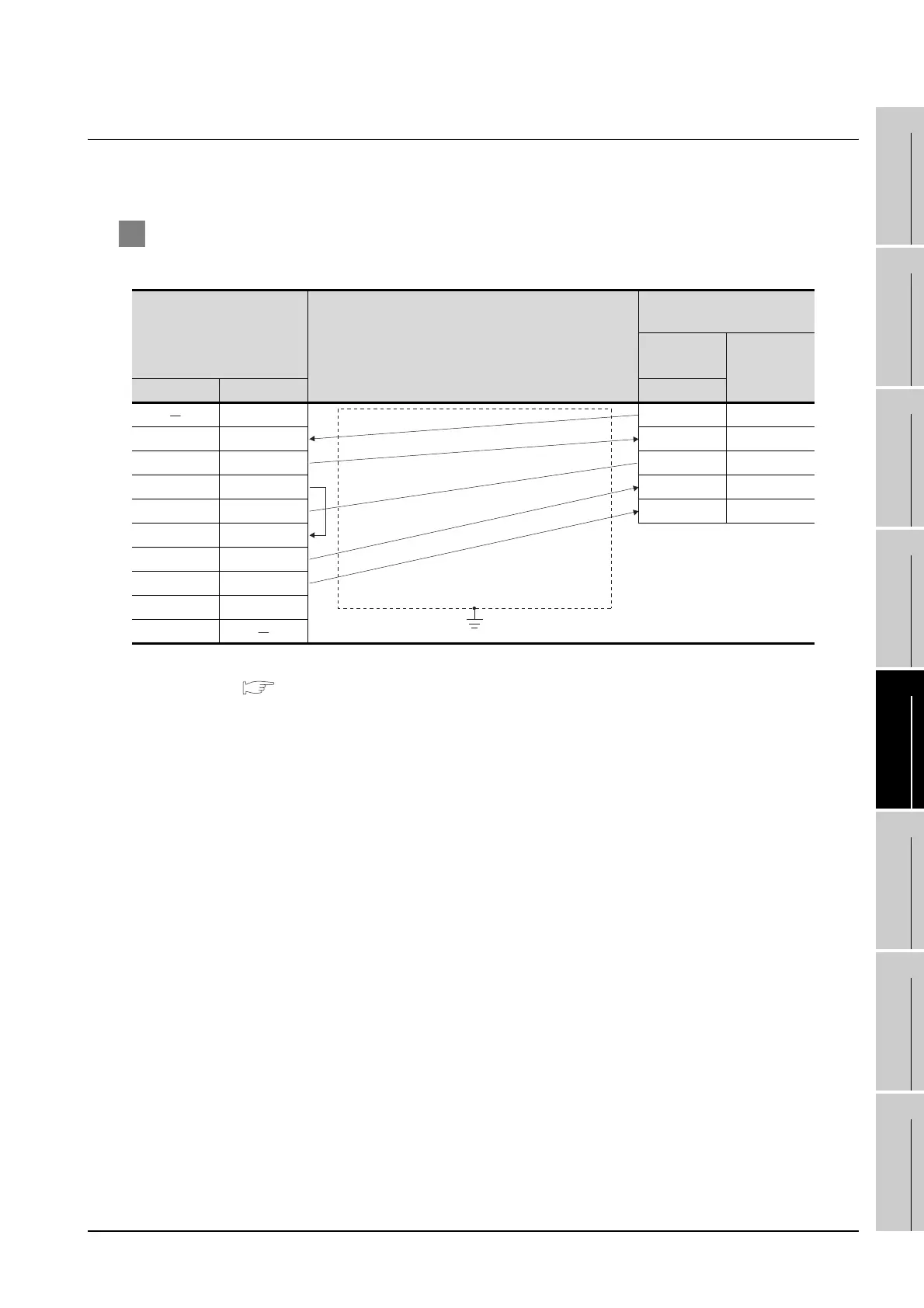

1 Connection diagram
(1) RS-232 cable 1)
*1 For details on the setting method of the TERMINAL mode, refer to the following.
Section 21.4.5 Connecting CMC10L
GOT side
Cable connection and signal direction
YAMATAKE product side
Interface converter(CMC10L)
TERMINAL
Mode *1
Signal name
Signal name Pin No. Pin No.
1 3 SD
RD(RXD) 2 2 RD
SD(TXD) 3 5 SG
ER(DTR) 4 9 CS
SG 5 8 RS
DR(DSR) 6
RS(RTS) 7
CS(CTS) 8
NC 9
FG

Mitsubishi GOT1000 Series Specifications

General

Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Series	GOT1000
Resolution	640 x 480 pixels
Touch Panel Type	Resistive
Interface	RS-232, USB
Storage Temperature	-20 to 60°C
Protection Rating	IP65
Display Type	TFT LCD
Brightness	400 cd/m²
Backlight Life	50, 000 hours
CPU	RISC
Shock Resistance	147 m/s²
Display Size	10.4 inches
