16 - 32
16.4 PLC Side Setting

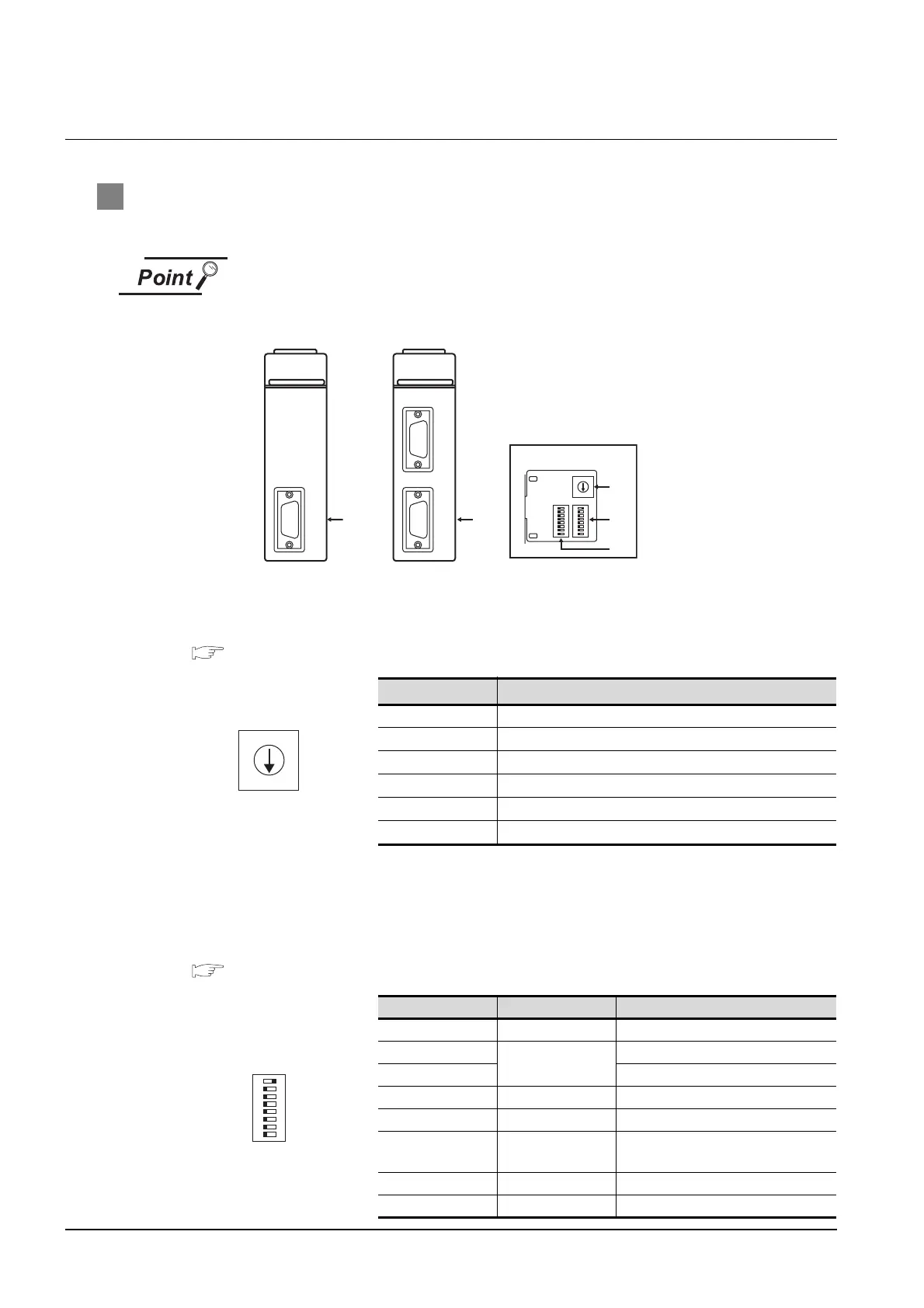

16.4.3 Connecting PC link module (F3LC11-1F, F3LC12-1F)
16.4.3 Connecting PC link module (F3LC11-1F, F3LC12-1F)
1 Switch setting on the PC link module
Set the switches accordingly.
Switch setting
Set the switches before mounting the PC link module to the base unit.
(1) Transmission speed switch (SW1)
Set the same transmission speed setting as that of the GOT side.
For the transmission speed setting on the GOT side, refer to the following.
Section 16.3.3 Setting communication interface (Communication settings)
*1 Only transmission speeds available on the GOT side are shown.
(2) Data format switch (SW2)
Set the character length, parity, stop bit and checksum consistent with the corresponding settings
on the GOT side.
For the settings on the GOT side, refer to the following.
Section 16.3.3 Setting communication interface (Communication settings)
Setting
*1
Transmission speed
4 4800bps
5 9600bps
7 19200bps
9 38400bps
A 57600bps
C 115200bps
Switch No. Description Setting
1 Character length ON (8 bits), OFF (7 bits)
2
Parity
ON, OFF
3 ON (even), OFF (odd)
4 Stop bit ON (2 bits), OFF (1 bit)
5 Checksum ON, OFF
6
End character
specification
OFF
7 Protect function OFF (disabled)
8 Security function OFF (disabled)
A
(1)
Side view indicated by A
(2)
(3)
A
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
1
2
3
4
5
6
7
8
O
F
F
F3LC11-1F F3LC12-1F
2
1
SW2
SW1
1
2
3
4
5
6
7
8
O
F
F
SW3
With right side cover
removed
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
1
2
3
4
5
6
7
8
O
F
F
To Next Page
