4 - 40
4.4 PLC Side Setting
4.4.1 Connecting serial communication module (Q Series)
4.4.1 Connecting serial communication module (Q Series)
Serial communication module (Q Series)
For details of the serial communication module (Q Series), refer to the following
manual.
Q Corresponding Serial Communication Module User's Manual (Basic)

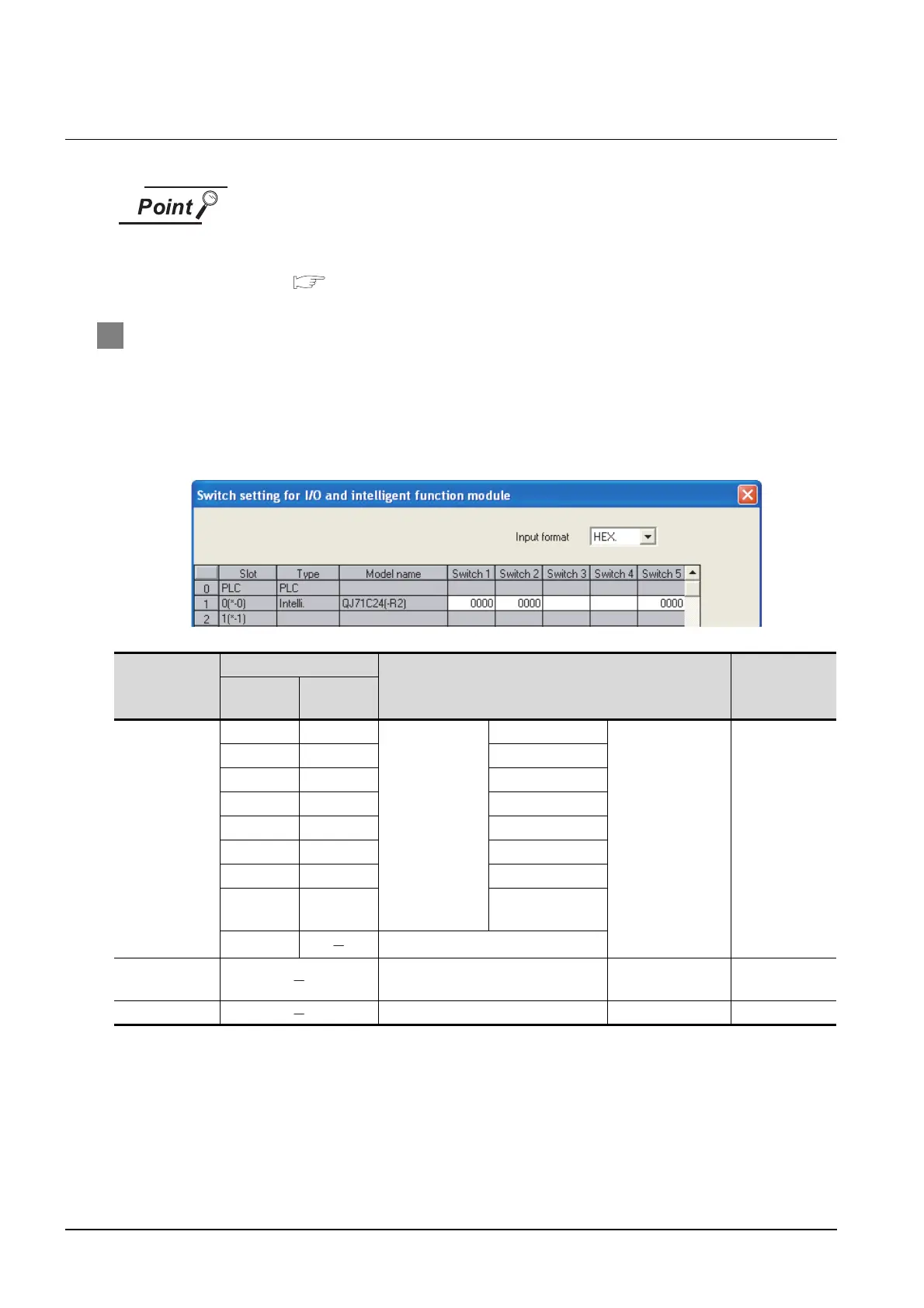

1 [Intelligent function module switch setting] on GX Developer
[The intelligent function module switch setting] on GX Developer is not necessary. (When no [intelligent
function module switch setting] is made, the module runs in the GX Developer connection mode.)
A module can be also connected to a GOT by making the following [intelligent function module switch
setting] on GX Developer.
(1) When connecting to the CH1 side
Switch No.
Bit
Description Setting
Position
Specified
value
Switch 1
b0 OFF
CH1 transmission
settings
*1
Operation setting
(Operates according
to the GOT side
specifications.)
0000H
b1 OFF Data bit
b2 OFF Parity bit
b3 OFF Even/odd parity
b4 OFF Stop bit
b5 OFF Sum check code
b6 OFF Write during RUN
b7 OFF
Setting
modifications
b8 to b15
CH1 transmission speed setting
*2
Switch 2 CH1 Communication protocol setting
GX Developer
connection
0000H
Switch 5 Station number setting 0th station 0000H
To Next Page
