3.1 System Configuration
3.1.6 Connecting to FXCPU (FX3U, FX3UC Series)
3.1.6 Connecting to FXCPU (FX3U, FX3UC Series)

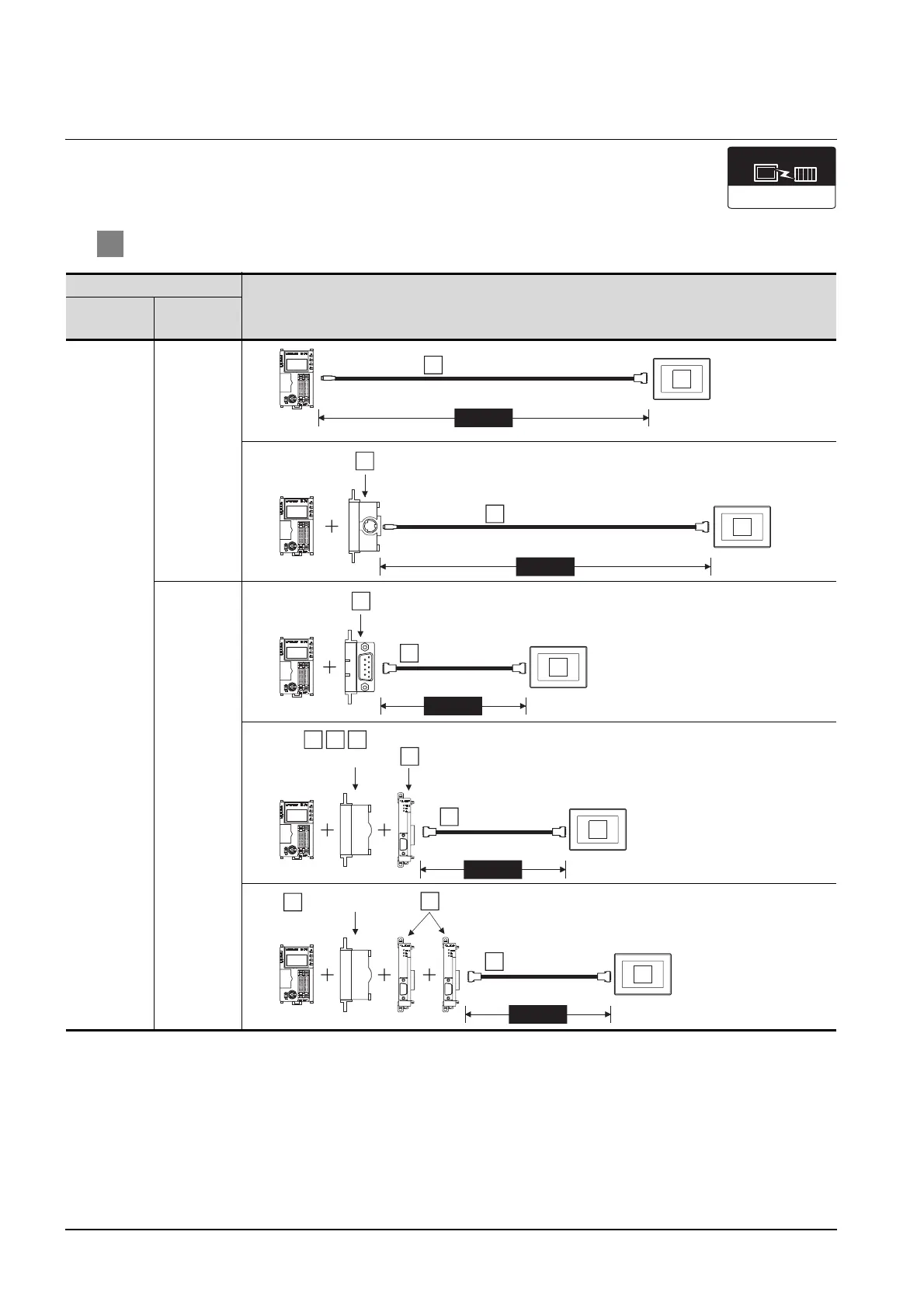

1 System configuration and connection conditions
Connection conditions
System configuration
Number of
GOTs
Distance
1
30m or less
15m or less
MELSEC-FX
Communication driver
MAX30m
8
1
RS-422 cable
MAX30m
8
3
1
RS-422 cable
Function expansion board
MAX15m
9
4
RD
SD
2
RS-232 cable
Function expansion board
MAX15m
9
3 4 5
7
2
RS-232 cable
Function expansion
board
Function adapter
MAX15m
9
5
7
2
RS-232 cable
Function expansion
board
Function adapter

Mitsubishi GOT1000 Series Specifications

General

Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Series	GOT1000
Resolution	640 x 480 pixels
Touch Panel Type	Resistive
Interface	RS-232, USB
Storage Temperature	-20 to 60°C
Protection Rating	IP65
Display Type	TFT LCD
Brightness	400 cd/m²
Backlight Life	50, 000 hours
CPU	RISC
Shock Resistance	147 m/s²
Display Size	10.4 inches
