21 - 38

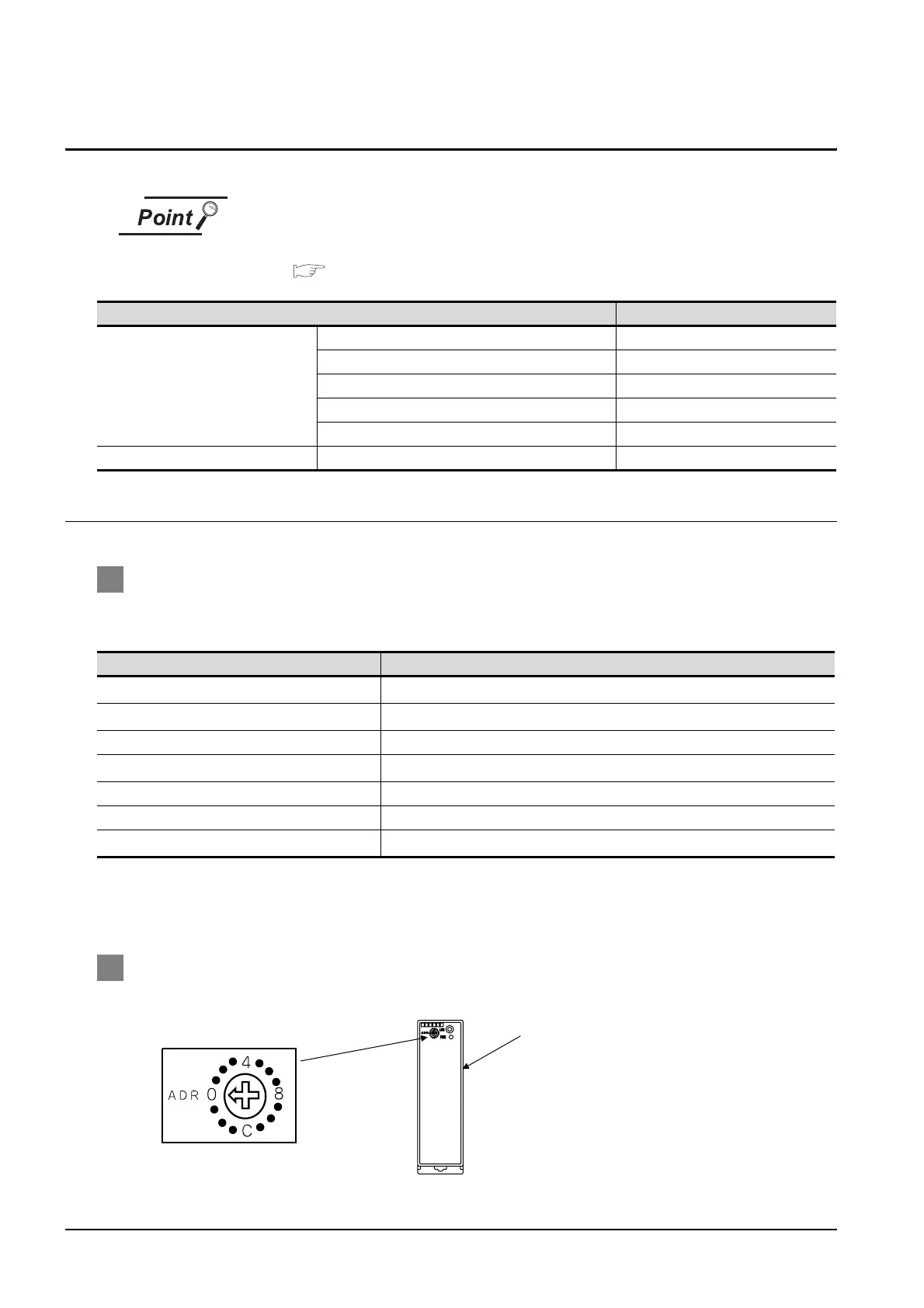

21.4 Temperature Controller Side Setting
21.4.1 Connecting to DMC10
21.4 Temperature Controller Side Setting
(1) YAMATAKE temperature controller
For details of YAMATAKE temperature controller, refer to the following manual.
User's Manual for the YAMATAKE temperature controller
21.4.1 Connecting to DMC10
1 Communication settings
Make the communication settings by operating the Smart Loader Package (SLP-D10) of the
temperature controller.
*1 Set the transmission speed according to the GOT side.
*2 Set to CPL.
*3 Do not set to “0”.
*4 Select the station address without overlapping with that of other units.
2 Station address setting
Set the station address using the rotary switch for the station address.
Model name Reference
Temperature controller
DMC10 Section 21.4.1
SDC15, SDC25/26, SDC35/36 Section 21.4.3
SDC20/21 Section 21.4.4
SDC30/31 Section 21.4.4
SDC40A/40B/40G Section 21.4.2
Interface converter CMC10L Section 21.4.5
Setting items Set value
Transmission speed
*1
9600bps, 19200bps
Communication mode
*2
CPL
Data length 8 bits
Parity bit
*1
Even, none
Stop bit 2 bits
Communication minimum response time 1ms, 10ms, 100ms, 200ms
Station address
*3*4
0 to F
Rotary switch for the station address
Front of the temperature
controller body
