2.2 Preparatory Procedures for Monitoring
2.2.3 Setting communication interface (Communication settings)
2 - 33
1
OVERVIEW
2
BUS CONNECTION
3
DIRECT CONNECTION
TO CPU
4
COMPUTER LINK
CONNECTION
5
MELSECNET/10
CONNECTION (PLC TO
PLC NETWORK)
6
CC-Link CONNECTION
(INTELLIGENT DEVICE
STATION)
7
CC-Link CONNECTION
(Via G4)
8
ETHERNET
CONNECTION
Setting unused I/O slots to empty (0 points) (only when connecting to QCPU (Q
mode))
Setting unused I/O slots as empty slots (0 points) from "PC parameters" "I/O
assignments" of GX Developer allows you to use I/O numbers of "16 points x
number of empty slots" for other purposes.
For details on I/O assignment settings, refer to the following manual:
QCPU User's Manual (Function Explanation, Program Fundamentals)
Example: I/O assignment (when 16 points are assigned to each of all modules
installed with the PLC CPU)
Q35B
Q68B
01CPU 2 3 4
· · · · Slot No.
5 6 7 8 9 10 11 12
Q65B
13 14 15 16 17
X00 to X0F
X10 to X1F
X20 to X2F
X30 to X3F
X40 to X4F
X60 to X6F
X70 to X7F
X80 to X8F
X90 to X9F
X50 to X5F
XA0 to XAF
XB0 to XBF
XC0 to XCF
XE0 to XEF
XF0 to XFF
X100 to X10F
X110 to X11F
XD0 to XDF
18 19 20 21 22 23 24 25 26 27

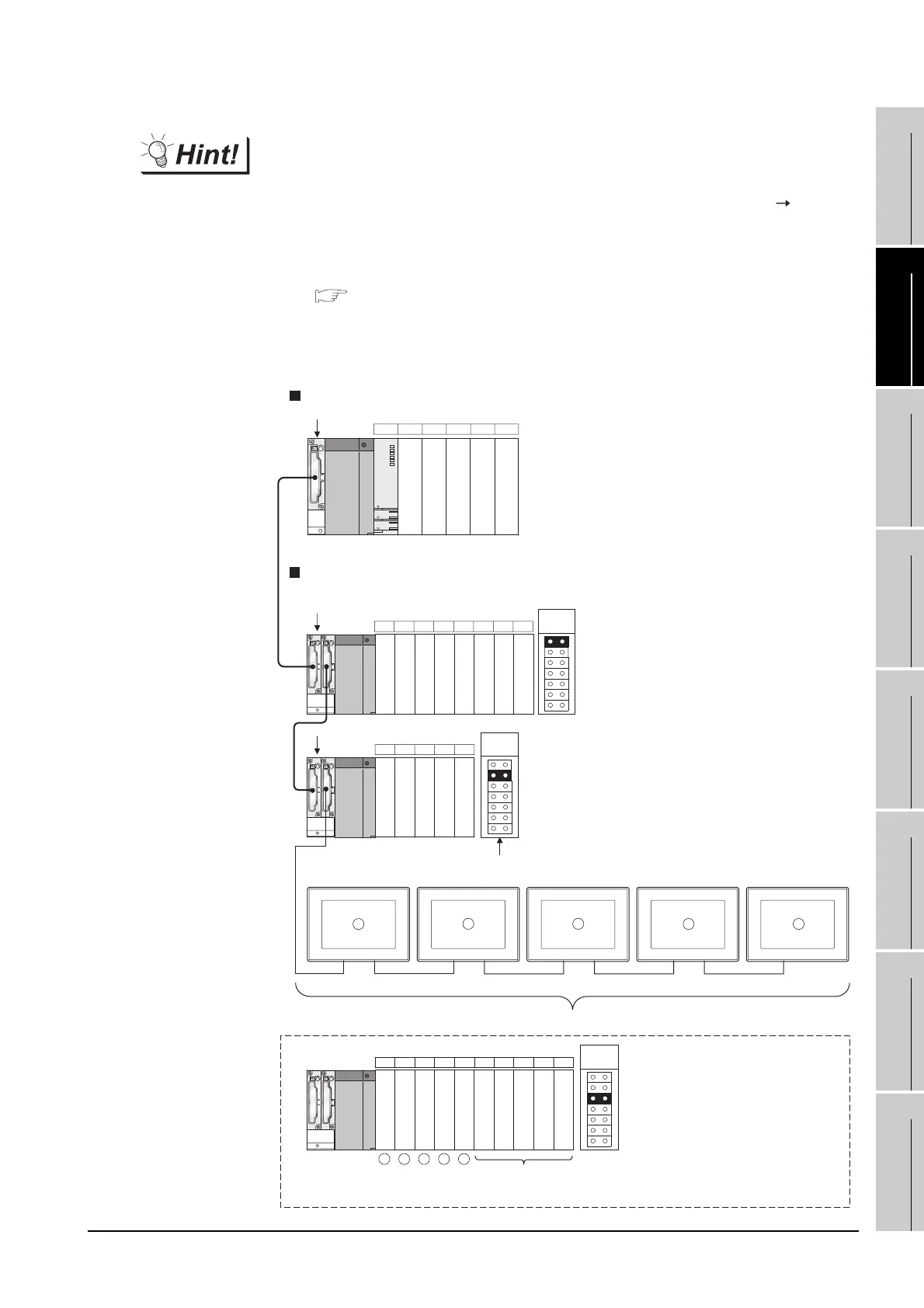

Schematic image of Stage No. for GOT connection viewed from PLC CPU (16 points x 10 slots occupied)
X120 to X12F
X170 to X17F
X130 to X13F
X140 to X14F
X150 to X15F
X160 to X16F
X180 to X18F
X190 to X19F
X1A0 to X1AF
X1B0 to X1BF
Set Empty (0 points)
to unused I/O slots.
Main base unit
Extension base unit
Extension
stage 1
Extension
stage 2
Extension
stage 3
Stage No. setting
connector
1
1
2
2
3
3
4
4
5
5
