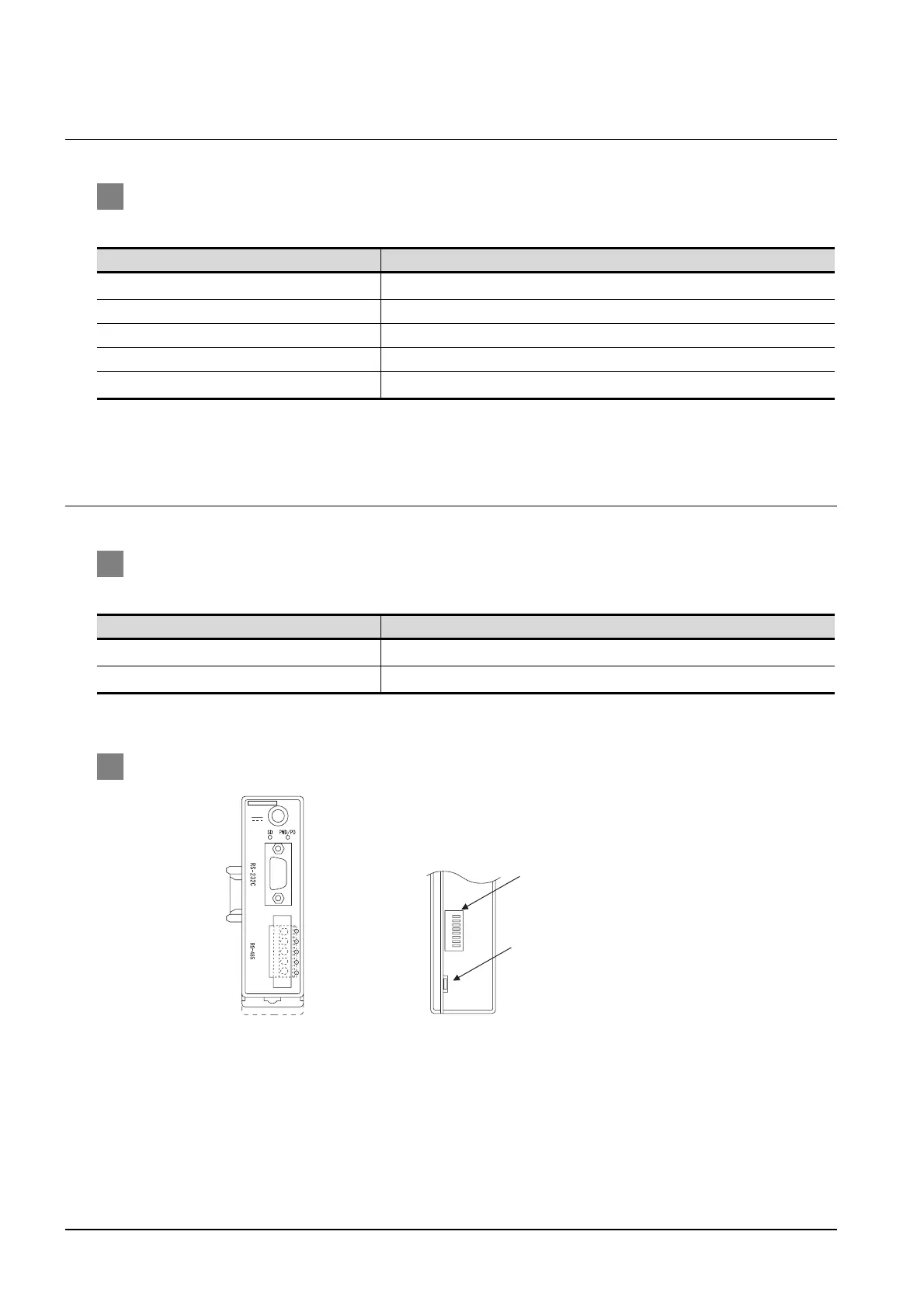

21.4 Temperature Controller Side Setting

21.4.4 Connecting SDC20/21, SDC30/31

1 Communication settings

Make the communication settings by operating the key of the temperature controller.

*1 Set the transmission speed according to the baud rate of the GOT side.

*2 Do not set to “0”.

*3 Select the station address without overlapping with that of other unit.

21.4.5 Connecting CMC10L

1 Communication settings

Make the communication settings by operating the DIP switch of the temperature controller.

*1 Set the transmission speed according to the baud rate of the GOT side.

*2 The sum of data length, parity bit and stop bit

2 Settings by switch

Setting items Set value

Transmission speed

9600bps

Data length 8 bits

Parity bit None

Stop bit 2 bits

Station address

*2*3

0 to 127

Setting items Set value

Transmission speed

9600bps, 19200bps, 38400bps

Frame length

9 to 15 bits

DIP switch

Mode selector switch

Front view of CMC10L body

Rear view of CMC10L body
