Mitsubishi GOT1000 Series User Manual

21.4 Temperature Controller Side Setting
21.4.5 Connecting CMC10L
21 - 41
17
CONNECTION TO ALLEN-BRADLEY PLC
18
CONNECTION TO SIEMENS PLC
19
MICROCOMPUTER CONNECTION
20
CONNECTION TO OMRON TEMPERATURE CONTROLLER
21
CONNECTION TO YAMATAKE TEMPERATURE CONTROLLER
22
CONNECTION TO RKC TEMPERATURE CONTROLLER
23
CONNECTION TO FREQROL SERIES INVERTER
24
SERVO AMPLIFIER CONNECTION

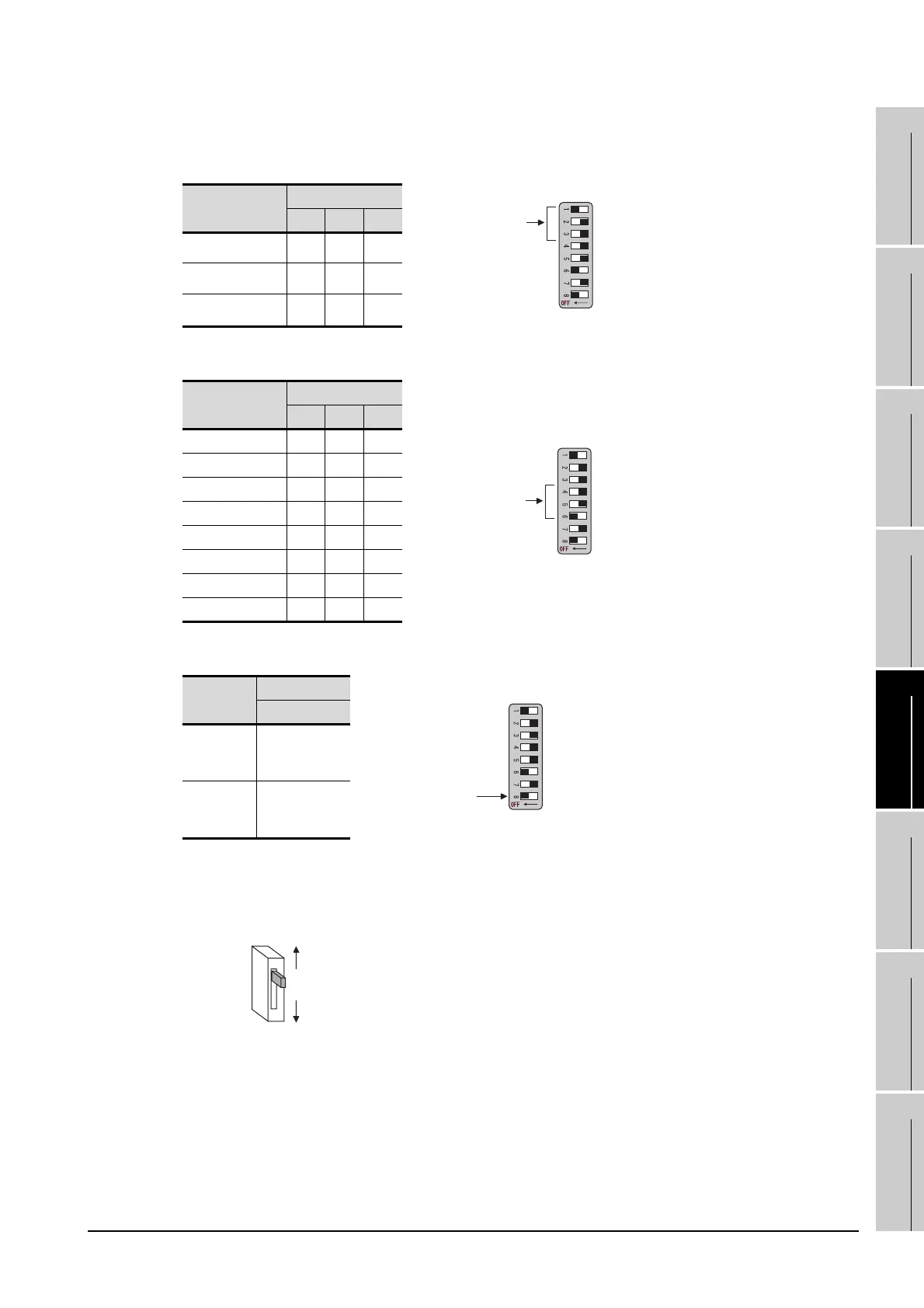

(1) DIP switch settings
(a) Transmission speed settings
(b) Frame length settings
(c) Terminating resistor settings
(2) Mode selector switch settings
Set the switch to “TERMINAL”.
Transmission
speed(bps)
Switch No.
1 2 3
9600 ON OFF ON
19200 OFF ON ON
38400 ON ON ON
Frame length
Switch No.
4 5 6
8 bits OFF OFF OFF
9 bits ON OFF OFF
10 bits OFF ON OFF
11 bits ON ON OFF
12 bits OFF OFF ON
13 bits ON OFF ON
14 bits OFF ON ON
15 bits ON ON ON
Term inat ing
resistor
Switch No.
8
Enable ON
Disable OFF
Set these switches
Set these switches
Set these switches
TERMINA
L
(CROSS)
MODEM
(STRAIGHT)

Mitsubishi GOT1000 Series Specifications

General

Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Series	GOT1000
Resolution	640 x 480 pixels
Touch Panel Type	Resistive
Interface	RS-232, USB
Storage Temperature	-20 to 60°C
Protection Rating	IP65
Display Type	TFT LCD
Brightness	400 cd/m²
Backlight Life	50, 000 hours
CPU	RISC
Shock Resistance	147 m/s²
Display Size	10.4 inches
