Mitsubishi GOT1000 Series User Manual

9 - 14
9.1 System Configuration
9.1.4 Connecting to C1000H/C2000H, CV500/CV1000/CV2000, CVM1
9.1.4 Connecting to C1000H/C2000H, CV500/CV1000/CV2000,
CVM1

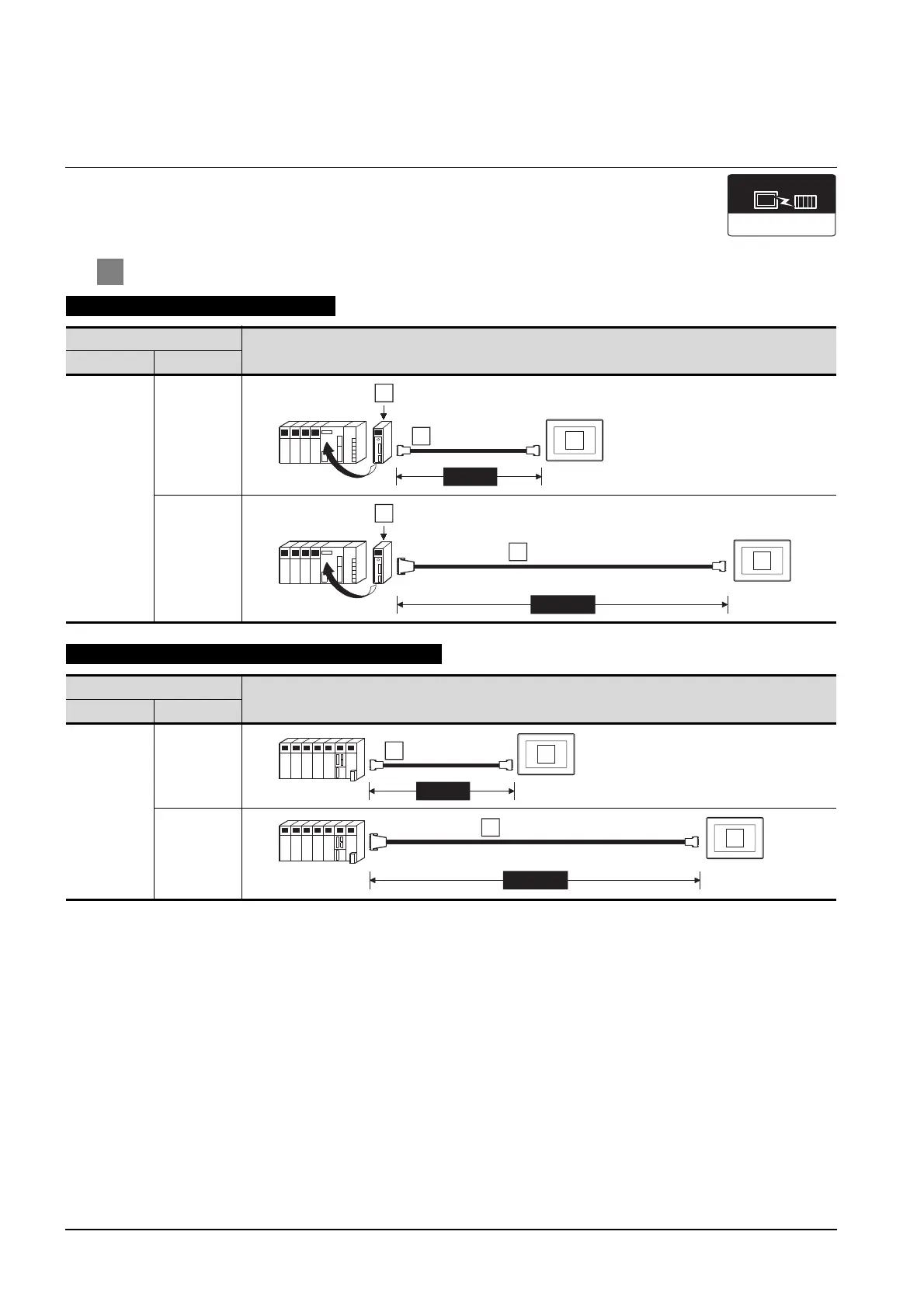

1 System configuration and connection conditions
When connecting to C1000H, C2000H
Connection conditions
System configuration
No. of GOTs Distance
1
15m or less
200m or less
When connecting to CV500, CV1000, CV2000, CVM1
Connection conditions
System configuration
No. of GOTs Distance
1
15m or less
200m or less
OMRON SYSMAC
Communication driver
Rack type host link unit
3
MAX15m
RS-232 cable 3)
4
1
Rack type host link unit
3
MAX200m
RS-422 cable 2)
6
2
MAX15m
RS-232 cable 1)
5
1
MAX200m
RS-422 cable 1)
7
2
