Mitsubishi GOT1000 Series User Manual

9.1 System Configuration
9.1.4 Connecting to C1000H/C2000H, CV500/CV1000/CV2000, CVM1
9 - 15
9
CONNECTION TO OMRON PLC
10
CONNECTION TO KEYENCE PLC
11
CONNECTION TO SHARP PLC
12
CONNECTION TO TOSHIBA PLC
13
CONNECTION TO HITACHI PLC
14
CONNECTION TO MATSUSHITA PLC
15
CONNECTION TO YASKAWA PLC
16
CONNECTION TO YOKOGAWA PLC

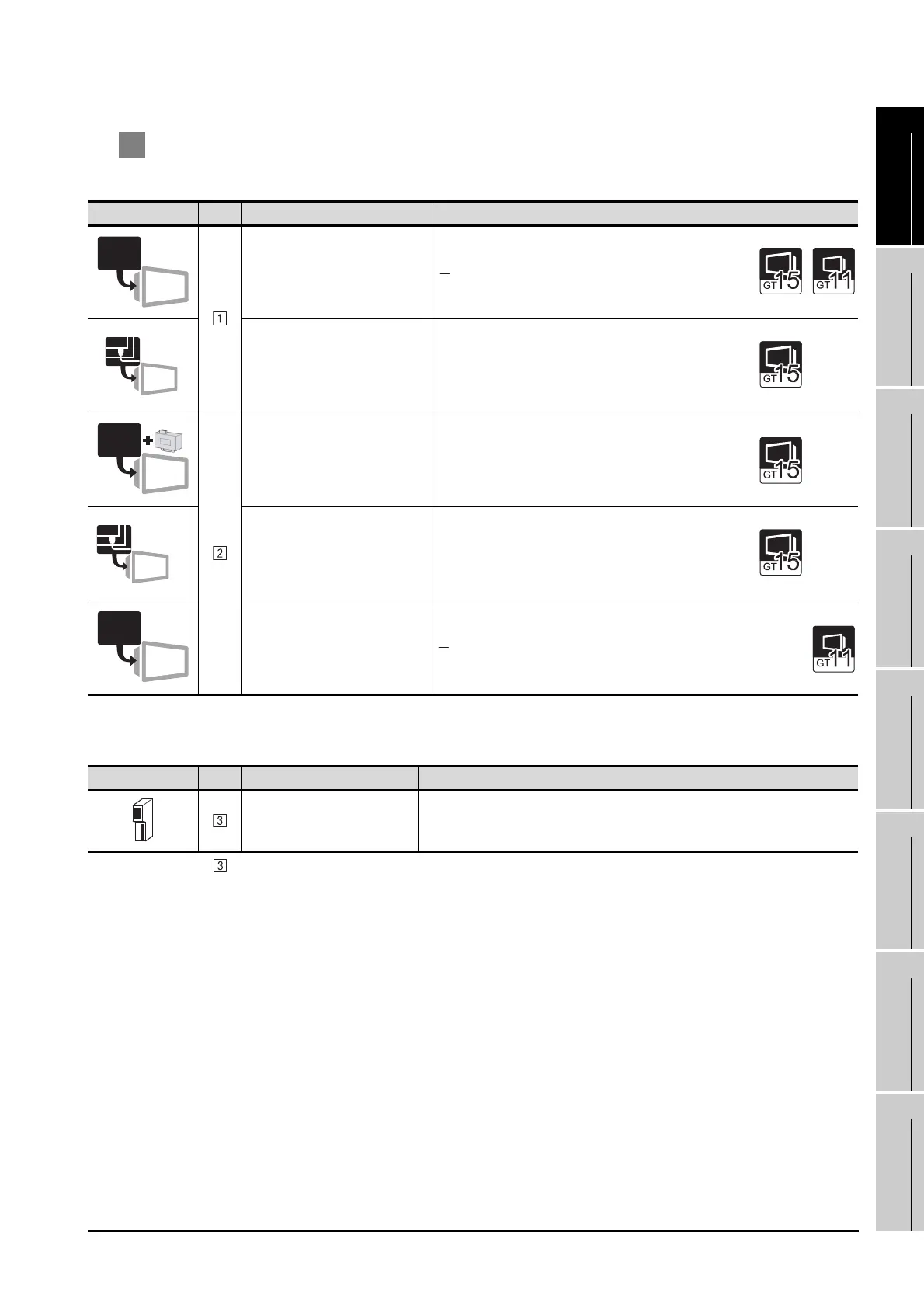

2 System equipment
(1) GOT
*1 Connect it to the RS-232 interface (built into GOT).
(2) PLC
is a product manufactured by OMRON. For details of this product, contact OMRON.
Image No. Name Model name
RS-232 interface
• For RS-232 communication
(Built into GOT)
RS-232 Communication Unit
• For RS-232 communication
GT15-RS2-9P
RS-422 conversion unit
*1
• For RS-422 communication
GT15-RS2T4-9P
RS-422/485 Communication Unit
• For RS-422 communication
GT15-RS4-9S
RS-422 interface
• For RS-422 communication
(Built into GOT)
Image No. Name Model name
Rack type host link unit C500H-LK201-V1
RS-232
RS-232
RS-232
RS-232
RS-422/485
RS-422/485
RS-422

Mitsubishi GOT1000 Series Specifications

General

Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Series	GOT1000
Resolution	640 x 480 pixels
Touch Panel Type	Resistive
Interface	RS-232, USB
Storage Temperature	-20 to 60°C
Protection Rating	IP65
Display Type	TFT LCD
Brightness	400 cd/m²
Backlight Life	50, 000 hours
CPU	RISC
Shock Resistance	147 m/s²
Display Size	10.4 inches
