9 - 16
9.1 System Configuration
9.1.4 Connecting to C1000H/C2000H, CV500/CV1000/CV2000, CVM1

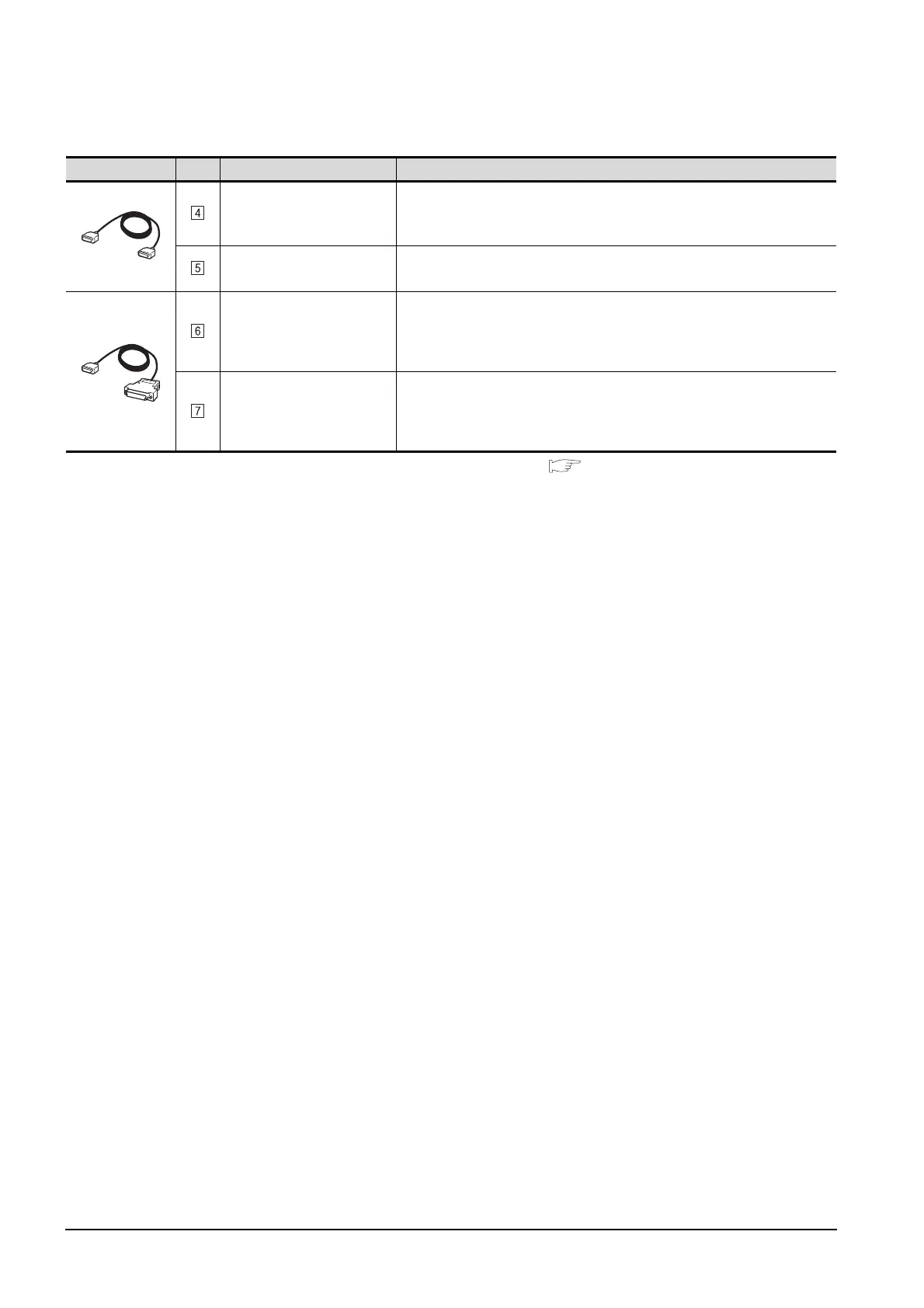

(3) Cable
*1 The RS-232 and RS-422 cable can be prepared by the user. ( Section 9.2 Connection Cable)
Image No. Name Model name
RS-232 cable 3)
*1
• Between rack type host link
unit and GOT
GT09-C30R20103-25P(3m)
RS-232 cable 1)
*1
• Between CPU and GOT
GT09-C30R20101-9P(3m)
RS-422 cable 2)
*1
• Between rack type host link
unit and GOT
GT09-C30R40102-9P(3m)
GT09-C100R40102-9P(10m)
GT09-C200R40102-9P(20m)
GT09-C300R40102-9P(30m)
RS-422 cable 1)
*1
• Between CPU and GOT
GT09-C30R40101-9P(3m)
GT09-C100R40101-9P(10m)
GT09-C200R40101-9P(20m)
GT09-C300R40101-9P(30m)
