9.2 Connection Cable
9.2.1 RS-232 cable
9 - 19
9
CONNECTION TO
OMRON PLC
10
CONNECTION TO
KEYENCE PLC
11
CONNECTION TO
SHARP PLC
12
CONNECTION TO
TOSHIBA PLC
13
CONNECTION TO
HITACHI PLC
14
CONNECTION TO
MATSUSHITA PLC
15
CONNECTION TO
YASKAWA PLC
16
CONNECTION TO
YOKOGAWA PLC

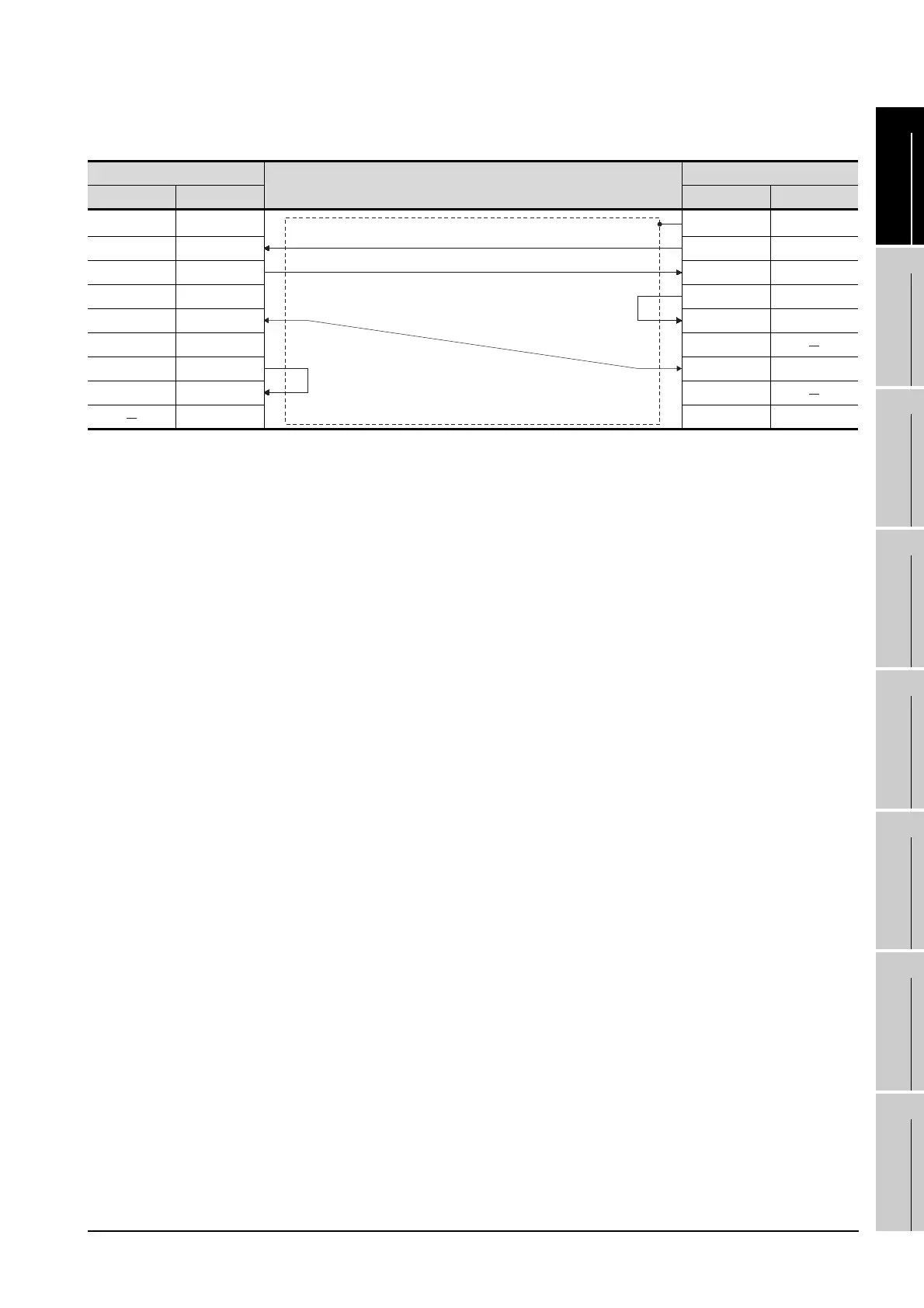

(3) RS-232 cable 3)
*1 GT15: CD, GT11: NC
GOT side
Cable connection and signal direction
OMRON product side
Signal name Pin No. Pin No. Signal name
CD/NC
*1
1 1FG
RD(RXD) 2 2SD
SD(TXD) 3 3RD
ER(DTR) 4 4RS
SG 5 5CS
DR(DSR) 6 6
RS(RTS) 7 7SG
CS(CTS) 8 8
9 20 ER
