3.1 System Configuration
3.1.2 Connecting to QnACPU or ACPU
3 - 5
1
OVERVIEW
2
BUS CONNECTION
3
DIRECT CONNECTION TO CPU
4
COMPUTER LINK CONNECTION
5
MELSECNET/10 CONNECTION (PLC TO PLC NETWORK)
6
CC-Link CONNECTION (INTELLIGENT DEVICE STATION)
7
CC-Link CONNECTION (Via G4)
8
ETHERNET CONNECTION
3.1.2 Connecting to QnACPU or ACPU

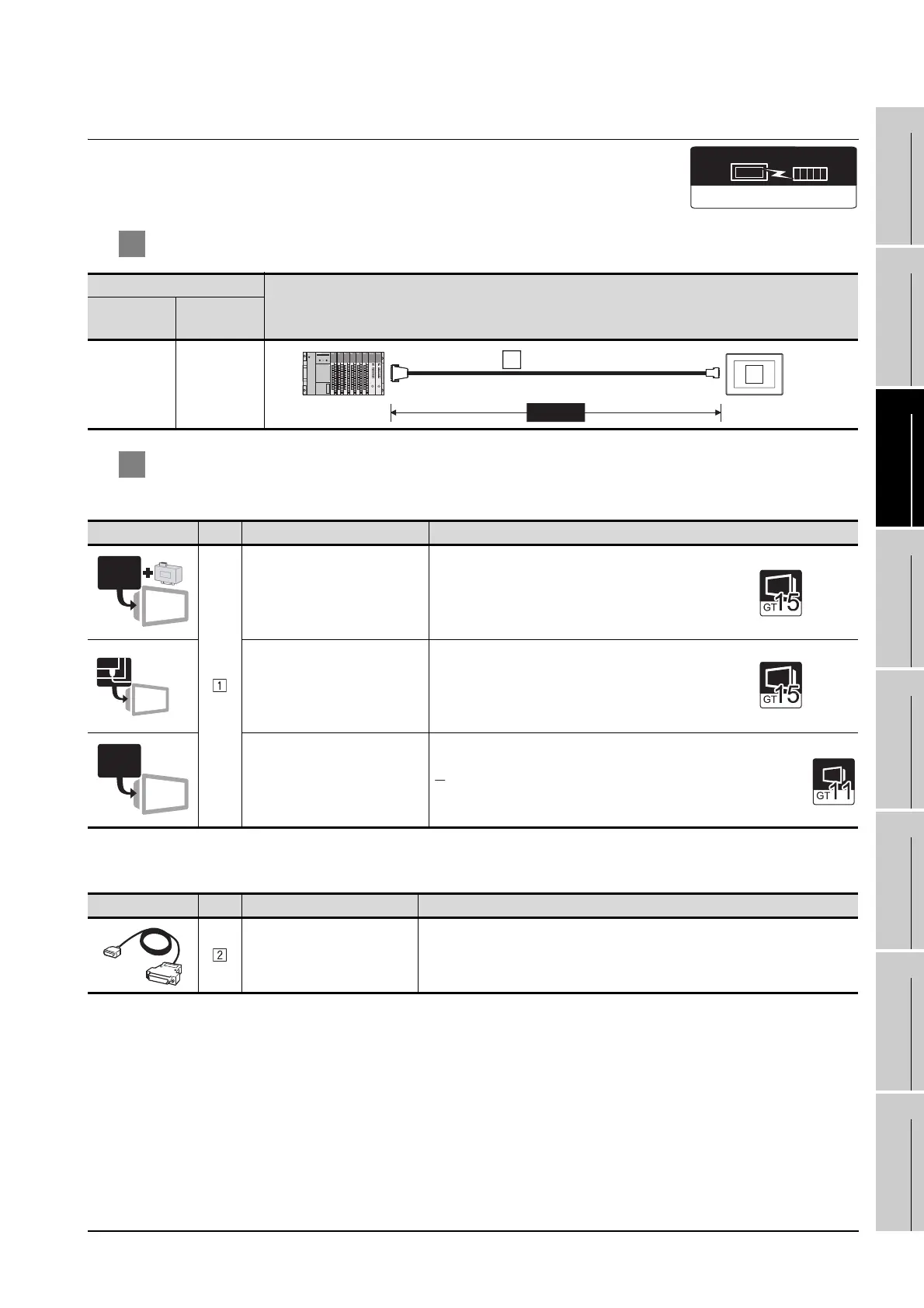

1 System configuration and connection conditions
2 System equipment
(1) GOT
*1 Connect it to the RS-232 interface (built into GOT).
(2) Cable
Connection conditions
System configuration
Number of
GOTs
Distance
1 30m or less
Image No. Name Model name
RS-422 conversion unit
*1
• For RS-422 communication
GT15-RS2T4-9P
RS-422/485 Communication Unit
• For RS-422 communication
GT15-RS4-9S
RS-422 interface
• For RS-422 communication
(Built into GOT)
Image No. Name Model name
RS-422 cable
• Between QnACPU or ACPU
and GOT
GT01-C30R4-25P (3m), GT01-C100R4-25P (10m),
GT01-C200R4-25P (20m), GT01-C300R4-25P (30m)
Communication driver
A/QnA/QCPU,QJ71C24, MELDAS C6*
MAX30m
2
1
RS-422 cable
RS-232
RS-422/485
RS-422/485
RS-422

Mitsubishi GOT1000 Series Specifications

General

Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Series	GOT1000
Resolution	640 x 480 pixels
Touch Panel Type	Resistive
Interface	RS-232, USB
Storage Temperature	-20 to 60°C
Protection Rating	IP65
Display Type	TFT LCD
Brightness	400 cd/m²
Backlight Life	50, 000 hours
CPU	RISC
Shock Resistance	147 m/s²
Display Size	10.4 inches
