6.3 PLC Side Setting

6.3.1 Connecting to CC-Link module (Q Series)

This section describes the settings of the GOT and CC-Link module (Q Series) in the case of system

configuration shown as .

CC-Link module (Q Series)

For details of the CC-Link module (Q Series), refer to the following manual.

CC-Link System Master/Local Module User's Manual QJ61BT11N

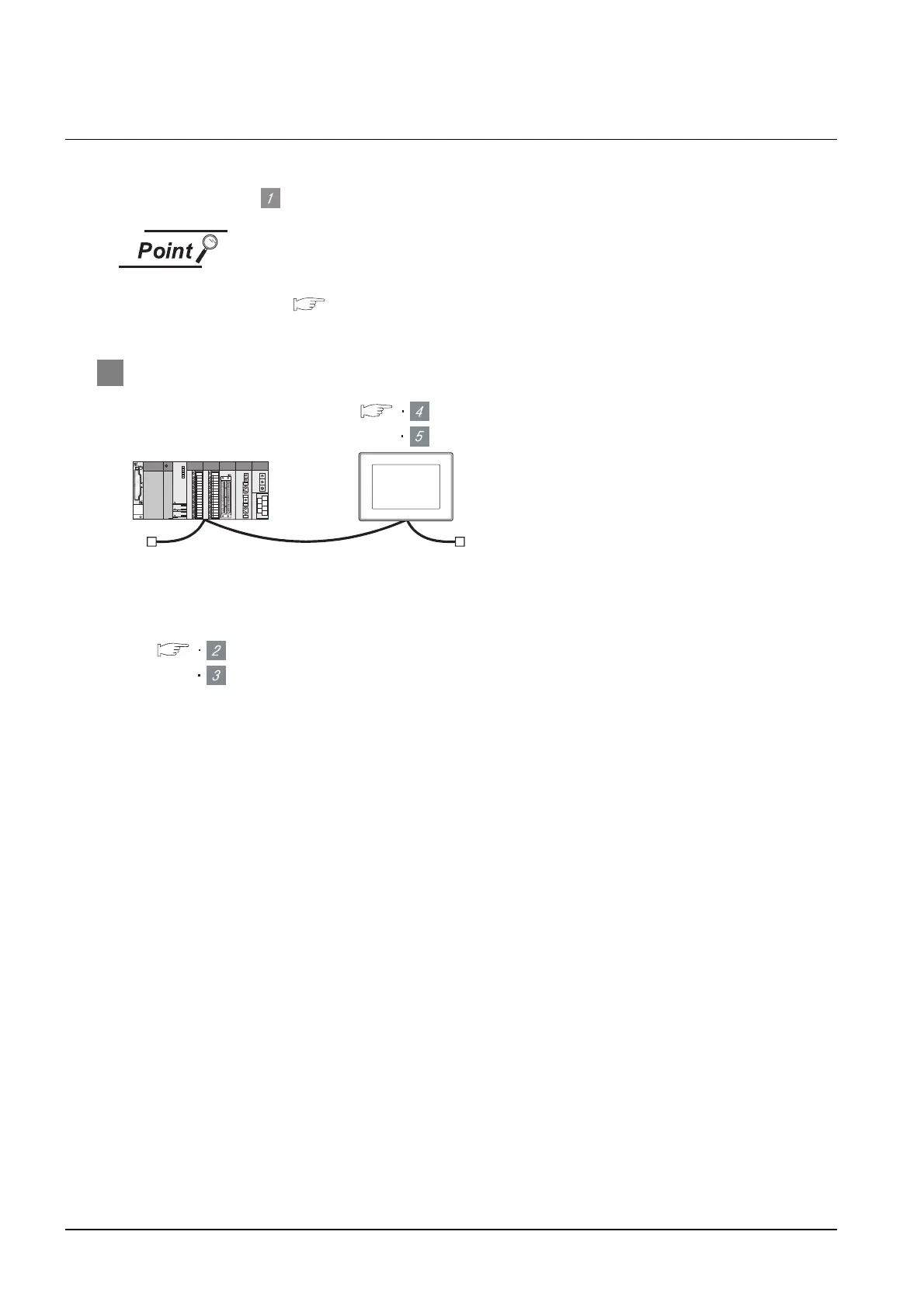

1 System configuration

*1 The CC-Link module is mounted on the base unit slot 0.

The Start I/O No. of the CC-Link module is set to "0"

<CC-Link module>

Type : Master station

Station No. : Station No.0

Mode : Remote net (Ver.1 mode)

All connect count : 1

Transmission speed : 156kbps

<GOT> (Use the default value for settings other than the following.)

Station type : Intelligent device station

Station No. : Station No.1

Number of

stations occupied

Exclusive station 1

Transmission speed : 156kbps

Switch setting of CC-Link module (Q Series)

[Network parameter] of GX Developer

[Communication settings] of GT Designer 2

Settings of CC-Link communication unit

(Use the default value for the settings other than the following.)
