2.2 Preparatory Procedures for Monitoring

2.2.1 Installing OS onto GOT

2 - 27

OVERVIEW

BUS CONNECTION

DIRECT CONNECTION

TO CPU

COMPUTER LINK

CONNECTION

MELSECNET/10

CONNECTION (PLC TO

PLC NETWORK)

CC-Link CONNECTION

(INTELLIGENT DEVICE

STATION)

CC-Link CONNECTION

(Via G4)

ETHERNET

CONNECTION

2.2.1 Installing OS onto GOT

Install the standard monitor OS, communication driver and option OS onto the GOT.

For the OS installation methods, refer to the following manual.

GT Designer2 Version Basic Operation/Data Transfer Manual

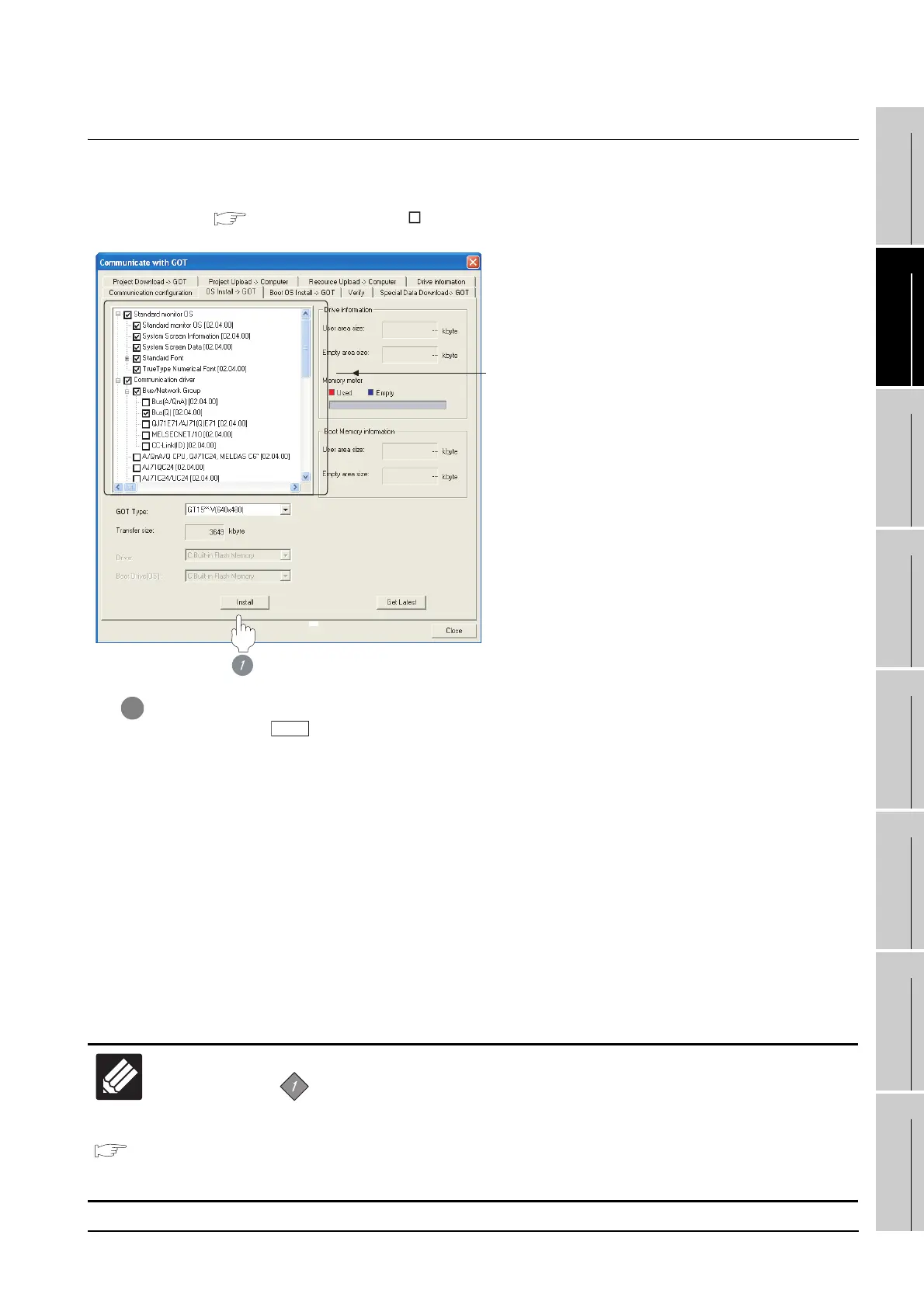

1 Check-mark a desired standard monitor OS, communication driver, option OS, and extended function

OS, and click the button.

Section 2.4

Communication

Check Sheet

Write down the items selected in this section to the check sheet.

OS selection

• Standard monitor OS : Version, font

• Communication driver : Version

• Option OS : Name of the option OS, version

Check either of the following under the Communication driver.

• When connecting to QCPU (Q mode) or motion controller CPU

(Q Series): Bus (Q)

• When connecting to other than the above: Bus (A/QnA)

Install

Write Check

Sheet
