27.1 Direct Connection To CPU
27.1.8 Attaching communication unit and connecting cable
27 - 15
25
BAR CODE READER
CONNECTION
26
PRINTER CONNECTION
27
CNC CONNECTION
28
MULTI-CHANNEL
FUNCTION
29
FA TRANSPARENT
FUNCTION
30
MULTIPLE-GT11
CONNECTION FUNCTION
31
GATEWAY FUNCTION INDEX
When using the RS-422 conversion unit
On "Communication settings" on the utility, make setting so that 5V DC power is
supplied to the RS-422 conversion unit from the RS-232 interface on the GOT.
For details on the utility, refer to the following manual:
GT User's Manual

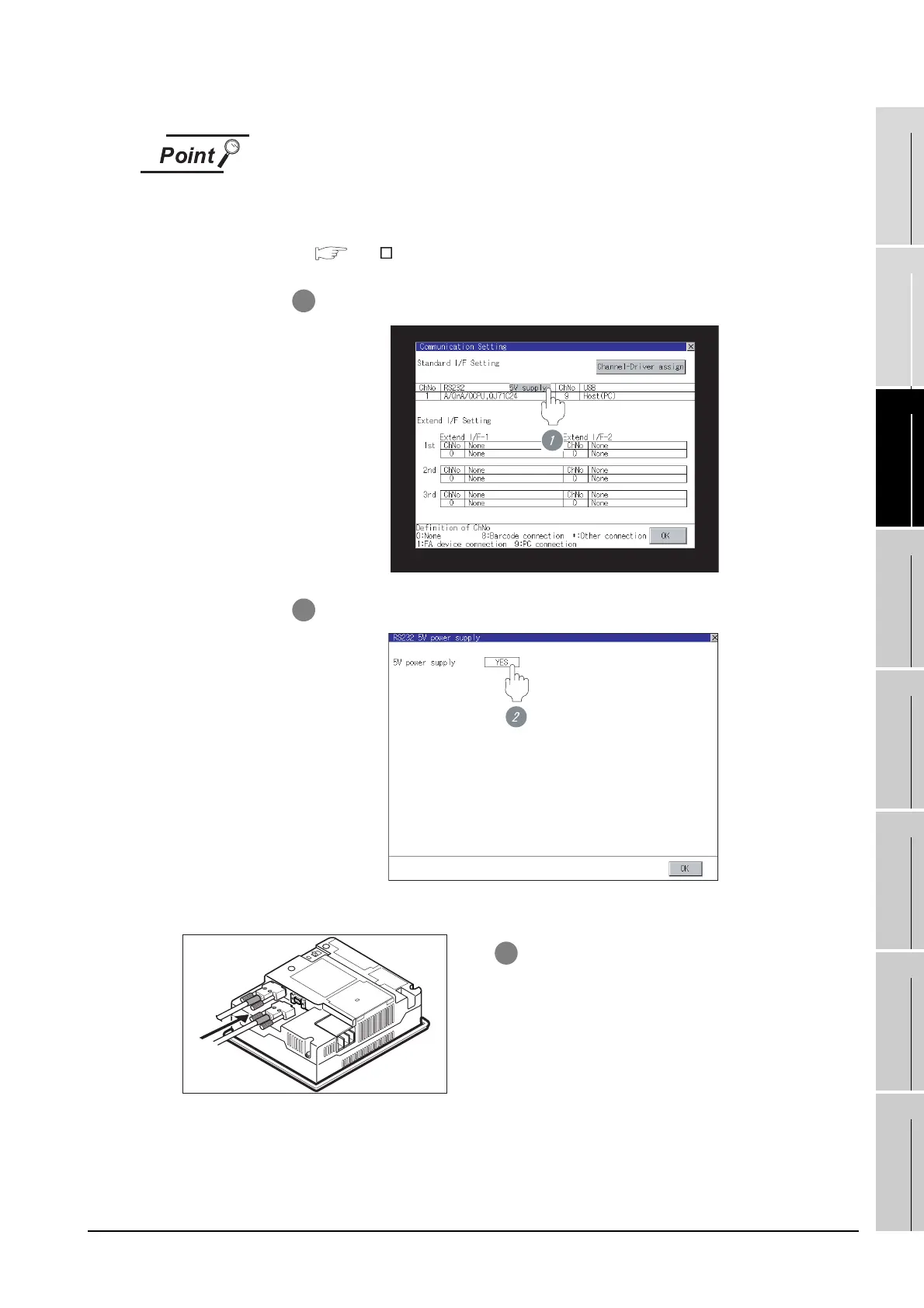

(b) In the case of the GT11
1 Touch [5V supply].
2 Set [5V power supply] to "YES".
1 Connect the RS-422 cable to the RS-422
interface on the GOT.
