27.4 Ethernet Connection

27.4.9 Checking for normal monitoring

27 - 77

BAR CODE READER

CONNECTION

PRINTER CONNECTION

CNC CONNECTION

MULTI-CHANNEL

FUNCTION

FA TRANSPARENT

FUNCTION

MULTIPLE-GT11

CONNECTION FUNCTION

GATEWAY FUNCTION INDEX

(2) When using the "PING Test" of GT Designer2

Select [Communication] [Communication configuration] "Ethernet" and to display

"PING Test".

(1) When abnormal communication

At abnormal communication, check the followings and execute the Ping command again.

• Mounting condition of Ethernet communication unit

• Cable connecting condition

• Confirmation of "Communication settings"

• IP address of GOT svpecified by Ping command

3 Confirming the CNC side setting

When connecting the GOT, setting is required for the CNC side.

Confirm if the CNC side setting is correct.

Section 27.4.10 CNC Side Settings

Test

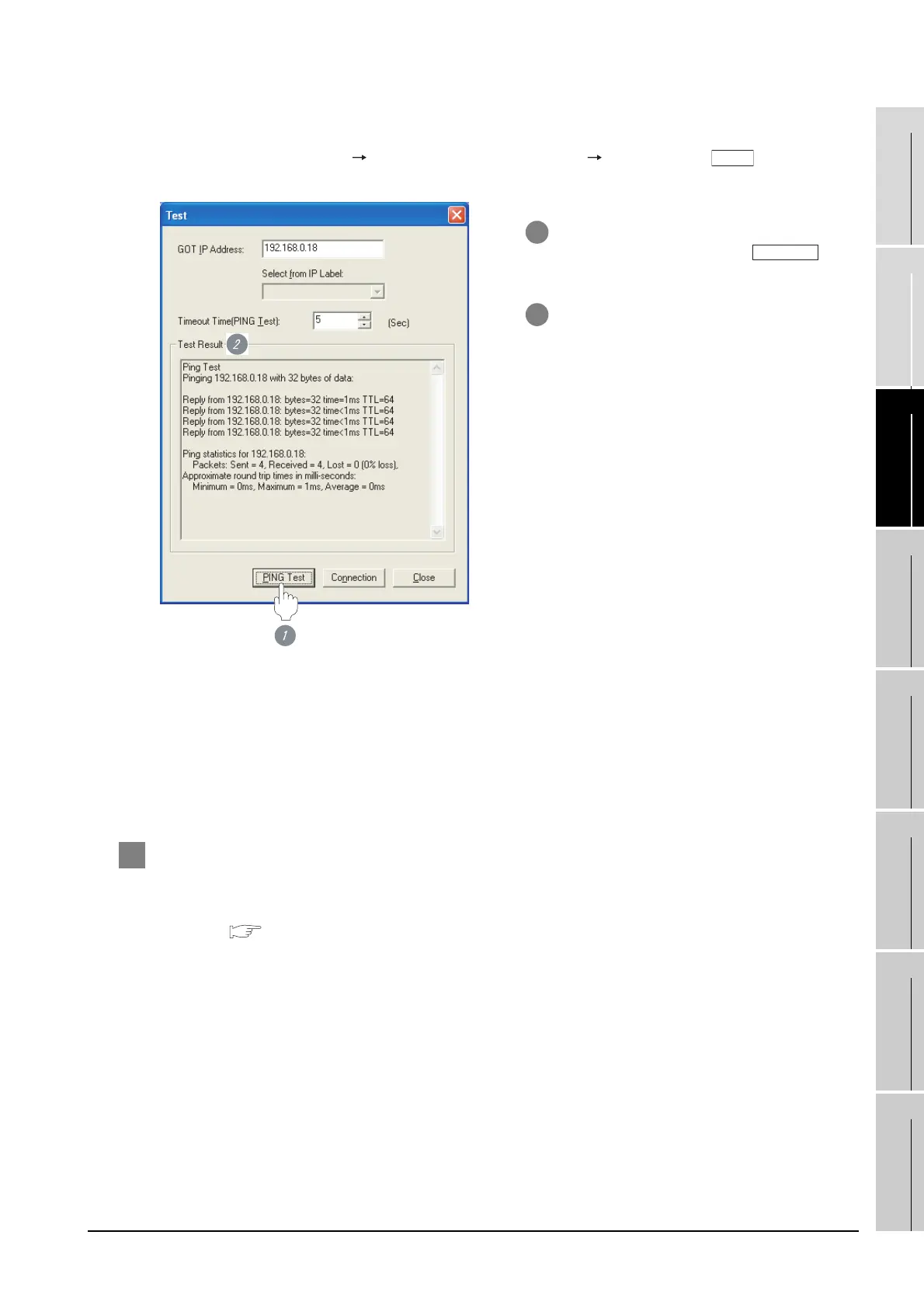

1 Specify the "GOT IP address" of the

"PING Test" and click on the

button.

2 The "Test Result" is displayed after the

"PING Test" is finished.

PING Test
