27.4 Ethernet Connection
27.4.9 Checking for normal monitoring
27 - 79
25
BAR CODE READER
CONNECTION
26
PRINTER CONNECTION
27
CNC CONNECTION
28
MULTI-CHANNEL
FUNCTION
29
FA TRANSPARENT
FUNCTION
30
MULTIPLE-GT11
CONNECTION FUNCTION
31
GATEWAY FUNCTION INDEX

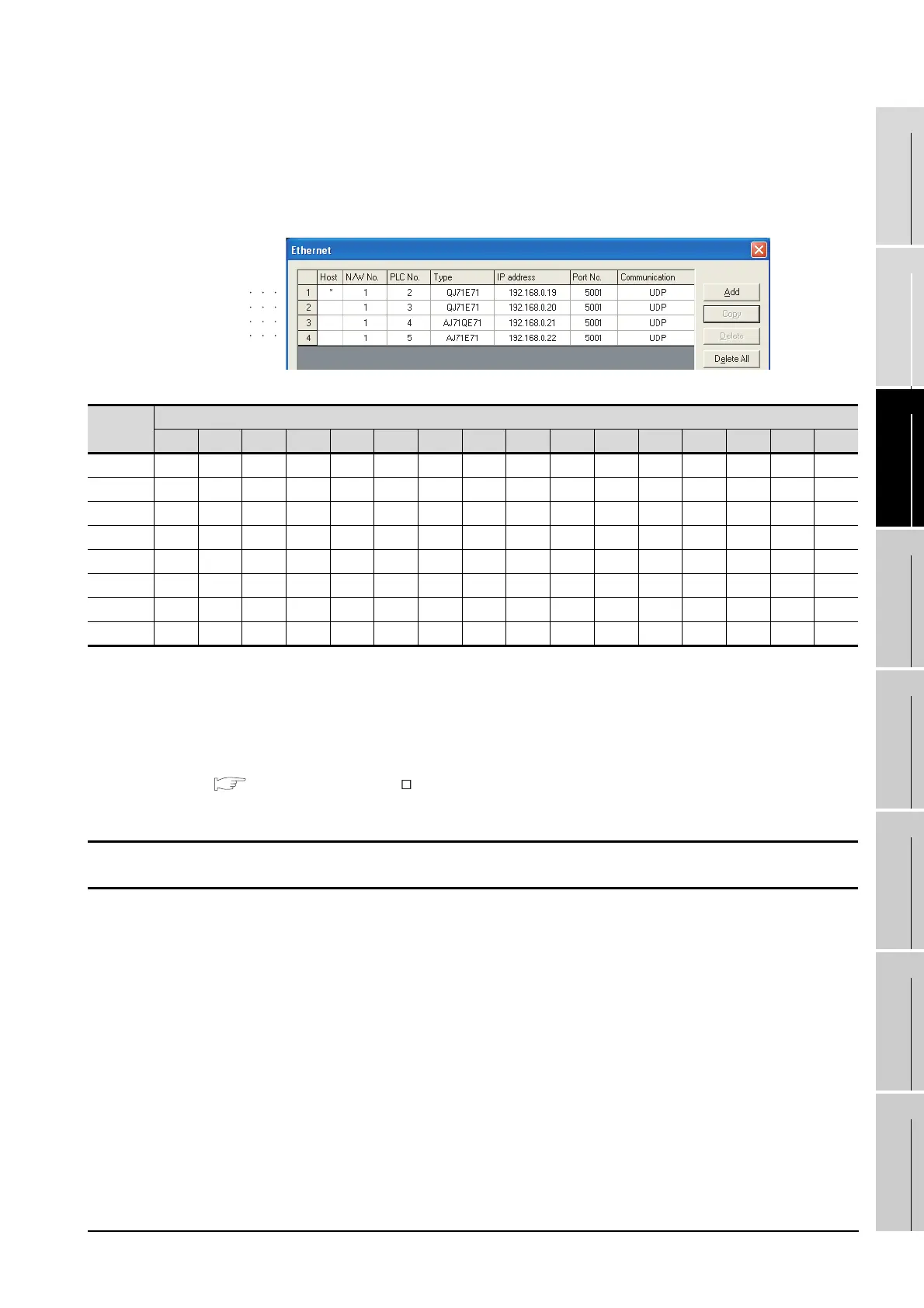

(b) Faulty station information (GS231 to GS238)
• The bit of the Ethernet setting No. corresponding to the faulty station is set.
0: Normal
1: Abnormal
• The bit is reset after the fault is recovered.
(2) Precautions of station monitoring function
This function is not applicable to the multiple CPU system in which the CPU No. is assigned at the
device setting of GT Designer2.
For details of GT Designer2, refer to the following manual.
GT Designer2 Version Screen Design Manual
5
Device
Ethernet setting No.
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
GS231 16151413121110987654321
GS232 32313029282726252423222120191817
GS233 48474645444342414039383736353433
GS234 64636261605958575655545352515049
GS235 80797877767574737271706968676665
GS236 96959493929190898887868584838281
GS237 112 111 110 109 108 107 106 105 104 103 102 101 100 99 98 97
GS238 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113
All settings related to communications are complete now.
Create screens on GT Designer2 and download the project data again.
GS231 bit 0
GS231 bit 1
GS231 bit 2
GS231 bit 3
