31 - 14

31.2 Preparatory Procedures for Monitoring

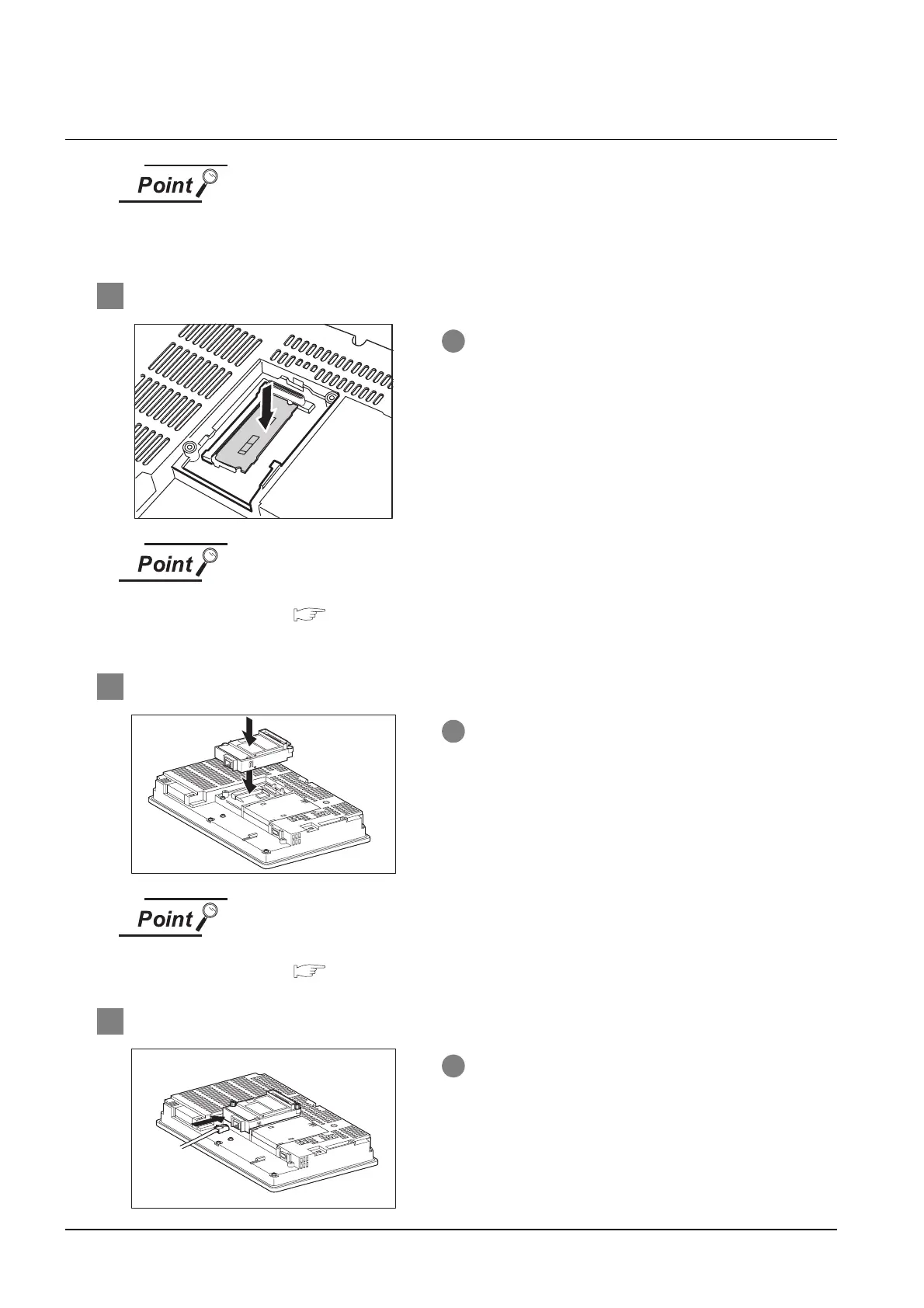

31.2.5 Attacing communication unit and connecting cable

Precautions for cable connection or installation of the option function board or

communication unit

Before installing the option function board or communication unit or connecting

cables, shut off all phases of the power supply to the GOT.

1 Attacing the Option function board

Option function board

For details on the option function board, refer to the following manual:

GT15 OPTION FUNCTION BOARD/OPTION FUNCTION BOARD WITH

ADD-ON MEMORY User's Manual

2 Attacing the communication unit

Ethernet communication unit

For details on the Ethernet communication unit, refer to the following manual:

GT15 Ethernet Communication Unit User's Manual

3 Connecting the cable

1 Attach the option function board to the option

function board interface on the GOT.

1 Attach the Ethernet communication unit to the

extension unit connector on the GOT.

1 Connect the twisted pair cable to the Ethernet

communication unit.
