4.1 System Configuration
4.1.1 Connecting to QCPU (Q mode)
4 - 3
1
OVERVIEW
2
BUS CONNECTION
3
DIRECT CONNECTION TO CPU
4
COMPUTER LINK CONNECTION
5
MELSECNET/10 CONNECTION (PLC TO PLC NETWORK)
6
CC-Link CONNECTION (INTELLIGENT DEVICE STATION)
7
CC-Link CONNECTION (Via G4)
8
ETHERNET CONNECTION

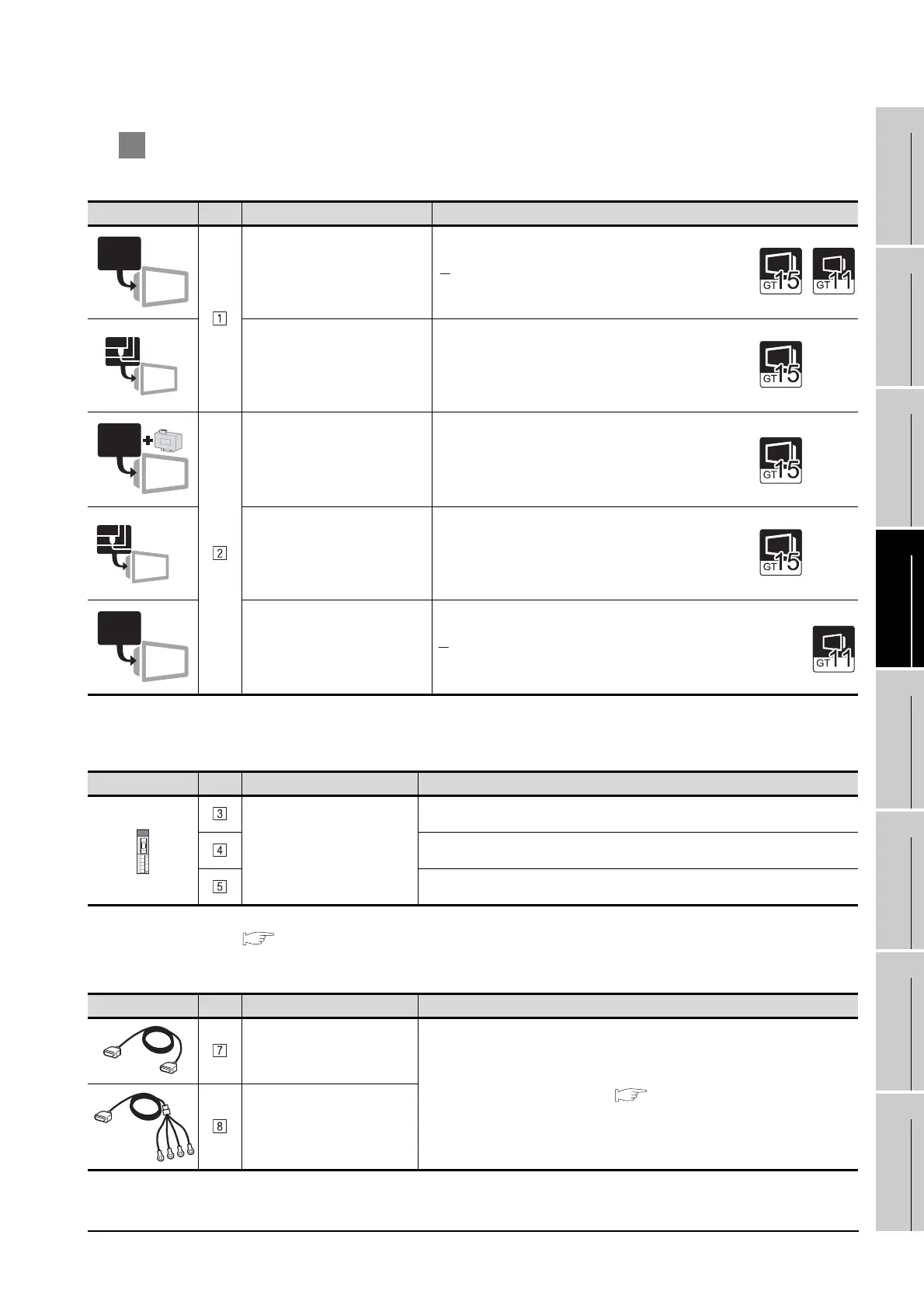

2 System equipment
(1) GOT
*1 Connect it to the RS-232 interface (built into GOT).
(2) PLC
*2 For details on the system configuration on the serial communication module side, refer to the following manual.
Q Corresponding Serial Communication Module User’s Manual (Basic)
(3) Cable
Image No. Name Model name
RS-232 interface
• For RS-232 communication
(Built into GOT)
RS-232 Communication Unit
• For RS-232 communication
GT15-RS2-9P
RS-422 conversion unit
*1
• For RS-422 communication
GT15-RS2T4-9P
RS-422/485 Communication Unit
• For RS-422 communication
GT15-RS4-9S
RS-422 interface
• For RS-422 communication
(Built into GOT)
Image No. Name Model name
Serial communication module
*2
QJ71C24, QJ71C24N
QJ71C24-R2, QJ71C24N-R2
QJ71C24N-R4
Image No. Name Model name
RS-232 cable 1)
(To be prepared by the user. Section 4.2 Connection Cable)
RS-422 cable
RS-232
RS-232
RS-232
RS-232
RS-422/485
RS-422/485
RS-422
