Mitsubishi GOT1000 Series User Manual

5.2 Preparatory Procedures for Monitoring
5.2.5 Attaching communication unit and connecting cable
5 - 15
1
OVERVIEW
2
BUS CONNECTION
3
DIRECT CONNECTION TO CPU
4
COMPUTER LINK CONNECTION
5
MELSECNET/10 CONNECTION (PLC TO PLC NETWORK)
6
CC-Link CONNECTION (INTELLIGENT DEVICE STATION)
7
CC-Link CONNECTION (Via G4)
8
ETHERNET CONNECTION
5.2.5 Attaching communication unit and connecting cable
Cautions when attaching the communication unit and connecting the cable
Shut off all phases of the GOT power supply before attaching the communication
unit and connecting the cable.
1 Attaching the communication unit
MELSECNET/10 communication unit
For details of the MELSECNET/10 communication unit, refer to the following
manual.
GT15 MELSECNET/10 communication unit User's Manual

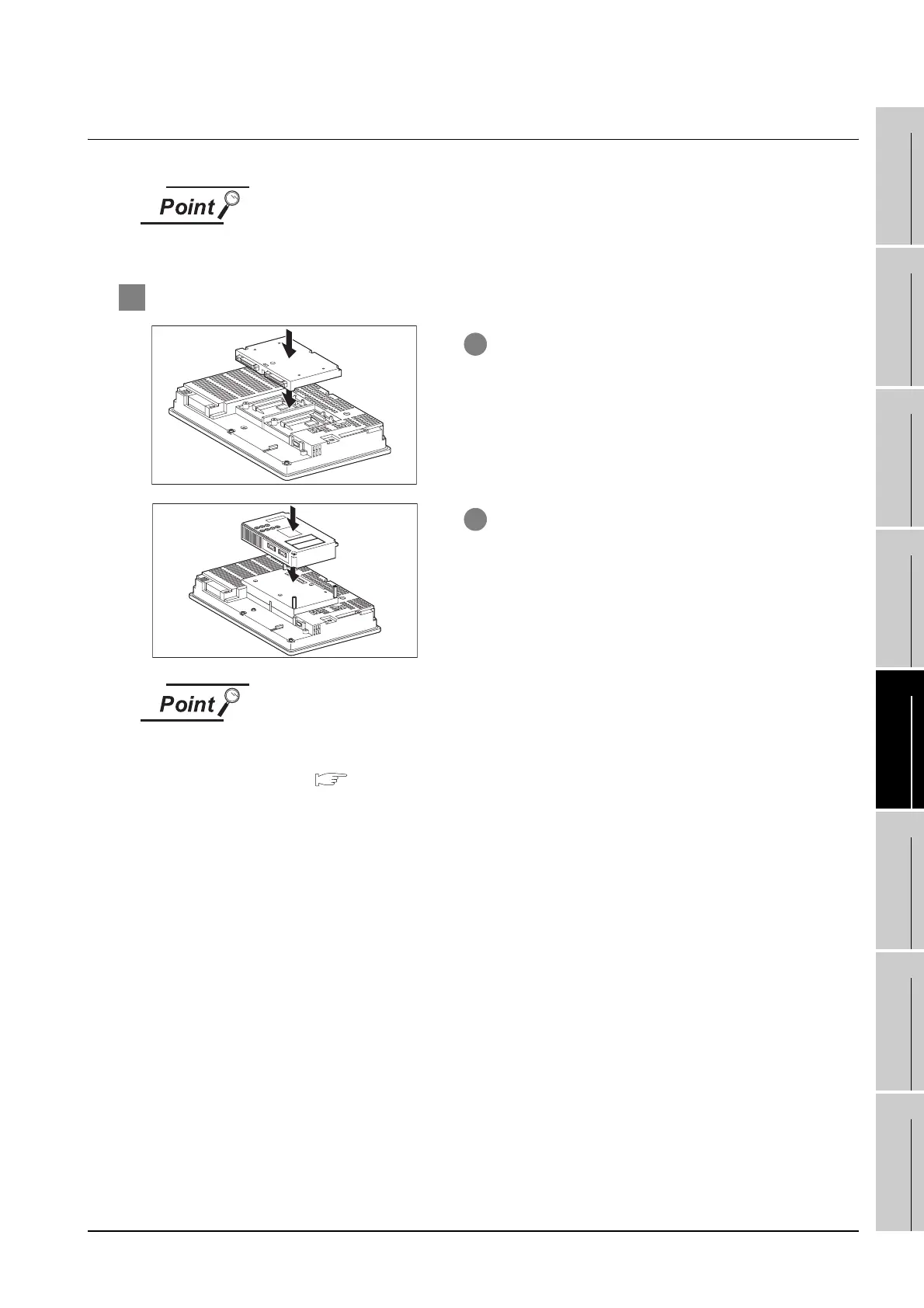

1 Mount the interface converter unit to the extension
unit connector of the GOT.
2 Mount the MELSECNET/10 communication unit to
the interface converter unit.

Mitsubishi GOT1000 Series Specifications

General

Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Series	GOT1000
Resolution	640 x 480 pixels
Touch Panel Type	Resistive
Interface	RS-232, USB
Storage Temperature	-20 to 60°C
Protection Rating	IP65
Display Type	TFT LCD
Brightness	400 cd/m²
Backlight Life	50, 000 hours
CPU	RISC
Shock Resistance	147 m/s²
Display Size	10.4 inches
