7.2 Preparatory Procedures for Monitoring
7.2.5 Attaching communication unit and connecting cable
7 - 13
1
OVERVIEW
2
BUS CONNECTION
3
DIRECT CONNECTION
TO CPU
4
COMPUTER LINK
CONNECTION
5
MELSECNET/10
CONNECTION (PLC TO
PLC NETWORK)
6
CC-Link CONNECTION
(INTELLIGENT DEVICE
STATION)
7
CC-Link CONNECTION
(Via G4)
8
ETHERNET
CONNECTION

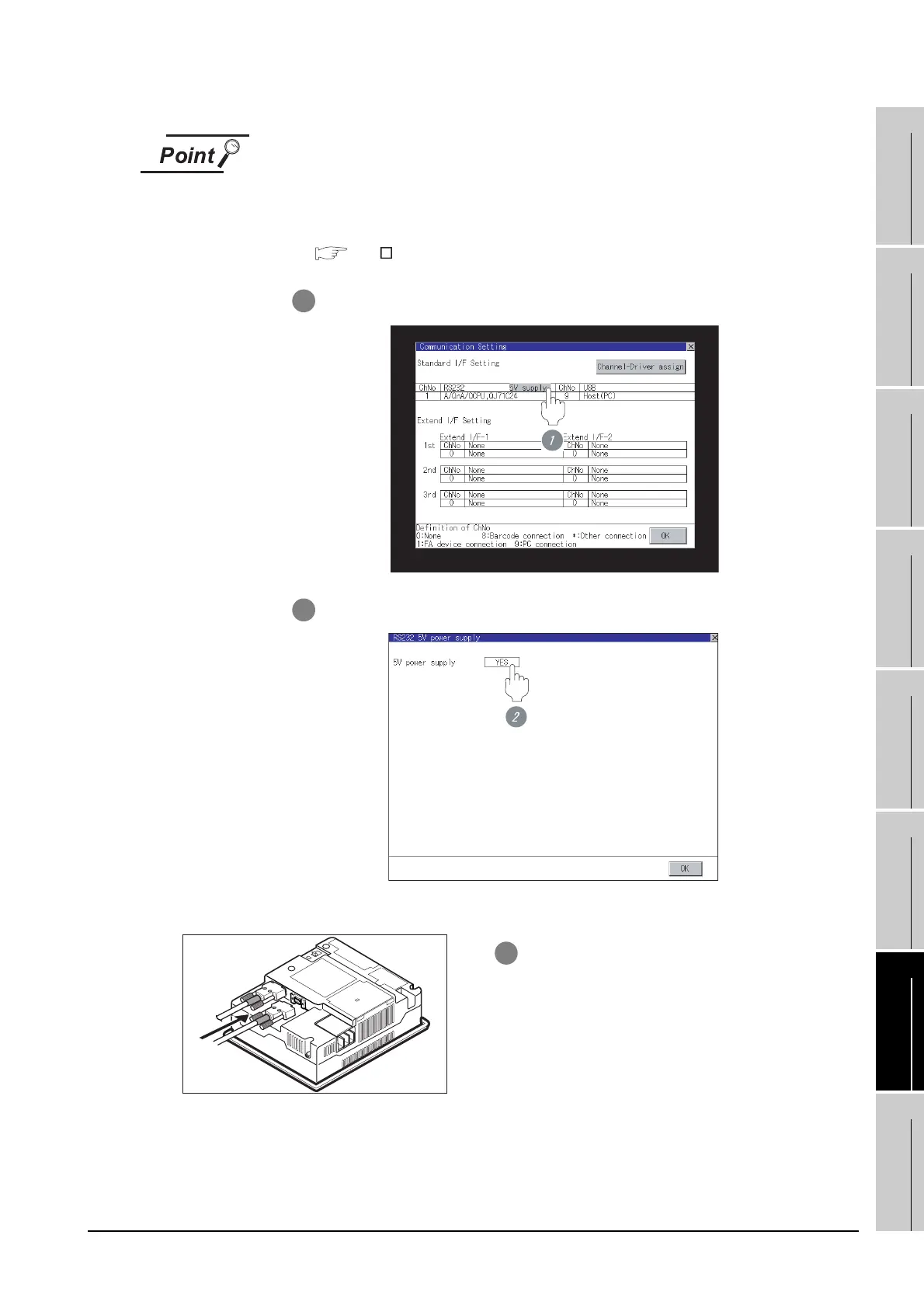

When using the RS-422 conversion unit
On "Communication settings" on the utility, make setting so that 5V DC power is
supplied to the RS-422 conversion unit from the RS-232 interface on the GOT.
For details on the utility, refer to the following manual:
GT User's Manual
(b) In the case of the GT11
1 Touch [5V supply].
2 Set [5V power supply] to "YES".
1 Connect the RS-422 cable to the RS-422
interface on the GOT.
To Next Page
